Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
RW72
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
>=1 Sets
Price :
Negotiable
Certification :
CE
Structure :
Piston-sensed Configuraton
Maximum inlet pressure :
6000 psig
Proof pressure :
1.5 times of maximum rated presure
Working temperature :
-40° F ~+165° F(-40°C+74°C)
Leakage rate :
2*10-8 atm cc/sec He
Cv :
0.15
Body material :
316L
Seat :
Vespel
Port :
SHENZHEN
Description
Product Description

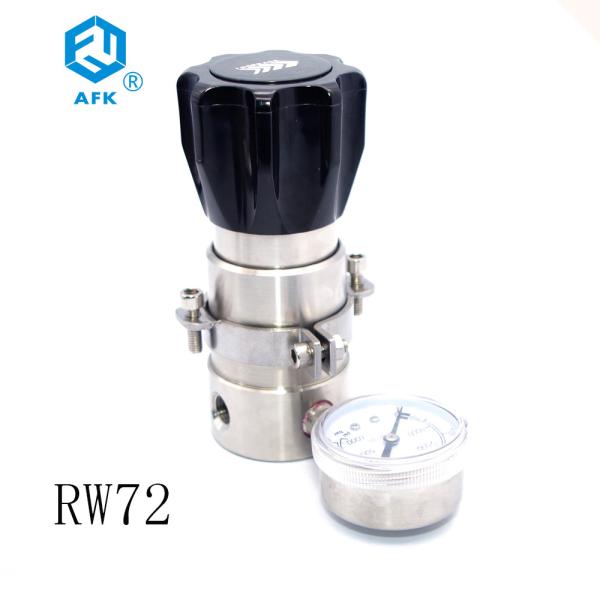

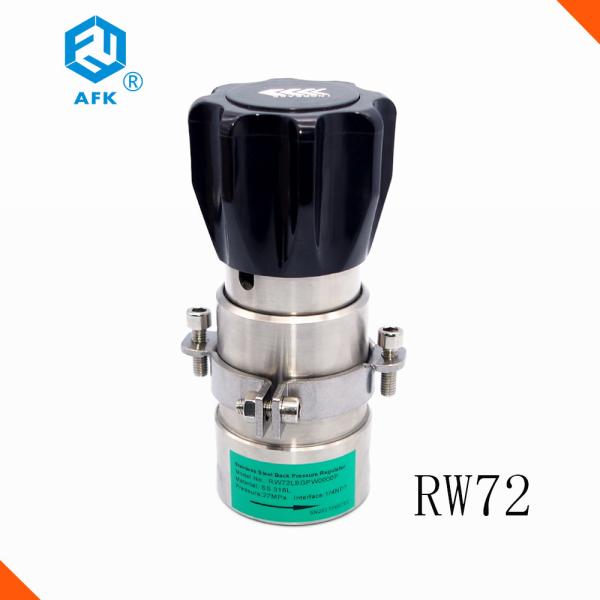

RW72 series back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.

Technical parameters
Maximum Inlet Pressure
6000psi
Proof pressure
1.5times maximum inlet pressure
Safety test pressure
1.5 times maximum inlet pressure
Operating Temperature
-40°F to 165°F / -40°c to 74°c
Leakage Rate Against Atmosphere
2*10-8atm cc/sec he
Cv value
0.15

Material of Parts
Body

316L
Seat
Vespel
Piston
316L
O-ring
Viton

Ordering Information

Series
Body material
Inlet pressure
G
Inlet connection
Outlet connection
RW72
A
D
G
02
02
A
L:0-500psig
W:none
01:1/4NPT (F)
01:1/4NPT (F)
B
K:0-800psig
P:PSI/bar
02:3/8NPT (F)
02:3/8NPT (F)
I:10-1500psig
G:MPa
04:1/2NPT (F)
04:1/2NPT (F)
H:15-2500psig
05:1/2NPT(M)
05:1/2NPT(M)
G:25-4000psig
12:3/8LOK
12:3/8LOK
Q:50-6000psig
13:1/2LOK
13:1/2LOK
M:200-10000psig

Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He

Nitrogen Gas Back Pressure Regulating Valve Leakage Rate 2*10-8 Atm Cc / Sec He
