High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
High Pressure Back Pressure Relief Valve 6000PSI For Supercritical Co2
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
RW72
Supply Ability :
2000 Piece/Pieces per Week
Packaging Details :

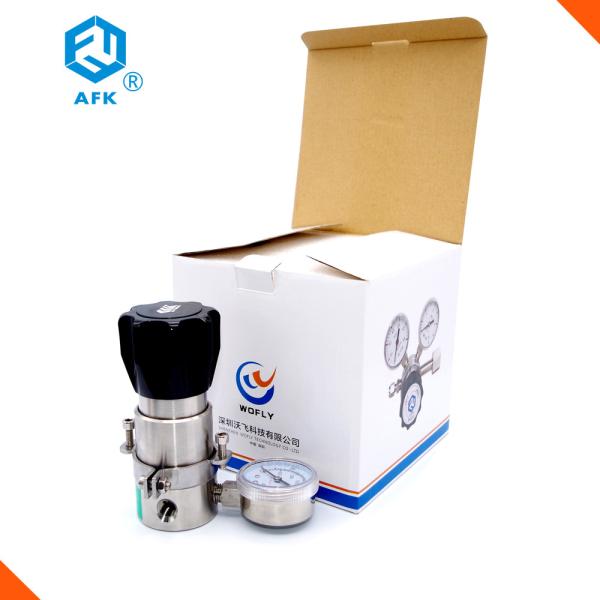

Each piece with a PP bag first, then put in a small box, outside is in carton.
MOQ :
1 - 9 Pieces
Price :
Negotiable
Material :
316L SS
Maximum inlet pressure :
6000PSI
Proof pressure :
1.5times maximum inlet pressure
Safety test pressure :
1.5 times maximum inlet pressure
Leakage Rate Against Atmosphere :
-40°F to 165°F / -40°c to 74°c
Cv value :
0.15
Application :
Gas and liquid
Warranty :
1 year
Port :
Shenzhen
Description
Product Description

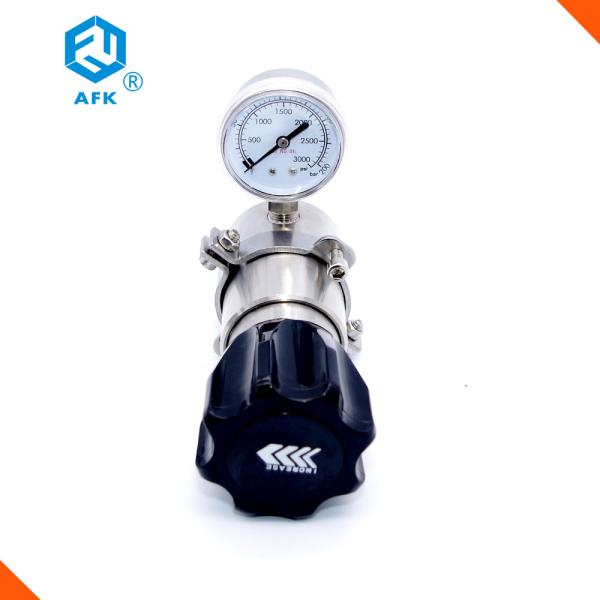

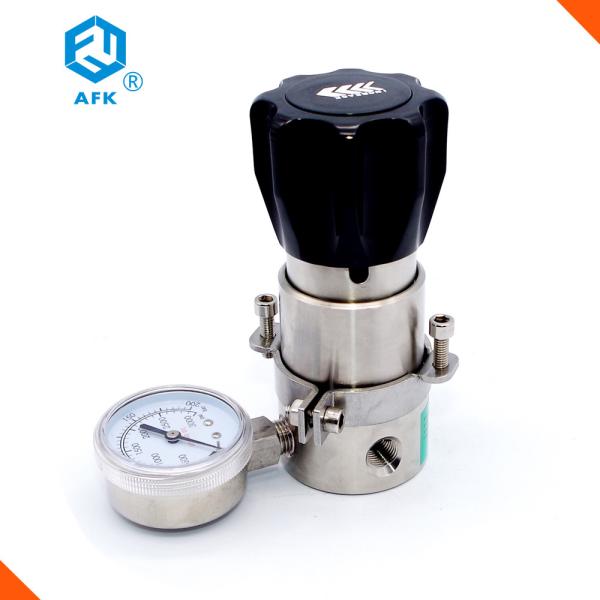

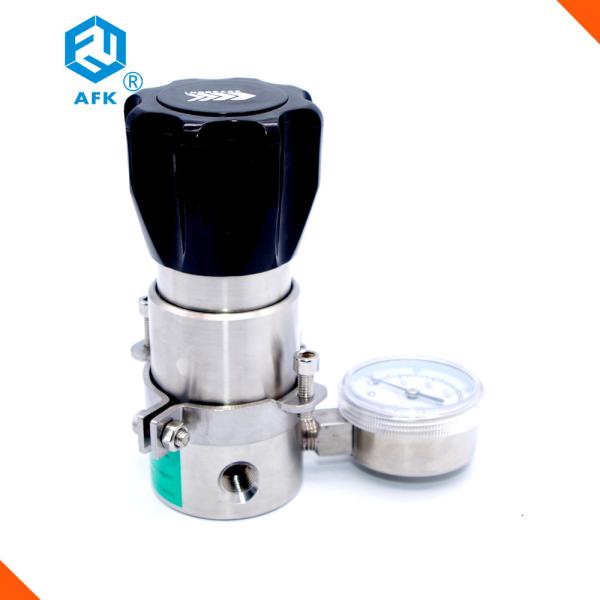

RW72 series back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.

Technical parameters
Maximum Inlet Pressure
6000psi
Proof pressure
1.5times maximum inlet pressure
Safety test pressure
1.5 times maximum inlet pressure
Operating Temperature
-40°F to 165°F / -40°c to 74°c
Leakage Rate Against Atmosphere
2*10-8atm cc/sec he
Cv value
0.15

Material of Parts
Body

316L
Seat
Vespel
Piston
316L
O-ring
Viton

Ordering Information

Series
Body material
Inlet pressure
G
Inlet connection
Outlet connection
RW72
A
D
G
02
02
A
L:0-500psig
W:none
01:1/4NPT (F)
01:1/4NPT (F)
B
K:0-800psig
P:PSI/bar
02:3/8NPT (F)
02:3/8NPT (F)
I:10-1500psig
G:MPa
04:1/2NPT (F)
04:1/2NPT (F)
H:15-2500psig
05:1/2NPT(M)
05:1/2NPT(M)
G:25-4000psig
12:3/8LOK
12:3/8LOK
Q:50-6000psig
13:1/2LOK
13:1/2LOK
M:200-10000psig
