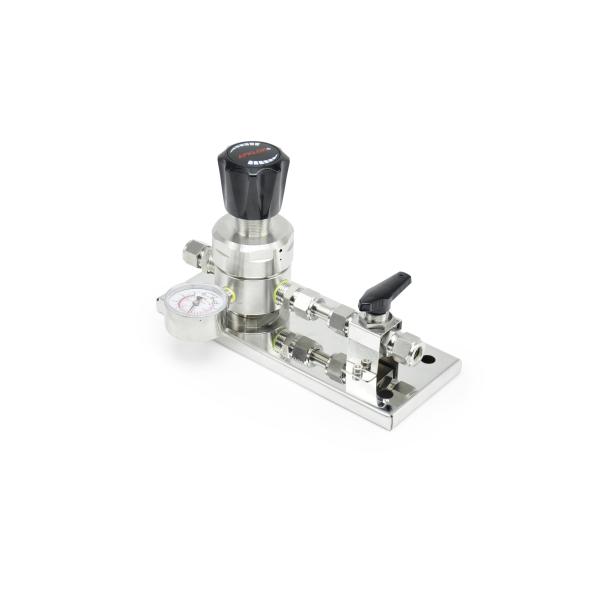

Single Gauge 1.6Mpa Stainless Steel Pressure Regulator With Panel Ball Valve

It is Applied to the gas pipeline terminal, easy to use the control gas flow size. Maximum input pressure up to 20.7Mpa (3000 psig), corrosion resistance, clean shop assembly test, and suitable for laboratory, gas analysis and otheihigh purity gas.

Pressure-Reducing Regulators

Pressure-reducing regulators control outlet pressure by balancing an adjustable spring force against the forces caused by inlet and outlet pressures. The spring force is adjusted by turning the stem/handle, which sets the desired outlet pressure. As inlet pressure decreases, the force balance changes. To compensate, outlet pressure will increase. This supplypressure effect (SPE) is a function of the design and type of regulator. If a regulator is subjected to fluctuating inlet pressure, and outlet pressure variations are not desirable, a two-stage regulator is available

Features of pressure regulator co2 gas

• Equipped R11 pressure regulator and high pressureball valve
• Pressure regulator and pipe through the pressure test and leakage test
• Wall installation, easy to use and safe
• 2" stainless steel pressure gauge, reading clearly

Materials of pressure regulator gas regulator

• Body: stainless steel
• Seat: PU,PTFE,PCTFE
• Inlet Connection: 1/4"tube fitting, 1/4"FSR,1/2"FSR
• Outlet Connection: 1/4" tube fitting , 1/4"FSR
• Body of Diaphragm Valve: stainless steel

Spec fications of regulator gas pressure

• Max.Inlet Pressure:3000,2200 psi
• Max. Outlet Pressure:25,50,100,150,250 psi
• Working Temperature:-40°C ~74°C(-40F~165°F)
• Flow Rate:see flow Curve Chart
• Pressure Regulator Leakage
• Rate:2 x 10-8atm.cc/sec He
• Cv:0.14

Ordering Information

Applicable Scenarios

Engineering case

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;

Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
