Specifications
Brand Name :
AFK
Model Number :
UT
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
Material :
Stainless Steel,316L,Stainless steel 304 or 316,Stainless Steel304 316L
Technics :
Forged
Medium :
Gas
Name :
Stainless Steel Tube Fittings
Warranty :
1 Year
Size :
1/2"
Application :
Oil,Water,Gas
Standard :
GB
Description

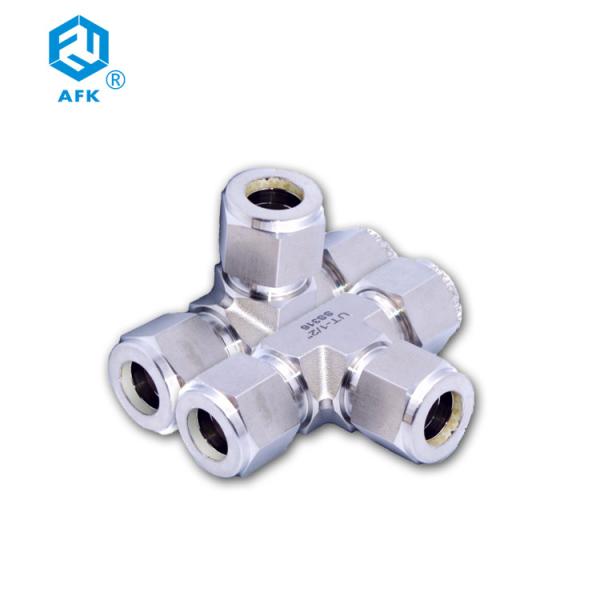

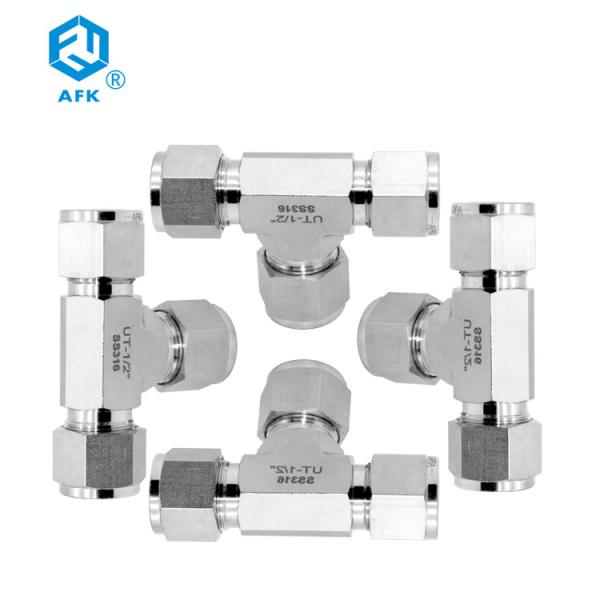

*Product Show

*Name: UT (Union Tee Fitting)

*Size: 1/2 inch

*Connection: Ferrule OD

*Pressure: 3000 Psi

*Material: Stainless Steel 316

GB SS316 Forged Equal Tee Fitting Ferrule OD Thread Gas Pipe Fittings

GB SS316 Forged Equal Tee Fitting Ferrule OD Thread Gas Pipe Fittings

Connects Fractional(Inch)Tube

Part No.
Tube OD
T
 Dimensions (mm)
E
Min.
 h H F I L
inch mm inch mm inch mm
UT-01 1/16 1.68 1.3 3/8 9.52 5/16 7.93 8.6 14.0 17.8
UT-02 1/8 3.17 2.3 3/8 9.52 7/16 11.11 12.7 15.7 22.4
UT-03 3/16 4.76 3,0 1/2 12.70 1/2 12.70 13.7 17.8 24.4
UT-04 1/4 6.35 4.8 1/2 12.70 9/16 14.28 15.2 19.6 26.9
UT-05 5/16 7.93 6.4 5/8 15.87 5/8 15.87 16.3 21.3 28.7
UT-06 3/8 9.52 7.1 5/8 15.87 11/16 17.46 16.8 23.1 30.5
UT-08 1/2 12.7 10.4 13/16 20.63 7/8 22.22 22.9 25.9 36.1
UT-10 5/8 15.87 12.7 15/16 23.81 1 25.40 24.4 28.7 38.8
UT-12 3/4 19.05 15.7 1-1/16 26.98 1-1/8 28.57 24.4 29.7 39.9
UT-14 7/8 22.22 18.3 1-3/16 30.16 1-1/4 31.75 25.9 34.5 44.7
UT-16 1 25.4 22.4 1-3/8 34.92 1-1/2 38.10 31.2 36.8 49.0
UT-20 1-1/4 31.75 27.7 1-11/16 42.86 1-7/8 47.63 41.1 44.5 66.5
UT-24 1-1/2 38.1 34.0 2 50.80 2-1/4 57.15 50.0 50.8 78.0
UT-32 2 50.8 46.0 2-3/4 . 69.85 3 76.20 67.6 69.8 107.2

Connects Metric Tube

Part No.
Tube OD
T
 Dimensions (mm)

E

Min.

 h H F I I1
mm inch mm
UT-M02 2 1.7 9.52 12.70 12.9 15.7 22.3
UT-M03 3 2.4 9.52 11.11 12.9 15.7 22.3
UT-M04 4 2.4 12.7 12.70 13.7 18.8 25.4
UT-M06 6 4.8 12.7 14.28 15.3 19.6 27.0
UT-M08 8 6.4 14.28 15.87 16.2 21.3 28.8
UT-M10 10 7.9 17.46 19.05 17.2 23.9 31.5
UT-M12 12 9.5 20.63 22.22 22.8 25.9 36.0
UT-M14 14 11.1 23.81 25.40 24.4 28.7 38.8
UT-M15 15 11.9 23.81 25.40 24.4 28.7 38.8
UT-M16 16 12.7 23.81 25.40 24.4 28.7 38.8
UT-M18 18 15.1 26.98 30.16 24.4 29.7 39.8
UT-M20 20 15.9 34.92 31.75 26.0 34.5 44.6
UT-M22 22 18.3 34.92 31.75 26.0 34.5 44.6
UT-M25 25 21.8 34.92 38.10 31.3 36.8 49.1
UT-M28 28 21.8 42.86 47.63 36.6 43.2 64.0
UT-M30 30 26.2 47.63 50.80 39.6 48.3 69.9
UT-M32 32 28.6 47.63 50.80 42.0 49.3 72.3
UT-M38 38 33.7 55.56 57.15 49.4 56.4 84.0
