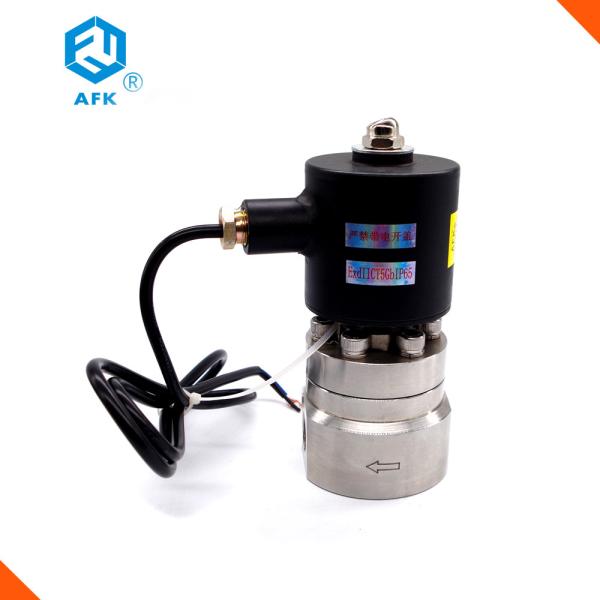

Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2 Pilot Operating
Specifications
Brand Name :
AFK
Model Number :
ZCF-15BGW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
Material :
Stainless Steel,Brass
Port size :
1/8" 1/4" 3/8" 1/2"
Pressure :
High Pressure
Media :
Gas
Application :
General
Name :
High Pressure Solenoid Valve
Description

Application

It is widely used in aerospace, shipbuilding, petrochemical, industrial

furnaces, boilers, water supply and drainage, heating and air conditioning, food, medical equipment, cleaning equipment, landscape irrigation, fountain, water piping system.

Product Features

Stainless steel piston, sensitive action, long service life of 100W times; autocratic coil is not easy to burn; zero leakage; a wide range of applicable.

Working Principle

A: The normally closed type: when the coil is energized, the main spool by medium pressure valve closed coil is de-energized, open.

B. The normally open type: when the coil is energized, the valve is closed; the coil is cut off, and the main valve core is opened by the medium pressure differential force.

Manual control

When the coil is not energized or burnt out, the valve can be opened manually, But manual In the opening state, the valve cannot automatic control.

Products Show
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2

High pressure Solenoid Valve

1.Stainless steel piston.

2. Sensitive action.

3. Long service life of 100W times.

4. Autocratic coil is not easy to burn.

5. Zero leakage.

6. A wide range of applicable.

Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2

Explosion-proof Solenoid Valve

A: The normally closed type: when the coil is energized, the main spool by medium pressure valve closed coil is de-energized, open.

B. The normally open type: when the coil is energized, the valve is closed; the coil is cut off, and the main valve core is opened by the medium pressure differential force.

Product Description

It is widely used in aerospace, shipbuilding, petrochemical, industrial furnaces, boilers, water supply and drainage, heating and air conditioning, food, medical equipment, cleaning equipment, landscape irrigation, fountain, water piping system.

Product mode
ZCF-15BGW
Operation
Pilot operating
Control Type
Normally opened/ normally Closed
Applicable medium
gas,oil,water,Methane and hydrogen sulfide
Working temperature
-200℃~0℃, -60℃~100℃, 0℃~80℃, -20℃~200℃, 0℃~200℃ (optional)
performance
Waterproof, explosion-proof, anti-corrosion,Protective
Working voltage
DC12V, DC24V, DC36V, DC127V, DC220V, AC36V, AC110V, AC220V, AC380V
Connection Type
Wiring Block type, lead type, socket DIN coil
Additional function
With signal feedback, with a manual control, with non-return function
Size Ranges
G1/2", G3/4", G1", G1-1/4", G1-1/2", G2" (NPT is also available)
Body material
stainless steel, the cast steel body
Working Range
0-200Mpa
End connection
thread or Flange connection
Dimension
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2
DN D

L

(mm)

L1

(mm)

H

(mm)

H1

(mm)

B

(mm)

L

(mm)

L1

(mm)

H

(mm)

H1

(mm)

B

(mm)
15 G1/2 70 14 125 14 56
20 G3/4 85 15 150 16 56 100 16 145 25 70
25 G1 95 15 150 23 62 100 16 145 25 70
32 G1 1/4 115 18 165 28 75 120 20 160 33 85
40 G1 1/2 130 20 180 33 85 143 24 175 37 95
50 G2 145 20 195 41 100 155 24 185 44 125
materia Stainless steel Cast iron
DN L D D1 D2 D3 H L D D1 D2 D3 H
15 100 Ø65 4-Ø14 Ø46 Ø89 135
20 110 Ø75 4-Ø14 Ø56 Ø99 140 130 Ø85 4-Ø14 Ø65 Ø110 100
25 125 Ø85 4-Ø14 Ø65 Ø110 145 130 Ø85 4-Ø14 Ø65 Ø110 100
32 140 Ø100 4-Ø16 Ø76 Ø137 155 150 Ø100 4-Ø17 Ø76 Ø135 120
50 155 Ø125 4-Ø16 Ø100 Ø152 170 175 Ø125 4-Ø17 Ø100 Ø155 145
65 200 Ø145 4-Ø18 Ø118 Ø179 195 235 Ø145 4-Ø17 Ø120 Ø180 170
80 240 Ø160 8-Ø18 Ø132 Ø194 220 270 Ø160 8-Ø17 Ø135 Ø195 180
100 280 Ø180 8-Ø18 Ø156 Ø223 240 300 Ø180 8-Ø17 Ø185 Ø215 190
125 325 Ø210 8-Ø18 Ø184 Ø248 250 380 Ø210 8-Ø18 Ø185 Ø245 220
150 460 Ø240 8-Ø22 Ø211 Ø280 330 440 Ø240 8-Ø22 Ø210 Ø280 280
200 490 Ø295 12-Ø22 Ø266 Ø340 350 580 Ø295 8-Ø22 Ø265 Ø335 340
material Stainless steel Cast iron

Our Certifications
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2
Waterproof SS 200Mpa High Pressure Solenoid Valve 1/2
