High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
Specifications
Brand Name :
AFK
Model Number :
R12
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
229USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Material :
Stainless Steel
Warranty :
1 Year
Color :
Silver
Key words :
Gas afk Pressure Regulator
CV :
1.1
Pressure :
3500PSI
Max Inlet Pressure :
500,3000PSI
Outlet Pressure :
25,50,100,125,250psi
inlet connects :
1/2"NPT
Outlet connects :
1/2"NPT
Description

R12 Double Gauge Stainless Steel 316 High Pressure Nitrogen Oxygen Argon Ammonia Gas afk Pressure Regulator 3500psi

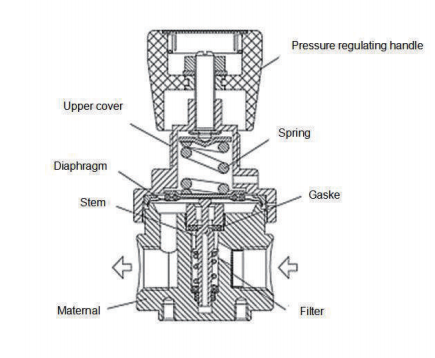

R12 Series stainless steel pressure reducers , single-stage diaphragm construction , stainless steel diaphragm pressure transmission , stable output pressure , applied to medium flow gas system.

Design Features

1 single-stage pressure-reducing structure
2 metal-to-metal diaphragm seal
3 body thread:1/2 " NPT(F)
4 pressure gauge , safety valce interdace 1/4" NPT(F)
5 filter element installed internally
6 panel mounting and wall mounting available

High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers Material
1 bady 316L,brass
2 bonnet 316L,brass
3 diaphragm 316L
4 strainer 316L(μm)
5 seat PCTFE,PTFE
6 spring 316L
7 valve stem 316L

High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers

Ordering information

R12 L B D F G 02 00 P
Item

Body

Materia

Body

Hole

Inlet

pressure

Outlet

pressure

Pressure

gauge

Inlet

size

Outlet

size

 mark
R12 L:316 A D:3000psi G:0~250psig G:MPa gauge 02:3/8”NPT(F) 02:3/8”NPT(F) P:Panel mointing
B:Brass B F:500psi H::0~125psig 03:3/8”NPT(M) 03:3/8”NPT(M) R:With relief valve
D I::0~100psig P:Psig/bar gauge 04:1/2”NPT(F) 04:1/2”NPT(F)
G K::0~50psig 05:1/2”NPT(M) 05:1/2”NPT(M)
J L::0~25psig W:No gauge 12:3/8”OD 12:3/8”OD
M 13:1/2”OD 13:1/2”OD
Other type is available Other type is available

High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers

FRQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
