200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
Specifications
Brand Name :
AFK
Model Number :
WL400
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PC
Delivery Time :
30Day
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Material :
Stainless Steel,316
Warranty :
1 Year
Application :
Industry Equipment
Color :
Silver
CV :
0.14
Max inlet pressure :
2200,3000psi
Max outlet pressure :
25,50,100,150,250psi
Working Temperature :
-40℃~74℃（40℉~165℉）
Description

AFK Pressure Regulator with 63mm Manometer 200 Bar Pressure Gauge Stainless Steel Argon Gas Cylinder Regulator Industria

WL400 is suitable for secondary pipeline, suitable for controlling gas flow. Max. inlet pressure 20.7Mpa (300PSI), resistance corrosive, clean workshop test, it is suitable for Laboratory, gas anysis etc high purity gas.

Spec Fications

1 Max Inlet Pressure 3000,2200psi
2 Max Outlet Pressure 25,50,100,150,250psi
3 Working Temperature -40℃~74℃(-40℉~165℉)
4 Flow Rate see flow curve chart
5 pressure regulator leakage rate 2x10-8atm.cc/sec He
6 Cv 0.14

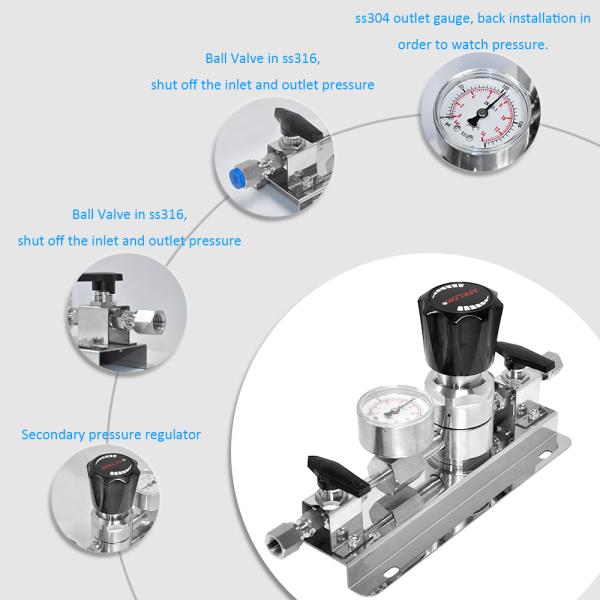

Main Features
1 Equipped R11 pressure regulator and high pressure ball valve.
2 Pipe through the pressure test and leakage test.
3 Wall installation,easy to use and safe.
4 2″ stainless steel pressure gauge, reading clearly

200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer

Materials of Construction

1 Body stainlees steel
2 Seat PU,PTFE,PCTFE
3 Inlet Connection 1/4"tube fitting,1/4FSR,1/2:FSR
4 Outlet Connection 1/4"tube,1/4"FSR
5 Body of Diaphragm Valve stainless steel

Selection Table
WL4 2 1 5 H S 1 N2
Series Inlet connection Outlet connection Body Inlet pressure outlet pressure Gauge N2
WL4 1:6mm barb fitting 1: 1/4" welding s: ss316 H:1000PSI 1:25PSI 1:Mpa O2
2:1/4"O.D. 2: 3/8"welding C:nickel plated brass M:500psi 2:50PSI 2:bar/PSI H2
3:8mm barb fitting 5.1/2" welding L:300PSI 3:100PSI 3:PSI/kpa C2H2
4:3/8"O.D. 7: 1/4"O.D. 4:150PSI CH4
5:10mm barb fitting 8:3/8"O.D. 5:250PSI AR
6:1/2"O.D. 9: 1/2"O.D. HE
Air

200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer

200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
