Specifications
Brand Name :
AFK
Model Number :
R11-VCR
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Packaging Details :
Special packaging
Product name :
High Flow Pressure Regulator with 1/4inch VCR fitting
Application :
Laboratory, semiconductor, industrial, etc.
Suitable gas :
Co2/Nitrogen/Helium/Oxygen/air
Working temp :
-40℉~+446℉(-40℃~+230℃)
Size :
1/4 Inch VCR
After-sales service provided :
Online support
Condition :
New
Material :
Stainless Steel,316
Warranty :
1 Year
Description

Product Description of Adjusting Propane Regulator High Flow Pressure Regulator with 1/4inch VCR fitting

Technical Data of Adjusting Propane Regulator High Flow Pressure Regulator with 1/4inch VCR fitting
Max Inlet Pressure:600psig, 3500psig
Outlet Pressure Range:0~30, 0~60, 0~100, 0~150, 0~250, 0~500
Component Material:
Seat:PCTFE
Diaphragm:Hastelloy
Filter mesh:316L

Working Temperature:-40℃～+74℃(-40℉～+165℉)
Leak Rate (Helium):
Internal: ≤1×10 mbar l/s
External:≤1×10 mbar l/s

Flow Coefficient (Cv):
3500psig Inltet:Cv=0.09
600psig Inltet:Cv=0.20

Body Thread:
Inlet port:1/4NPT (EP 1 / 4 VCR optional)
Outlet port:1/4NPT (EP 1 / 4 VCR optional)
Pressure gauge port:1/4NPT (EP 1 / 4 VCR optional)

Features of Gas Pressure Regulator VCR

1 Single-stage design The pressure regulator is designed to reduce the pressure of high-pressure gases to a lower, more usable pressure in a single step.
2 Inlet and outlet connectors The pressure regulator is connected to a 1/4 VCR connector for both the inlet and outlet, which provides a secure and leak-tight connection.
3 Maximum inlet pressure The maximum inlet pressure of the pressure regulator is 3500psi, which means it can be used with high-pressure gas sources up to this limit.
4 Outlet pressure range The pressure regulator is capable of regulating the outlet pressure up to 100psi, which means it can be used to regulate the pressure of gases down to this level.
5 Pressure adjustment The pressure regulator will typically include a pressure adjustment knob or screw that allows the user to adjust the outlet pressure to the desired level.
6 High accuracy The pressure regulator can provide a high degree of accuracy in pressure regulation, typically with a tolerance of +/- 5%.
7 Compact size The pressure regulator is typically compact in size, making it easy to install and transport.
8 Durable construction The pressure regulator is typically made of durable materials, such as brass or stainless steel, which can withstand high pressures and resist corrosion.
9 Safety features The pressure regulator may include safety features such as a pressure relief valve, which automatically opens if the pressure exceeds a certain level, and a pressure gauge, which allows the user to monitor the pressure levels.
10 Flow rate The flow rate of the pressure regulator will depend on the specific model and size, but typical flow rates range from 5 to 100 cubic feet per hour (CFH).
11 Port configuration The pressure regulator is connected to a 1/4 VCR connector for both the inlet and outlet, which provides a secure and leak-tight connection.
12 Application Single-stage pressure regulators with a 1/4 VCR connector are commonly used in a variety of industrial and laboratory applications where precise and stable pressure control is required, such as in gas chromatography, mass spectrometry, and other gas-related processes.

SS316 Adjusting Propane Regulator High Flow Pressure Regulator With 1/4inch VCR Fitting

Specification of Adjusting Propane Regulator High Flow Pressure Regulator with 1/4inch VCR fitting

Ordering Number Description WR11-6L-35-100-D 00 M M 00-Z-O2
6L 35 100 D 00 M M 00 Z O2
Body Material Inlet Pressure P1 Outlet Pressure Range P2 Porting 00:1/4″ Female NPT Optional Feature Product Grade
6L 316L SS 35:3500PSI 30:0~30psi A:2 ports 01:1/4″ Male NPT None Standard(BA)
HC Hastelloy C-276 06:600PSI 60:0~60psi B:3 ports 10:1/4″ OD Z With a panel nut O2:Oxygen clea-ning
100:0~100psi D:4 ports 11:3/8″ OD
150:0~150psi Other ports are available upon request 20:1/4″ OD diaphragm valve
250:0~250psi 21:3/8″ OD diaphragm valve
500:0~500psi FR4:1 / 4 “female VCR
RMR 4 1 / 4 “male VCR
M:With gauge (psi/MPa)
C_ CGA(USA) NO.
DIN_DIN (DEU) NO.
Refer to the manual for cylinder connections.Other connections are available upon request.

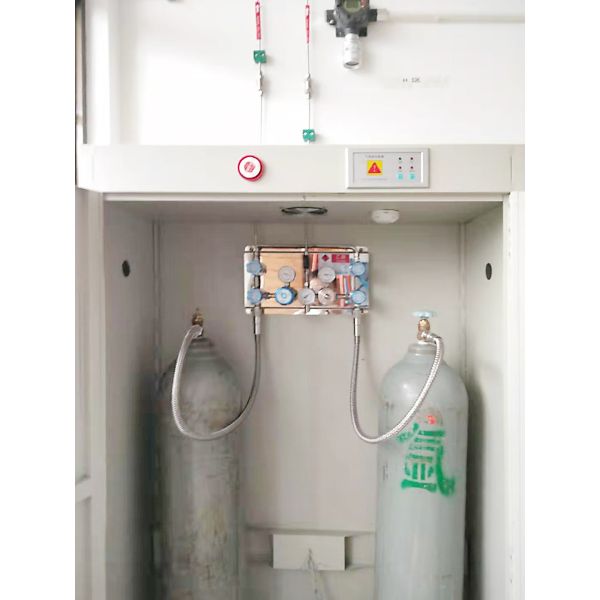

Application

Ltd. is a high-tech enterprise specializing in gas application system engineering: ultra-high purity electronic special gas system, laboratory gas system, bulk gas (liquid) system, industrial centralized gas supply system, special process gas secondary piping system, chemical delivery system, pure water system, providing technical consultation, overall planning, system design, selected equipment, prefabricated components, project site installation and construction, overall system The project covers semiconductor, integrated circuit, flat panel display, optoelectronic, automotive, new energy, nano, optical fiber, microelectronics, petrochemical, biomedical, various laboratories, research institutes, standard testing and other high-tech industries to provide customers with a full set of high-purity media delivery system solutions, and gradually become a leading industry We have become a leading system supplier in the industry.

SS316 Adjusting Propane Regulator High Flow Pressure Regulator With 1/4inch VCR Fitting SS316 Adjusting Propane Regulator High Flow Pressure Regulator With 1/4inch VCR Fitting
SS316 Adjusting Propane Regulator High Flow Pressure Regulator With 1/4inch VCR Fitting SS316 Adjusting Propane Regulator High Flow Pressure Regulator With 1/4inch VCR Fitting

SS316 Adjusting Propane Regulator High Flow Pressure Regulator With 1/4inch VCR Fitting

FAQ

Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q2. Do you have any MOQ limit ?

A: Low MOQ 1 pic.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.

Q4. How to proceed an order ?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
