4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge
Specifications
Brand Name :
AFK
Model Number :
R31
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PC
Packaging Details :
WOODEN
After-sales service provided :
Online support
Material :
Stainless Steel,316
Warranty :
1 Year
Application :
Industry Equipment
Color :
Silver
Working pressure :
4000psi
outlet pressure :
60psi
body holes :
6
Description

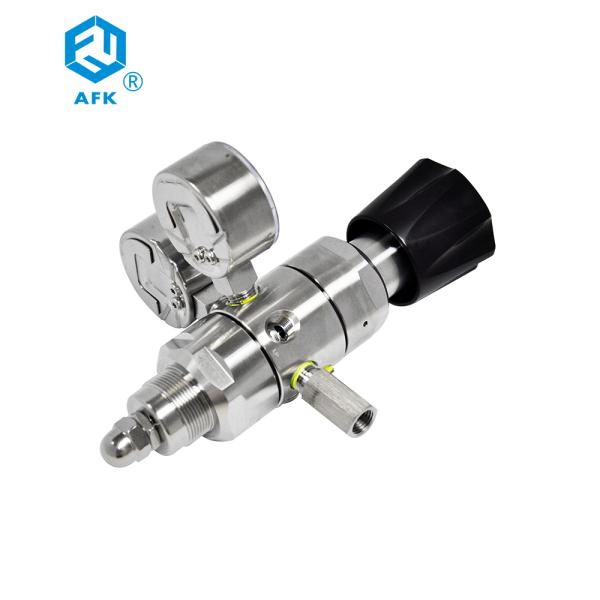

The main accessories of the product in the main drawing: two pressure gauges, 4000psi air inlet and 60psi air outlet, the air inlet and outlet holes are 1/4npt internal threads, that is, without joints, the inclined hole is equipped with a pressure relief valve, and the last hole is blocked with plugs

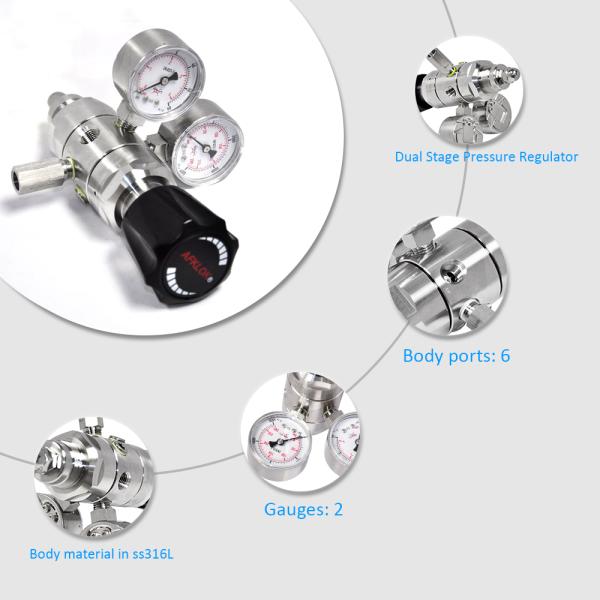

R31 series stainless steel pressure reducer, double stage diaphragm pressure reducing structure, stable output pressure, used in high purity gas, standard gas, corrosive gas, etc.

DESIGN FEATURES

1. Five hole designof the body

2. Double-stage pressure-reducing structure

3. Metal-to-meta diaphragm seal

4. Body thread: input and output connection 1 / 4NPT (F)

5. Easy to clean internal structure

6. Filter element installed internally

7. Panel mounting and wall mounting available

8.Optional outlet:needle valve,diaphragm valve

MATERIAL

1 Body 316L,Brass
2 Bonnet 316L,Brass
3 Diaphragm 316L
4 Strainer 316L(10um)
5 Seat PCTFE,PTFE,Veapel
6 Spring 316L
7 Stem 316L

4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge

4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge

4000psi Hydrogen Regulator High Pressure Gas With Two Pressure Gauge

Ordering Information

R31 L B G G 00 00 02 P
Item Body Materia

Body

Hole

Inlet

pressure

Outlet

pressure

Pressure

gauge

 Inlet size Outlet size Options
R31 L:316 M D:3000psi G:0-250psig G:MPa gauge 00:1/4 NPT(F) 00:1/4 NPT(F) P:panel mounting
B:Brass Q F:500psi I:0_100psig P:Psig/bar gauge 01:1/4 NPT(M) 01:1/4 NPT(M) R:With relief valve
K:0-50psig W:No gauge 23:CGA330 10:1/8 OD N:With needle valve
L:0-25psig 24:CGA350 11:1/4 OD D:With diaphragm valve
Q:30 Hg Vac-30psig 27:CGA580 12:3/8OD
S:30 Hg Vac-60psig 28:CGA660 15:6mm OD
T:30 Hg Vac-100psig 30:CGA590 16:8mm OD
U:30 Hg Vac-200psig 52:G5/8-RH(F) 74:M8X1-RH(M)
63:W21.8-14H(F)
64:W21.8-14LH(F)

FAQ

Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q2. Do you have any MOQ limit ?

A: Low MOQ 1 pic.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.

Q4. How to proceed an order ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.
