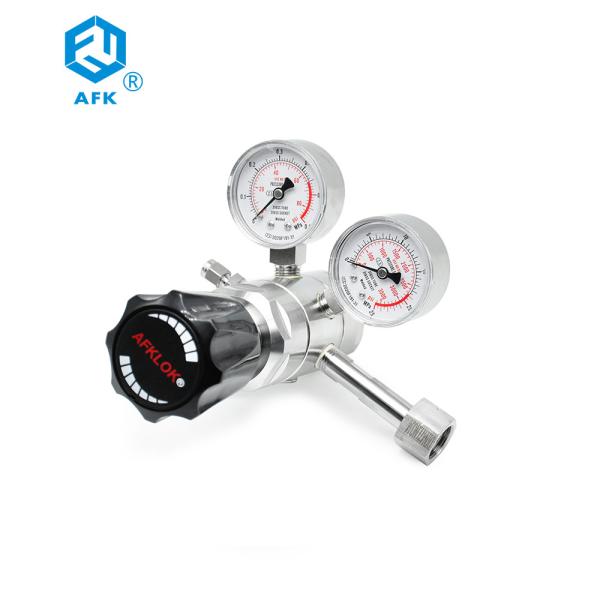

AFK Stainless Steel High Pressure Cylinder Argon co2 Carbon Dioxide Gas Pressure Regulator Valve 25Mpa

Product Description of co2 carbon dioxide gas pressure regulator

Features of co2 carbon dioxide gas pressure regulator

1. Bipolar diaphragm structure

2. The corrugated diaphragm design has excellent sensitivity and life

3. It can be used for corrosive and toxic gases

4. Install a 20 micron filter element at the inlet

5. Oxygen environment application options are available

Technical Data of co2 carbon dioxide gas pressure regulator

1. Maximum inlet pressure: 3000psi or 4500psi

2. Outlet pressure range: 0-30,0-60,0-100,0-150,0-250

3. Material of internal components:

Valve seat: PCTFE

Diaphragm: Hastelloy

Filter element: 316L

4. Working temperature: - 40 ℃ ~ + 74 ℃ (- 40 ℉ ~ + 165 ℉)

5. Leakage rate (helium):

Internal: ≤ 1x10-7 mbar L / S

External: ≤ 1x10-9 mbar L / S

6. Flow coefficient (CV): 0.05

7. Parent port:

Inlet: 1 / 4NPT

Outlet: 1 / 4NPT

Pressure gauge port: 1 / 4NPT

DESIGN FEATURES of co2 carbon dioxide gas pressure regulator

1. Five hole designof the body

2. Double-stage pressure-reducing structure

3. Metal-to-meta diaphragm seal

4. Body thread: input and output connection 1 / 4NPT (F)

5. Easy to clean internal structure

6. Filter element installed internally

7. Panel mounting and wall mounting available

8.Optional outlet:needle valve,diaphragm valve

Ordering Information of co2 carbon dioxide gas pressure regulator

FAQ

Q. Are you manufacturer?

A. Yes, we are manufacturer.

Q.What is lead time?

A.3-5days. 7-10 days for 100pcs

Q. How do I order?

A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours

Q. Do you have any certificates?

A. We have CE certificate.

Q. What materials do you have?

A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.

Q. What is maximum inlet pressure?

A.3000psi (about 206bar)

Q. How do I confirm inlet connnection for cylidner?

A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also

available e.g CGA540, CGA870 etc.

Q. How many types for connecting cylinder?

A. Down way and side way. (you can choose it)

Q. What is product warranty?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
