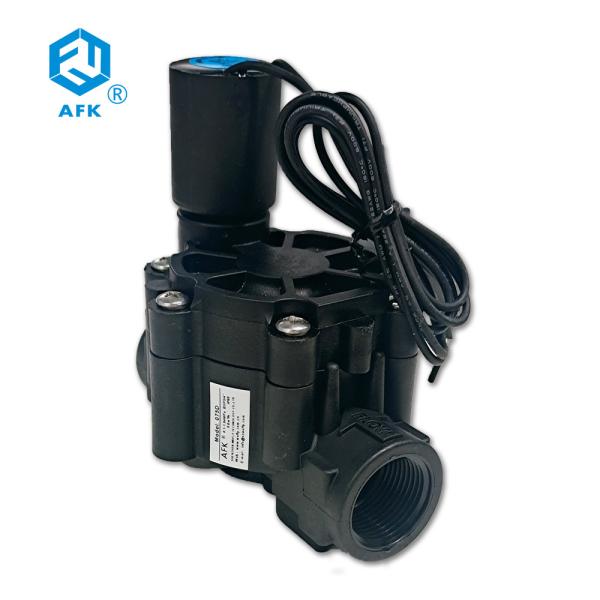

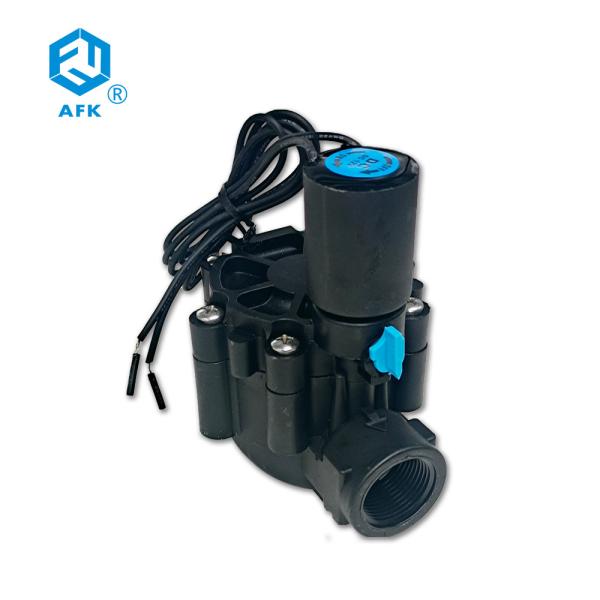

075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture
075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture
075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture
075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture
Specifications
Brand Name :
AFK
Model Number :
075D
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
Pressure :
Low Pressure
Material :
Plastic
Power :
Solenoid
Port size :
3/4",1"
Temperature of media :
≤53℃ ，≤80℃
Media :
Water
Application :
irrigation
Standard or nonstandard :
Standard
Product name :
Water Solenoid Valve
Voltage :
AC220V
Working pressure :
0.1-1.0mpa
Seal :
NBR,EPDM
Description
item
value
Warranty
1 years
Type
SOLENOID VALVES
Certification
CE
Customized support
OEM, ODM
Place of Origin
China
Guangdong
Brand Name
AFK
Model Number
075D
Application
General
Temperature of Media
Low Temperature, Medium Temperature, Normal Temperature
Power
Solenoid
Media
Water
Port Size
3/4" , 1"
Structure
Gate
Product name
075D Irrigation Solenoid Valve
Material
nylon
Connection
Male Thread ,BSP ,NPT
Standard or Nonstandard
Standard
Flow
075D , 5.0m3/h
Pressure
0.1-1.0MPa
Working Temperature
≤53℃ ,≤80℃
Diameter
DN20 , DN25
medium
Water
coil
AC220V , AC110 , AC24V , DC24V , DC12V , DC Latching

Features of Irrigation Water Solenoid Valve

1. Pilot diaphragm structure, nylon valve body material
2. Double filtration to prevent electromagnetic core blockage
3. Totally enclosed electromagnetic coil, waterproof
4. It has slow closing function to prevent water hammer from damaging the system

Material of Irrigation Water Solenoid Valve

Valve body Nylon
Seals NBR / EPDM
Moving iron core 430F
Static core 430F
Spring SUS304
Magnetic separation ring red copper

Scope of application
At present, it is one of the most widely used solenoid valves in garden irrigation. It is used in large area lawn, stadium, agricultural factory dust removal and water treatment equipment.


075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture

075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture

tpye Size(mm)
lengih width height
075D 112 82 120
100D 112 83 120

Packing & Dilvery

075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture 075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture
