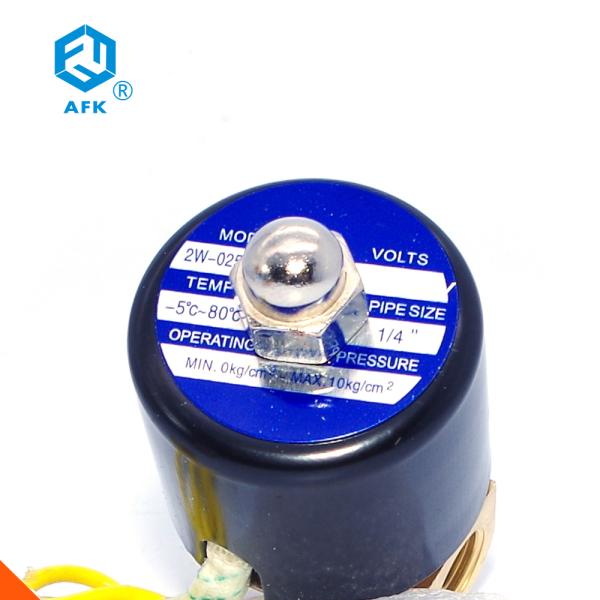

AFK Brass Water Solenoid Valve Air Water 1/4 Inch Normal Open NPT Male
AFK Brass Water Solenoid Valve Air Water 1/4 Inch Normal Open NPT Male
AFK Brass Water Solenoid Valve Air Water 1/4 Inch Normal Open NPT Male
AFK Brass Water Solenoid Valve Air Water 1/4 Inch Normal Open NPT Male
Specifications
Brand Name :
AFK
Model Number :
2W-08
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
Material :
Stainless Steel
Power :
Solenoid
Port size :
1/4
Media :
Water,Gas,air,oil
Application :
General
Standard or nonstandard :
Standard
Type :
Normal open
Voltage :
AC220V
Connection :
NPT,Male
Seal :
NBR
Description

Model NO.
2W-025-06
2W-025-08
2W-040-10
2W-160-10
2W-160-15
Pipe size
1/8'
1/4'
3/8'
1/2'
Orifice size
2.5mm
4mm
4mm
16mm
16mm
CV value
0.23
0.6
4.8
4.8
Fluid
Air water oil , the neutral gasliquid
Service voltage
AC380V AC220V AC110V AC24V DC24V DC12V ( allow ± 10% )
Operating
Direct acting
Type
Body Material
Brass
viscosity
Working pressure
( water, air ) : 0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
Material of seal
Standard : below 80℃ fluid temperature use NBR , below 120℃ use EPDM, below 150℃ use fluororubber

Model NO.
2W-200-20
2W-250-25
2W-320-32
2W-400-40
2W-500-50
Pipe size
3/4'
1'
1 1/4''
1 1/2''
2''
Orifice size
20mm
25mm
32mm
40mm
50mm
CV value
7.6
12
24
29
48
Fluid
Air water oil, the neutral gasliquid
Servise voltage
AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
Operating
Type
Normally Closed
Body Material
viscosity
( Below )20CST
Working pressure
( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
Material of seal
Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use fluororubber
