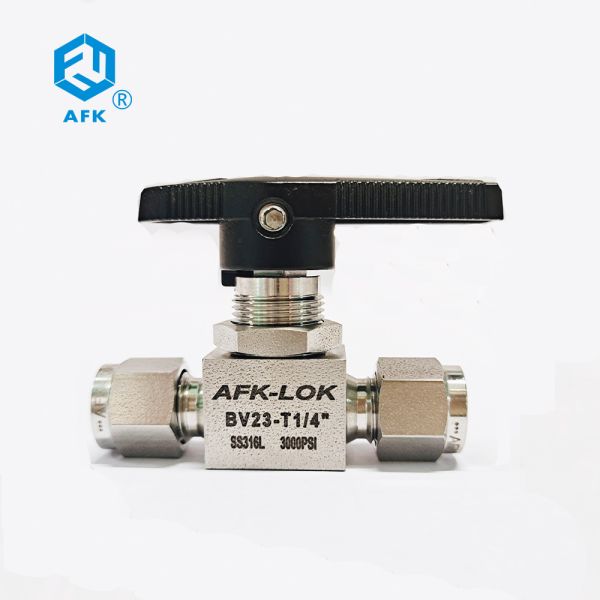

Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant
Specifications
Brand Name :
AFK
Model Number :
BV
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Packaging Details :
Expotrt Packing
Material :
Stainless Steel
Port size :
1/4 "
Standard or nonstandard :
Standard
Media :
Water,Gas,Oil
Application :
General
Color :
Silver
Valve type :
2 way
Description

AFK High Pressure 3000PSI Heat Resistant Manual Duplex Stainless Steel Ball Valve

Characteristics of Ball Valve
1 Black handle with arrow indicate flow direction as standard；metal handles for option
2 Packing bolt easy packing adjustment
3 Panel mountable
4 Bi-directional flow.micro-finished floating ball ensures leak proof shut off
5 End connection available with AFK tube end,BSPT or NPT female & male thread

Manual Duplex Stainless Steel Ball Valve High Pressure 3000PSI Heat Resistant

features of Ball Valve
1 On/off service ball valve with 2 way pattern
2 diverter service ball valve with 3way pattern
3 body material in stainless steel SS316/316L
4 Max.allowed working pressure:50kg,3000psig,6000psig
5 with Fluororubber O-ring
6 100% factory tested

Material of Construction
Item Part Description Qty. Material
1 Handles 1 Nylon
2 Handles set screw 1 Chrom-plated steel
3 Stem 1 SS316/316L
4 Packing bolt 1 SS316/316L
5 Gland packing 2 TFM1600
6 Stem o-ring 1 Fluororubber
7 panel nut 1 SS304
8 Body 1 CF8M
9 Ball 1 SS316/316L
10 Seat 2 TFM1600
11 Body O-ring 2 Fluororubber
12 end cap 2 SS316/316L

Ordering Information
C- 3 BVL- S6 02 A- 5K
classification product type valve type material size(fractional) size(metric) connection type Max.working pressure
C:valve 3:3PC BVL:castig ball valve S6:SS316 02:1/8" 6:6mm AFK:TUBE END 5k:50kg
04:1/4" 8:8mm MR:Male BSPT thread
06:3/8" 10:10mm FR:female BSPT thread
08:1/2" 12:12mm MN:Male NPT thread
012:3/4" 14:14mm MN:Female NPT thread
16:16mm
18:18mm
20:20mm
22:22mm
