AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas
AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas
AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas
AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas
Specifications
Brand Name :
AFK
Model Number :
CV
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Packaging Details :
Expotrt Packing
Application :
General
Material :
Stainless Steel
Pressure :
High Pressure
Temperature of media :
Medium Temperature
Media :
Gas,Air
Size :
1/8"~1/2"
Description

Characteristic of Stainless Steel Check Valve 6000psi

1

End connections avail be with AFK tube end.BSPT or NPT female & male thread for option
2 Variable fixed cracking pressre springs,range from 1 to 25psig ±5%
3 O-ring ensures leak proof shut off
4 Back stopped poppet minimizes spring stress

Features of Air Compressor Check Valve

1 Inline check valve stops reversed flow in orde to protect instrumentation
2 Body material in stainless steel SS316/316L cold drawn bar
3 Max.allowed working pressure 3000psi (206bar)
4 With viton O-ring
5 100% factory tested

AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas

AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas

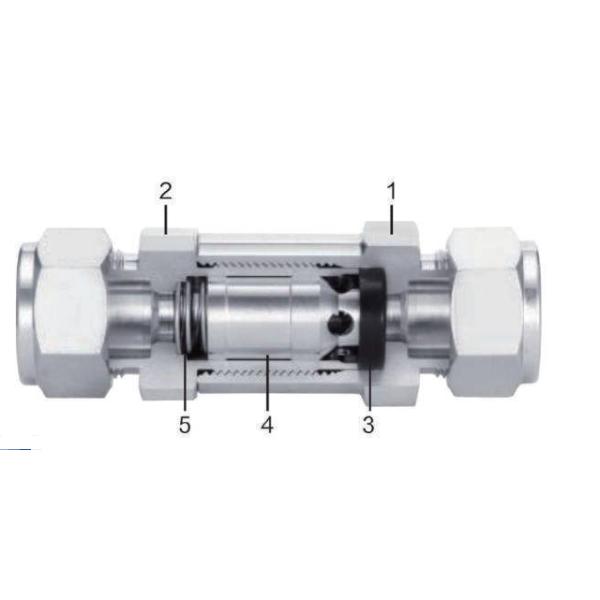

Material of Construction

item part description Qty material
1 inlet body 1 SS316/316L
2 outlet body 1 SS316/316L
3 seal ring 1 Fluororubber
4 poppet 1 SS316/316L
5 spring 1 SS304

nominal cracking pressure nominal cracking pressure
1 401
10 7-15
25 20-30

Ordering Information

C- CV- S6- 04 A- 1#
Classification Prouduct Name Material Size(Fractional) Size(Metric) Connection Type Cracking Pressure
Valve check valve S6:SS316 02:1/8" 6:6mm A:AFK tube end 1#:1PSIG
S6L:SS316L 04:1/4" 8:8mm MR:male BSPT thread 10#:10PSIG
06:3/8" 10:10mm FR:female BSPT thread 25#:25PSIG
08:1/2" 12:12mm MN:male NPT thread
12:3/4" FN:female NPT thread
16:1"
