Specifications
Brand Name :
AFK
Model Number :
R41
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
20Day
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Condition :
New
Weight :
1.5kg
Material :
Stainless Steel,316
Warranty :
1 Year
Application :
Industry Equipment
Color :
Silver
Pressure :
3000, 6000psig
CV :
0.06
Description
Features of R41 Stainless Steel Pressure Regulator
1 Single stage piston sensing structure
2 It has a larger outlet pressure regulation range
3 It can be used for standard gas and non corrosive gas
4 A 20 micron filter element is installed in the warehouse
5 Oxygen environment application options are available
Techn1ical Data Pressure Regulator
1 Maximum inlet pressure 4500 psig or 6000psig
2 Outlet pressure range 0 ~ 1500,0 ~ 3000
3 Internal element material Valve seat PCTFE
Piston 316L
O-ring FKM
Filter element 316L
4 Operating temperature - 26 ℃ ~ + 74 ℃ (- 15 ℉ ~ + 165 ℉)
5 Leakage rate (helium) Inside no visible bubbles
Outside no visible bubbles
6 Flow coefficient (CV) 0.09
7 Parent port Inlet 1 / 4NPT
Outlet 1 / 4NPT
Pressure gauge port 1 / 4NPT

AFK 2 Nitrogen Gas Pressure Regulator Stainless Air Oxygen Argon SUS316 PCTFE

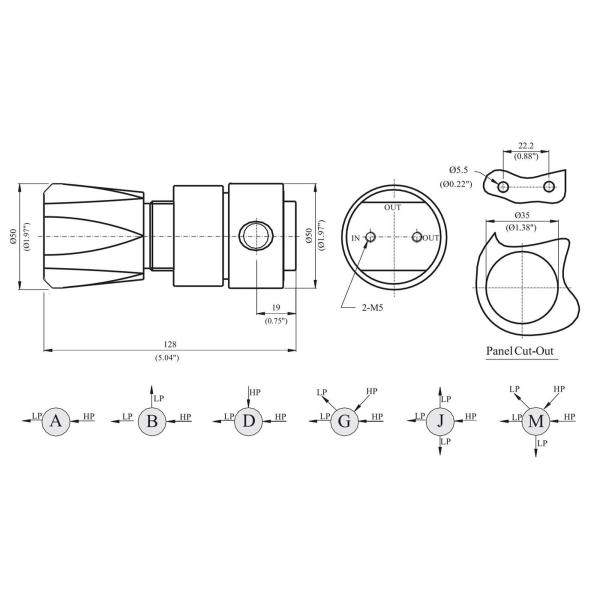

Product selection of Technical Parameter of nitrogen Gas Pressure Regulator
R41
 L B B D G 00 00 P
Item Body Materia Body Hole Inlet Pressure Outlet Pressure Pressure Gauge Inlet Size Outlet Size Options
R41 L:316 A B:6000psig D:0~3000psig G:MPa gauge 00:1/4"NPT(F) 00:1/4"NPT(F) P:Panel mounting
B:Brass B D:3000psig E:0~1500psig P:Psig/bar gauge 00:1/4"NPT(M) 00:1/4"NPT(M)
D F:0~500psig W:No gauge 10:1/8"OD 10:1/8"OD
G G:0~250psig 11:1/4"OD 11:1/4"OD
J 12:3/8"OD 12:3/8"OD
M 15:6mm"OD 15:6mm"OD
16:8mm"OD 16:8mm"OD
Other type is available Other type is available
