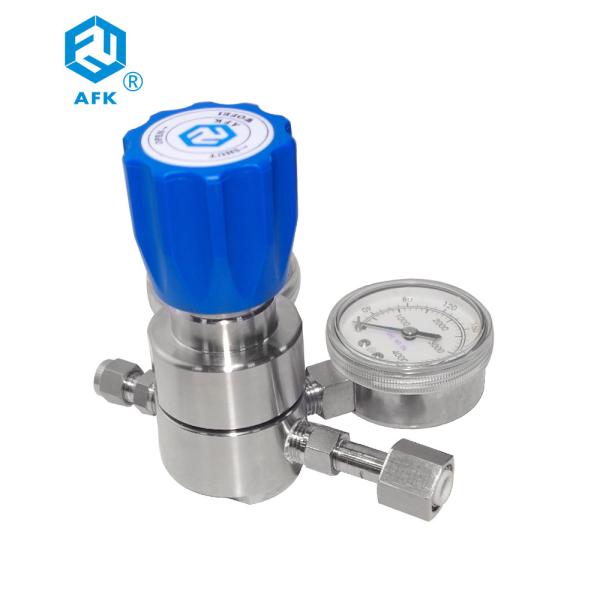

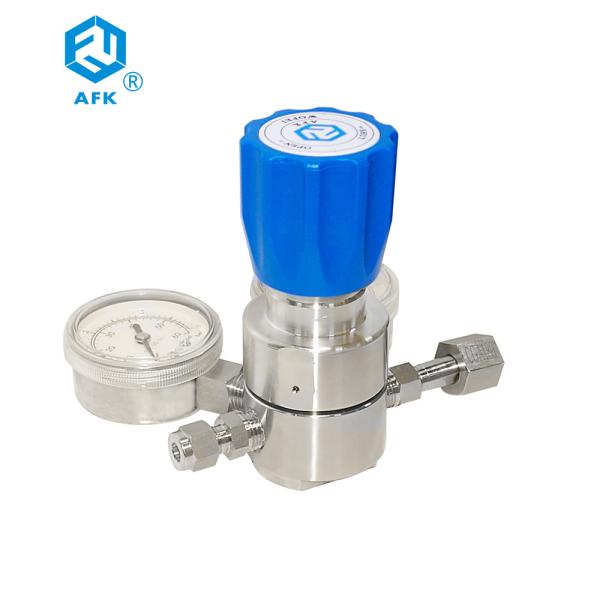

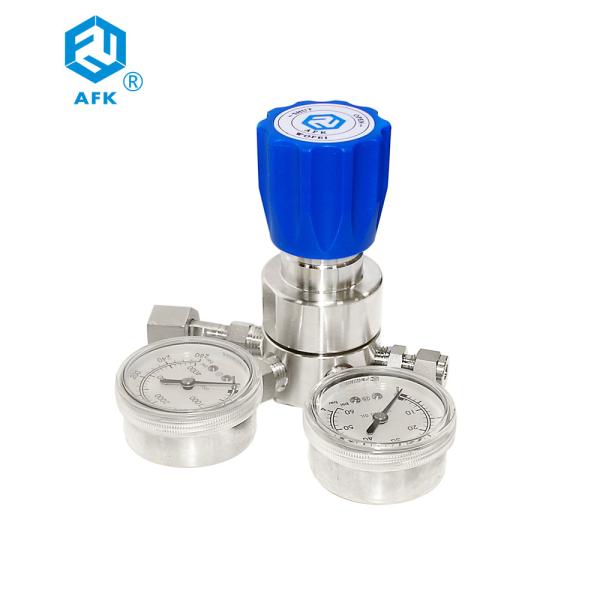

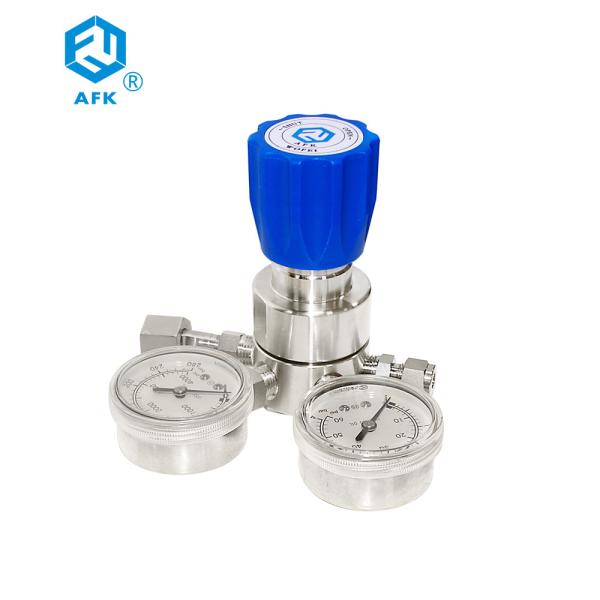

R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
R13 Stainless Steel Pressure Regulator 3000PSI Nitrogen Argon Ammonia Helium
Specifications
Brand Name :
AFK
Model Number :
R13
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Condition :
New
Material :
Stainless Steel,316
Warranty :
1 Year
Application :
Industry Equipment
Color :
Silver
CV :
1.8
QTY :
1PCS
Description

R13 series stainless steel pressure reducer , single-stage diaphragm pressure reducing structure , satinless steel diaphragm pressure transmission , stable output pressure , mainly decomposes large flow gas systems , suitable for pure gas , standard gas , corrosive gas , etc

Design Features
1 Single-stage pressure-reducing structure
2 Metal-to-metal diaphragm seal
3 Body thread : input & output connection 3/4”NPT(F)
4 Gauge and safe valve connection : 1/4”NPT(F)
5 Easy to clean internal structure
6 Filter element installed internally
7 Panel mounting and wall mounting available

Typical applications

Gas purge system

Special gases

Gas bus-bar

Petrochemical industry

Specification
1 Maximum inlet pressure 500 , 1500 psig
2 Output pressure 0~15 , 0~25 , 0~75 , 0~125psig
3 Safety testing pressure 1.5times of max inlet pressure
4 Working tem 40℉~+446℉(-40℃~+230℃)
5 Leakage rate

2*10-8 atm cc/sec He
6 Cv 1.8

Ordering Information

R13 L B E H G 04 04 P
Item

Body

Materia

Body

hole

Inlet

pressure

 Outlet pressure Pressure gauge Inlet size Outlet size Options
R13 L:316 A E:1500psi H:0~125psig G:MPa gauge 04:1/2”NPT(F) 04:1/2”NPT(F) P:Panel mounting
B:Brass B F:500psi J:0~75psig P:Psig/bar gauge 05:1/2”NPT(M) 05:1/2”NPT(M) R:With relief valve
D L:0~25psig W:No gauge 06:3/4”NPT(F) 06:3/4”NPT(F)
G M:0~15psig 13:1/2”OD 13:1/2”OD
J 14:3/4”OD 14:3/4”OD
M Other type is available Other type is available
Product tags

ammonia gas pressure regulator

,

high pressure regulator nitrogen

,

nitrogen cylinder pressure regulator
