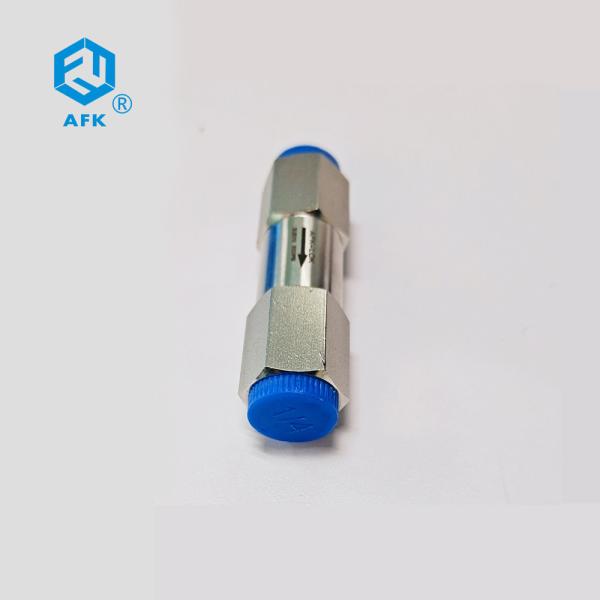

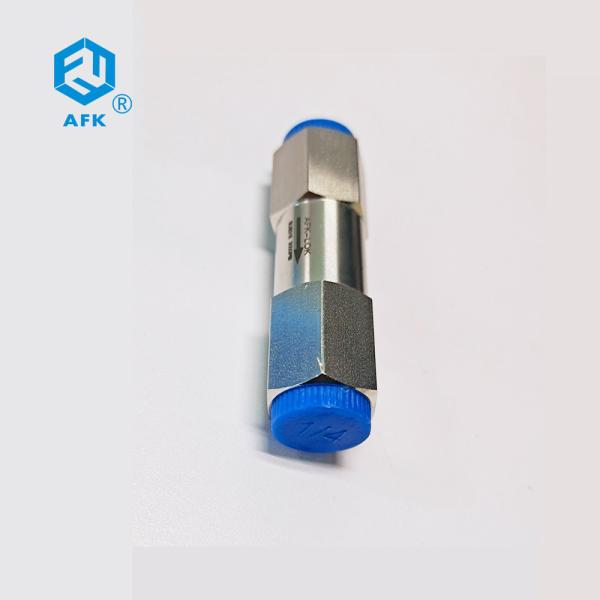

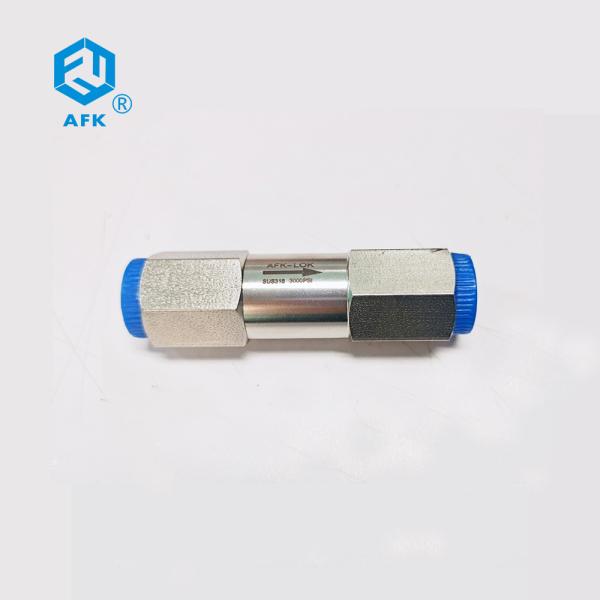

1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel
1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel
1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel
1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel
1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel
1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel
Specifications
Brand Name :
AFK
Model Number :
CV
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Application :
General
Material :
Stainless Steel
Pressure :
High Pressure
Temperature of media :
Medium Temperature
Media :
Water,Gas,Oil
Standard or nonstandard :
Standard
Type :
2-way
Warranty :
1 Year
Size :
1/4"
Description

AFK High Pressure Stainlees Steel 6000psi 1/4in Female Check Valve

Features Of 6000psi 1/4in Female Check Valve

1 Inline check valve stops reversed flow in orde to protect instrumentation
2 Body material in stainless steel SS316/316L cold drawn bar
3 Max.allowed working pressure 3000psi (206bar)
4 With viton O-ring
5 100% factory tested

Item Part Description Qty Material
1 inlet body 1 SS316/316L
2 outlet body 1 SS316/316L
3 seal ring 1 Fluororubber
4 poppet 1 SS316/316L
5 spring 1 SS304

1/4in Female Air Compressor Check Valve High Pressure 6000psi Stainlees Steel

Ordering Information
C- CV- S6- 04 A- 1#
classification proudct name material size (fractional) size(metric) connection type cracking pressure
valve check valve S6:SS316 02:1/8" size(metric) connection type 1#:1PSIG
S6L:SS316L 04:1/4" 6:6mm A:AFK tube end 10#:10PSIG
06:3/8" 8:8mm MR:male BSPT thread 25#:25PSIG
08:1/2" 10:10mm FR:female BSPT thread
12:3/4" 12:12mm MN:male NPT thread
1" FN:female NPT thread
