Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder
Specifications
Brand Name :
AFK
Model Number :
R11
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
20Day
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Condition :
New
Material :
Stainless Steel,316
Warranty :
1 Year
Application :
Industry
Color :
Silver
Key words :
AFK Nitrogen CO2 Pressure Regulator
Max inlet pressure :
500,3000,4000,6000psig
Outlet pressure :
0~25,0~50,0~100,0~250,0~500,0~4000psig
Description

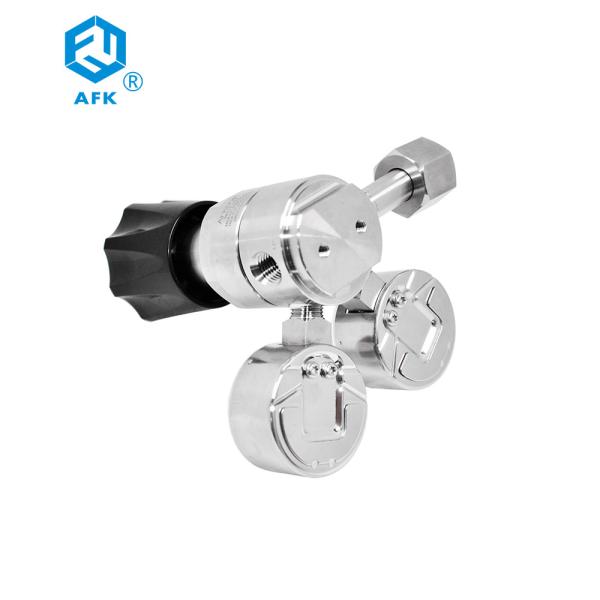

AFK Nitrogen CO2 Pressure Regulator with inlet CGA540 Cylinder Connection Industrial

Specification of Nitrogen CO2 Pressure Regulator
1 Max inlet pressure 500,3000,4000,6000psig
2 Outlet pressure 0~25,0~50,0~100,0~250,0~500,0~4000psig
3 Proof pressure 1.5times of maximum rated pressure
4 Working tem -40℉~+466℉(40℃~+230℃)
5 Leakage rate 2*10-8 atm cc/sec He
6 Cv 0.08

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.

Main Features of Nitrogen CO2 Pressure Regulator

1 Single -stage reduce Structure
2 Use hard-seal between body and diaphragm
3 Body Thread : 1/4" NPT ( F )
4 Easy to sweep inside body
5 Filter mesh inside
6 Panel mountable or wall mounted

Typical applications of Nitrogen CO2 Pressure Regulator

1 Laboratory
2 Gas Chromatograph
3 Gas Laser
4 Gas bus
5 Oil and chemical industry
6 Tested instrumentation

Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder

Single diaphragms Stainless Steel Nitrogen Regulator vacuum With Inlet CGA540 Cylinder

Ordering Information--Nitrogen CO2 Pressure Regulator

R11
L
B
B
D
G
00
02
P
Item
Body Material
Body Hole
Inlet Pressure
Outlet
Pressure
Pressure Guage
Inlet
size
Outlet
size
Mark
R11
L:316
A
D:3000 psi
F:0-500psig
G:Mpa guage
00:1/4″NPT(F)
00:1/4″NPT(F)
P:Panel mounting
B:Brass
B
E:2200 psi
G:0-250psig
P:Psig/Bar Guage
01:1/4″NPT(M)
01:1/4″NPT(M)
R:With relief valve
D
F:500 psi
K:0-50pisg
W:No guage
23:CGGA330
10:1/8″ OD
N:Needle calve
G
L:0-25psig
24:CGGA350
11:1/4″ OD
D:Diaphregm valve
J
27:CGGA580
12:3/8″ OD
M
28:CGGA660
15:6mm OD
30:CGGA590
16:8mm OD
52:G5/8″-RH(F)
63:W21.8-14H(F)
64:W21.8-14LH(F)

RFQ

Q: Are you trading company or manufacturer?

A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.

Q: What is the warranty ?

A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
