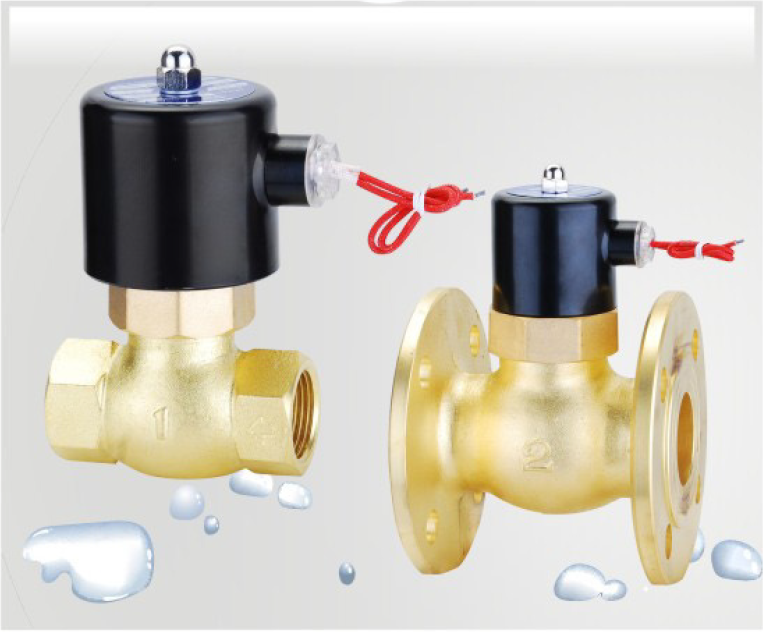

Polish Piston Steam Water Solenoid Valve 26W Brass DC12V Pilot
Polish Piston Steam Water Solenoid Valve 26W Brass DC12V Pilot
Polish Piston Steam Water Solenoid Valve 26W Brass DC12V Pilot
Polish Piston Steam Water Solenoid Valve 26W Brass DC12V Pilot
Specifications
Brand Name :
AFK
Model Number :
2L
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Packaging Details :
Expotrt Packing
Material :
Brass
Media :
Liquid, gas, steam
Standard or nonstandard :
Standard
Voltage :
AC220V,DC24
Temperature :
≤180℃
Power: :
26W
Structure :
Pilot
Port size :
3/4",1/2"
Description

Safety of solenoid valve

1.Generally, the solenoid valve is not waterproof. When conditions do not permit, please select the waterproof type, which can be customized by the factory.

2.The maximum rated nominal pressure of the solenoid valve must exceed the maximum pressure in the pipeline, otherwise the service life will be shortened or other accidents will occur in production.

3.All stainless steel type shall be selected for corrosive liquid, and solenoid valves of other special materials shall be selected for strongly corrosive fluid.

4.Corresponding explosion-proof products must be selected for explosive environment.

Characteristic

The center structure is adopted to automatically compensate the seal, which greatly prolongs the service life of the valve. The balance design of piston clearance greatly enhances the reliability of the valve at higher temperatures.
1 Model 2L-32
2 Size 1-1/4 inch
3 Thread G
4 .Operation Pilot type
5 Operating pressure range 0.2-1.6Mpa
6 Insulation grade B class
7 Power 26W
8 Material Brass
9 Medium Liquid gas steam <20 cst
10 Response time Open≤2 second ≤3 second
11 Voltage AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V

Polish Piston Steam Water Solenoid Valve 26W Brass DC12V Pilot

Polish Piston Steam Water Solenoid Valve 26W Brass DC12V Pilot

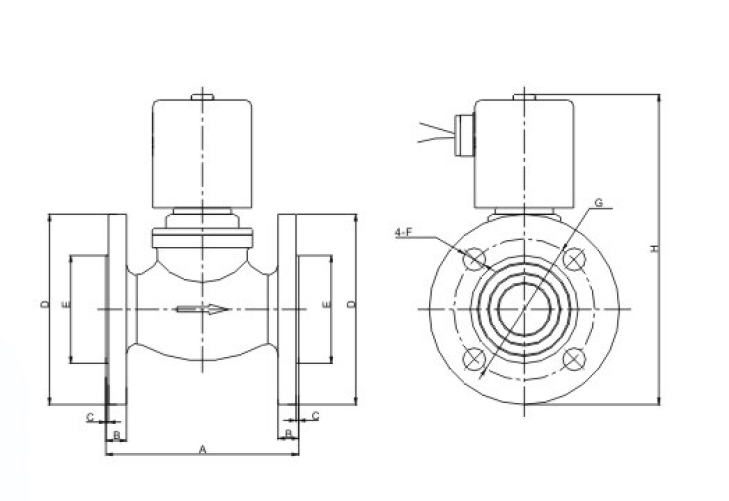

Structural Specification Parameters

Model A B C φD φE φF φG H Pipe Size Material
2L-15 82 / / 70 / / / 145 G1/2" Brass
2L-20 82 / / 70 / / / 147 G3/4"
2L-25 91 / / 70 / / / 158 G1"
2L-32 112 / / 73 / / / 178 G1-1/4"
2L-40 112 / / 71 / / / 175 G1-1/2"
2L-50 118 / / 91 / / / 190 G2"
2L-25F 118 12 2 115 70 4-18 65 195 G1"
2L-32F 138 14 2 133 100 4-18 78 215 G1-1/4"
2L-40F 139 14 2 150 110 4-18 89 225 G1-1/2"
2L-50F 148 14 2 163 125 4-18 98 235 G2"
