2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
Specifications
Brand Name :
YHDAA
Model Number :
YHD-6100DW
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details :
YHD-6100DW 2D Wireless Barcode Scanner with Base Standard List : Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Connectivity Technology :
wireless, USB Cable
Color :
Black
Standby current : :
18uA-5mA
Scanning angle :
Angle of rotation360°,inclination± 65°,declination ± 60°
Indication :
Buzzer & LED
Anti inference :
0-100000Lux Max
Description

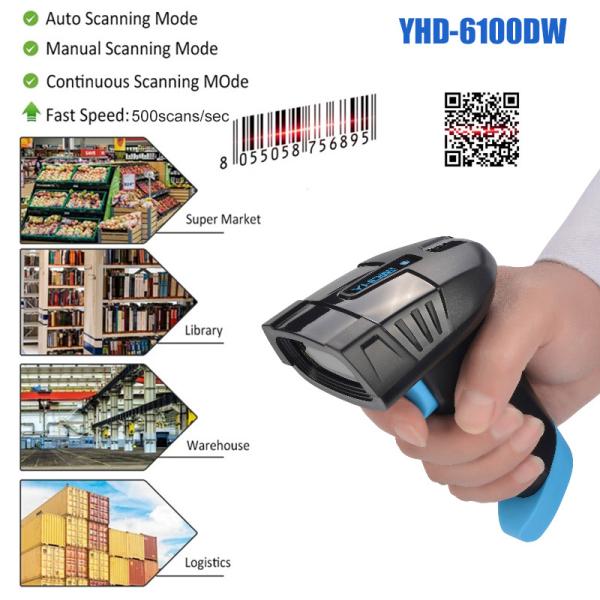

2.4G Wireless Barcode Scanner 2D Bar code Reader with Charging Base YHD-6100DW

Features

● Factory direct sale, cheap price.

● Can store 100,000 barcode off-line.

● Supports 1D/2D bar-codes on paper/screen.

● Built-in 2200mAh battery, super-long standby time.

● Base supports data transmission and battery charging.

● Support different language for 25 countries.

● 32Bit CPU, Super decoding ability; Read barcode as small as 3 mill.

● Super Network Mode:one to one (one scanner to one receiver), more to one (several scanner to one receiver).

● Support to put prefix or suffix before or after scanned data,support for deleting or adding characters in the middle of barcode.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

Technical parameters

Transmission mode: 2.4G Wireless

Storage:100,000 barcodes

Distance:100m

CPU:ARM 32-bit Cortex

Sensor:640*480 CMOS

Interface:USB,USB-COM

Resolution : 4mil

Light aimer : 617nm LED

Battery : 3.7V-2200mAh

Button life : 8000,000 times

Material: ABS+PC

250Lux Depth of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm

Decode Capability:

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128 ,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.

2D: QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Trigger Mode : Handheld,Continuous,Auto-Induction

Working current : 3.3Vx200mA

Standby current :18uA-5mA

Working time : 3 to 10 days

Charging power : 5V-400mA

Anti inference : 0-100000Lux Max

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Drop test :2m

Packaging Details

Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1

Single Package Size: 185*120*86mm

Single Gross Weight: 0.4kg

2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved2.4G Wireless Barcode Scanner Reader 2D With Charging Base FCC ROHS Approved
