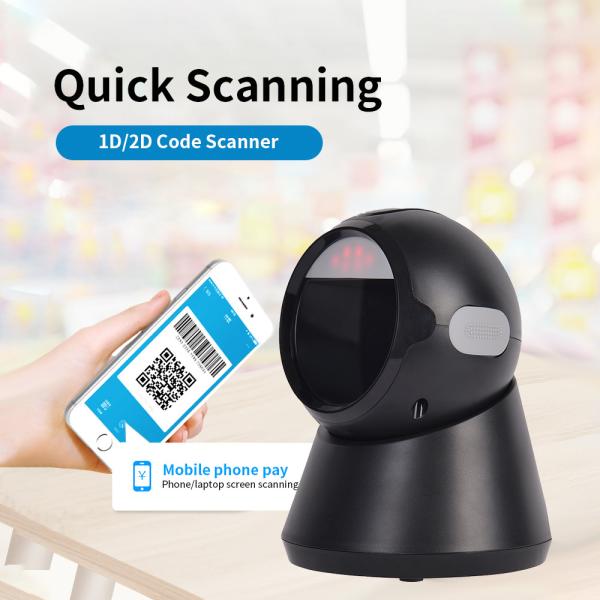

2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
Specifications
Brand Name :
YHDAA
Model Number :
YHD-9100D
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Payment Terms :
T/T, D/P, D/A, Western Union, L/C, MoneyGram
Packaging Details :
YHD-9100D 2D Desktop Barcode Scanner Standard List : Desktop Scanner*1, USB Cable *1, Manual *1, Box *1
Type :
2D Desktop Barcode Scanner
Resolution :
4mil
Interface type :
USB:HID Keyboard(default mode), USB virtual serial port
Optical resolution :
640*480
Prompt mode :
buzzer sound prompt and green light prompt
Scanning speed :
2200 times/s
Description

2D Omnidirectional Tabletop Barcode Reader CMOS Qr Code Scanner For Supermarket YHD-9100D

YHD-9100D handsfree barcode scanner you can directly place onto your desk or table, no need to pick up the scanner when scanning, especially for the cashier to release their hands so that they can grab heavy and big goods, improving working efficiency, save your time, it is so easy to use

Features

● YHD-9100D 2D Desktop Barcode Scanner,Desktop mounted, easy to use.

● 32Bit CPU, Super decoding ability, support multiple languages.

● Wired scanning platform free your hand and improve the working efficiency.

● Compatible System - Windows, Mac OS, POS Cash Register, Linux.

● Plug and play, no need for any driver or software. Easy installation with USB cable.

● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.

● Desktop Hand-Free Design, auto sense ,when the scanner reaches the barcode ,it will

automatically decoding the barcode.

●Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

Technical parameters

Optical resolution : 640*480

Lighting source : red LED supplement

Scanning speed : 2200 times/s

Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees

Sweeping barcode type paper, thin film medium one-dimensional; mobile phone, flat screen, etc.

Printing contrast : 20%

Error rate : ≤1/2,000,000

Interface type : USB:HID Keyboard(default mode), USB virtual serial port

IP level : up to IP5X standard

Prompt mode : buzzer sound prompt and green light prompt

Decoding Capability 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E, EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5,matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.

2D:QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Electric voltage : 5V DC

Working current : 390mA(Max.),220mA(Typical)

Optical safety certification : ICE42471,IEC60950

Electromagnetic compatibility : EN55022,EN55024

Size : 110mm*150mm*110mm

Cable length : 2m

Weight : 450g

Working temperature : -20℃～60℃

Storage temperature : -20℃～70℃

Working humidity : 0%～80%

Drop test : 2m

Packaging Details

Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.

Single Package Size: 185*125*130mm

Single Gross Weight: 0.53kg

30pcs/CTN Carton Size: 390*390*675mm

30pcs/CTN Carton G.W.:17Kg, N.W:15Kg

2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket2D CMOS Table Top Barcode Scanner Omnidirectional Handsfree For Supermarket
