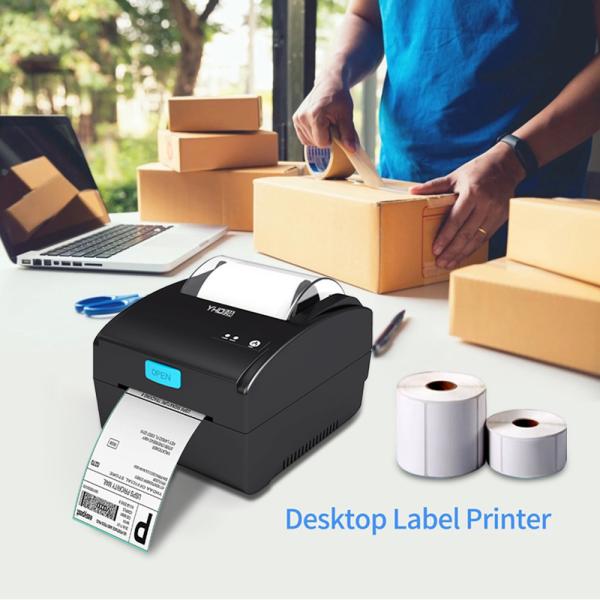

80mm Thermal Printer 3inch Size Print Width Connect to Window and Linux Label Printer for Big Warehouse use

Excellent function, high printing speed at 160 mm/s, high resolution 203 dpi, use direct thermal technology, without refilling ink toner, cost saving and convenient.strong compatibility, support USB cable connection, compatible with Windows systems.A variety of content can be printed, multi-language text/picture/logo/1D/2D/QR code all support printing.suit for manufacturing and warehousing industry, retail, specimen,marking, post package industry, shelf label, price tag, patient identification, mail delivery label, medical industry and more others.

Technical parameters

Interface : USB / USB+LAN / USB+Bluetooth

Print Comand : TSPL command (CPCL/ESC/POS /command)

Print Method : Direct Line Thermal

Pirnt Speed : 160mm/sec

TPH Life : 50KM

Resolution : 203 Dpi(8 Dot/mm)

Print Width : 20-80mm (Max. 576 points)

Compatible OS : Window Systems, Android & iOS Operate Systems

Input : AC 110V/220V, 50～60Hz

Output : DC 24V/1.5A

Paper Type : Continuous paper, Label paper, Folded paper, Tag paper

Available Max Paper Width : 20-80mm

Paper Thickness : 0.06-0.3mm

Max Paper Width : 76mm

Diameter of Paper Warehouse : 100mm (MAX)

CTN Dimension : 49 x 46 x 36 cm

Pieces Per CTN : 8 Pieces

CTN Gross Weight : 12kgs

Temperature Working : +0 to 50 ℃ Storage: -20 to 60 ℃

Humidity Working : 20%-85% RH Storage: 5%-95%RH

Warantty : 12 months at least

One-dimentional code UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODEBAR/ ITF/ CODE39/ CODE93/ CODE128,Two-dimensional code,QR Code, PDF417

Driver : Win2003, Win XP, Win 7/8/10/11, MACOS,Support IOS / Android

Standard List: Printer*1, USB Cable *1, Adapter *1, CD Driver*1, Manual *1, Power cable, Box *1.

Single Package Size: 235*220*175mm

Single Gross Weight: 1.4KG

8pcs/CTN Carton Size:49*46*36cm Carton G.W.:12KG
