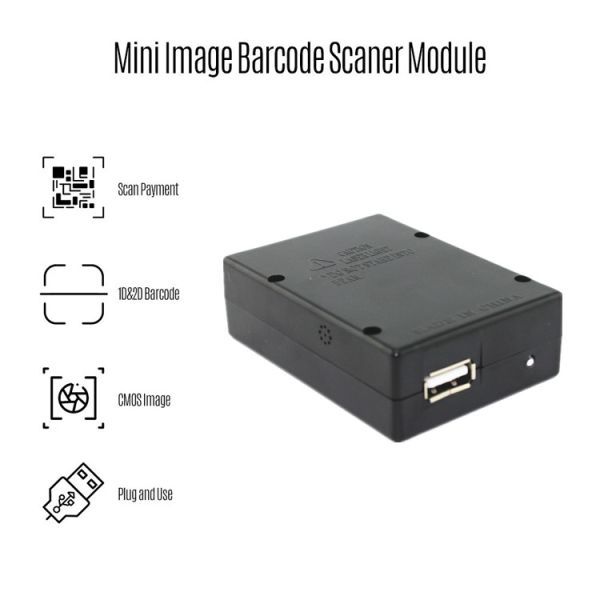

2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
2D 1D CMOS Sensor QR Code Scanner Module For Outdoor Kiosk Payment
Specifications
Brand Name :
YHDAA
Model Number :
YHD-M100D
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
YHD-M100D 2D CMOS Barcode Scanner Module Standard List : Scanner Module*1, Cable *1, Manual *1, Box *1.
Optical Source :
620nm Visible red light diode
Decoding Speed :
500times/second
Interface :
RS232,USB,TTL,Micro USB
Resolution :
4mil
Dimensions(scanner) :
70×50×23 mm(Length x Width x Height)
Relative Humidity :
0%-95%Relative humidity, no condensation state
Description

Low Cost 2D 1D CMOS Sensor Outdoor Kiosk Payment QR Code Scanner Module YHD-1100D

Features

● Mini Size: 7 *5 *2.3cm/ 2.7 *1.9 *0.9in.

● Powerful decoding capacity for most 1D and 2D codes.

● Plug and play, driver-free, convenient for usage.

● RS232,USB,TTL,Micro USB Interface Optional

● Supports Continuous/Auto-Induction , 2modes for option.

● Can scan the phone, computer and other electronic screen.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

● M100D Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc.

● Can be customized according to customer demand.

Technical parameters

Imaging Sensor : CMOS

Optical Source : 620nm Visible red light diode

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Resolution Ratio : 640×480 CMOS

Decoding Speed : 500times/second

Interface : RS232,USB,TTL,Micro USB

Resolution : 4mil

Dimensions(scanner) : 70×50×23 mm(Length x Width x Height)

Weight(without cable) : 47g

Minimum Contrast : ≥ 25%

Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL),20-150mm PDF417(6.8MIL),15-250mm QR Code(20MIL)

Working Voltage : DC3.3V

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 0%-95%Relative humidity, no condensation state

Drop test : 1.5m fall to concrete

Packaging Details

Standard List: Scanner Module*1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)

Carton : 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm

Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
