OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
OEM CCD 1D Barcode Scanner Module Scanning Mobile Screen Code
Specifications
Brand Name :
YHDAA
Model Number :
YHD-M300D
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
YHD-M300C 1D CCD Barcode Scanner Module Standard List : Scanne Module*1, Cable *1, Manual *1, Box *1.
Type :
1D CCD Barcode Scanner Module
Trigger Mode :
Auto-Induction,Continuous,
Interface :
Micro USB,TTL,RS232,USB
Current Max. :
86mA Working
Mini Size :
5 *3.7 *2.2cm/ 1.9 *1.4 *0.8in.
Minimum Contrast :
≥ 25%
Description

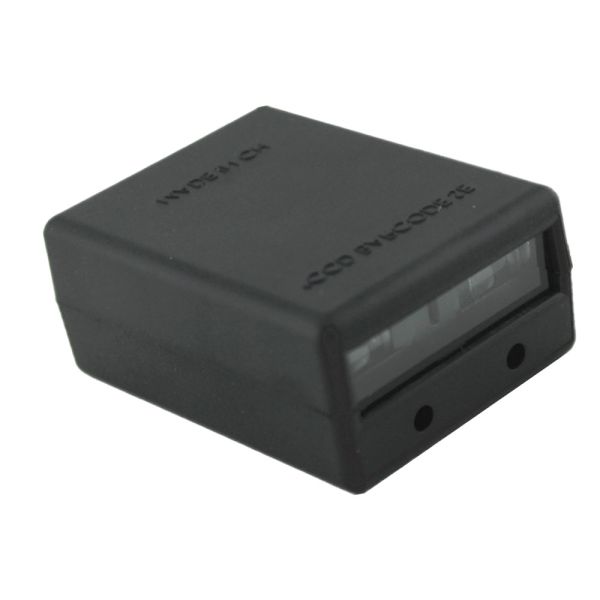

M300C OEM 1D Barcode Scanner Module Scanning Mobile Screen Code

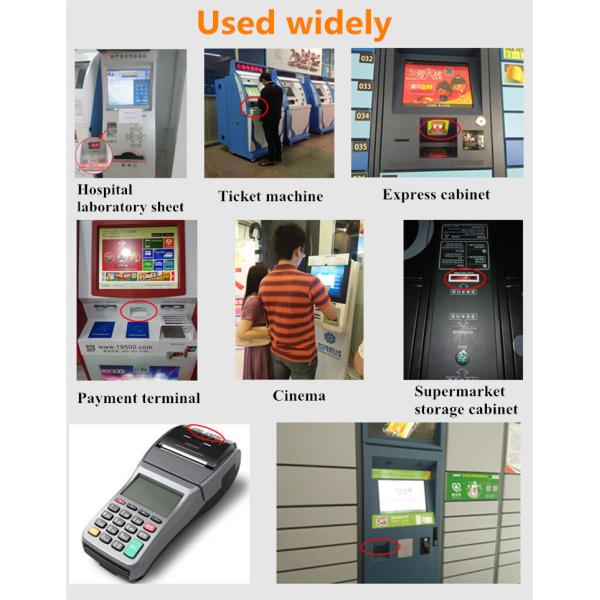

The scanning method can be triggered by keystrokes or automatic continuous scanning, the communication method can be selected from USB or virtual serial port, the prefix or suffix can be added to the barcode data, and a variety of terminators can be selected. Rich functions can fully meet the special requirements of various customers. It can be widely used in express logistics, retail, e-commerce office automation and other fields

Features

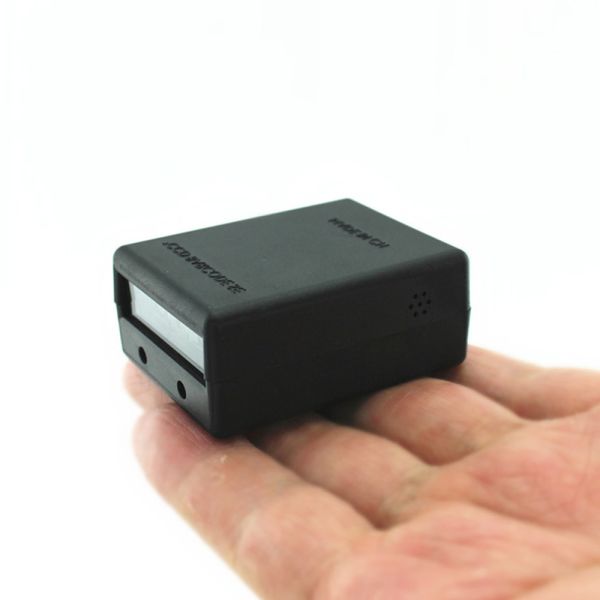

● Mini Size: 5 *3.7 *2.2cm/ 1.9 *1.4 *0.8in.

● Powerful decoding capacity for most 1D codes.

● Plug and play, driver-free, convenient for usage.

● Supports Continuous/Auto-Induction , 2modes for option.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

● Small size,easily to integrate into any device, especially for limit space application.

● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

● Can be customized according to customer demand.

Technical parameters

CPU : ARM 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 2500 pixel

Imaging Sensor : CCD

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Decoding Speed : 300times/second

Interface : Micro USB,TTL,RS232,USB

Resolution : 4mil

Decoding Capability UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)

Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°

Current Max. : 86mA Working :33mA～86mA Stand-by : 33mA

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanne Module*1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
