Specifications
Brand Name :
YHDAA
Model Number :
YHD-5300LM
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details :
YHD-5300LM 1D Laser Wireless Barcode Scanner Standard List : Scanner *1, Charging Cable *1, Charging Base *1, Manual *1, Box *1
Source type :
Visible laser diode, wavelength 650nm
Trigger mode :
Button,Continuous
Operating Channel :
433MHZ
Scan speed :
300 times/second
Resolution :
4mil
Interface :
USB
Description

Wireless 1D laser Barcode Scanner 433MHZ Plug and Play for Store YHD-5300LM

Features

● Plug and play, not need install any procedure.

● Can store 300,000 barcode off-line.

● 433Mhz Wireless communication distance outdoor 500m,indoor 200m.

● Base supports data transmission and battery charging.

● Large capacity battery,2600MAH Li-ion battery.

● Automatic frequency hopping and strong anti-interference capacity.

● One to multi,multi to one, one to one mode.

● The head of the scanner, the handle and the base are protected by rubber, Antiknock, full quakeproof design, withstand 3m drops.

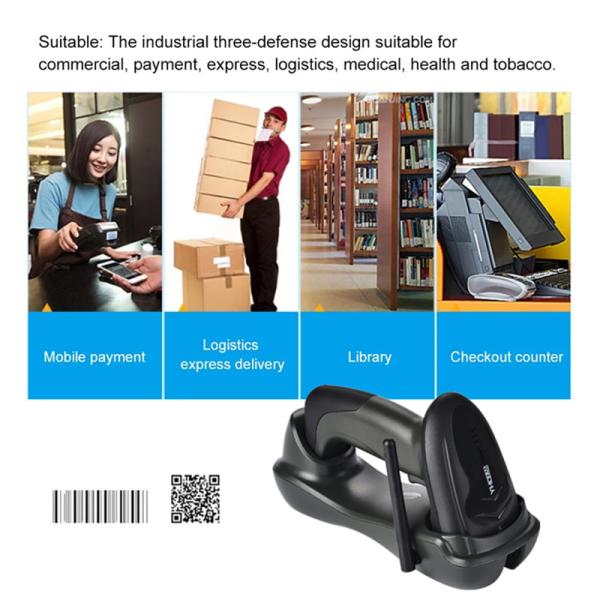

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Source type : Visible laser diode, wavelength 650nm

Trigger mode : Button,Continuous

Operating Channel : 433MHZ

Scan speed : 300 times/second

Resolution : 4mil

Print contrast : 30% minimum reflectance difference

Interface : USB

BER : 1/5000000

Depth of field : 5mm-800mm

Shell material : ABS+Rubber

Working time : 7 to 10 days

Storage : 300,000 barcode

Battery : 2600mAh

Distance : Indoor : 100-300m Outdoor:300m-500m

Scanning angle : ± 60 ° ± 65 ° ± 42 ° (left and right, front and rear, turn)

Decoding capability : UPC / EAN / JAN, UPC / EAN with Supplementals, UCC / EAN 128,Code 39, MSI, Code11, Code 39 Full ASCII, Code 39 Tri Optic, Code : 128,Code 128Full ASCII, Codabar, Code93, Discrete2of5, IATA, RSS variants,Codabar, Chinese2of5, Inteleaved2 / 5, Interleaved2of5 ect.

Lift method : Buzzer, LED indicator

Temperature : -20 ℃ to 50 ℃ (work): -40 ℃ to 60 ℃ (storage)

Charging input voltage DC 5VDC ± 0.25 V

Drop test : 3.0m fall to concrete

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner *1, Charging Cable *1, Charging Base *1, Manual *1, Box *1.

Single Package Size: 200*85*145mm

Single Gross Weight: 0.50kg

30pcs/CTN Carton Size: 425*415*445mm

30pcs/CTN Carton G.W.:16Kg N.W.:14Kg
