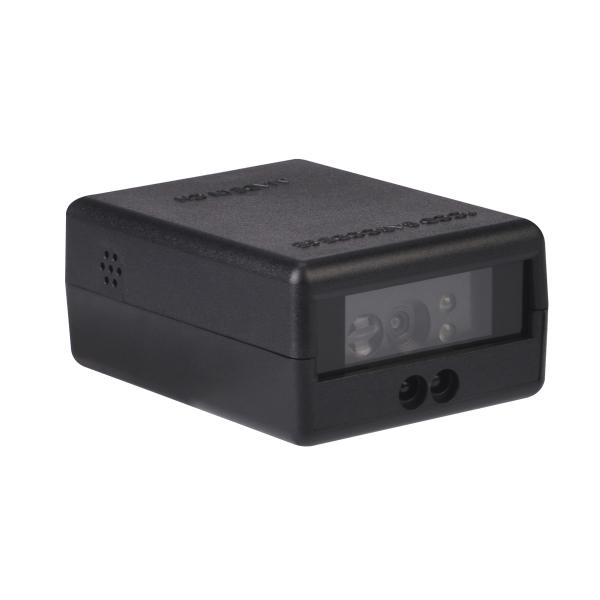

CCD Sensor 1D Barcode Scanner Module USB RS232 Serial TTL YHD-M300C

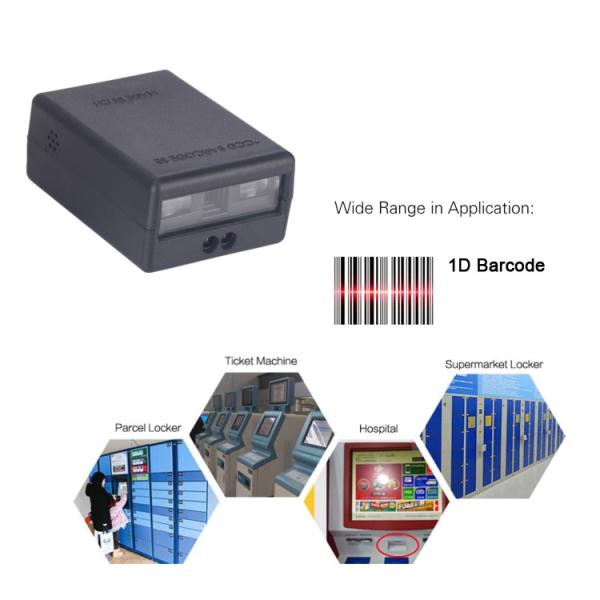

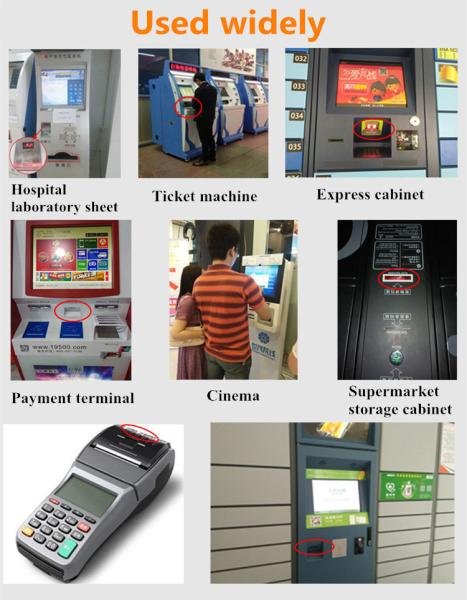

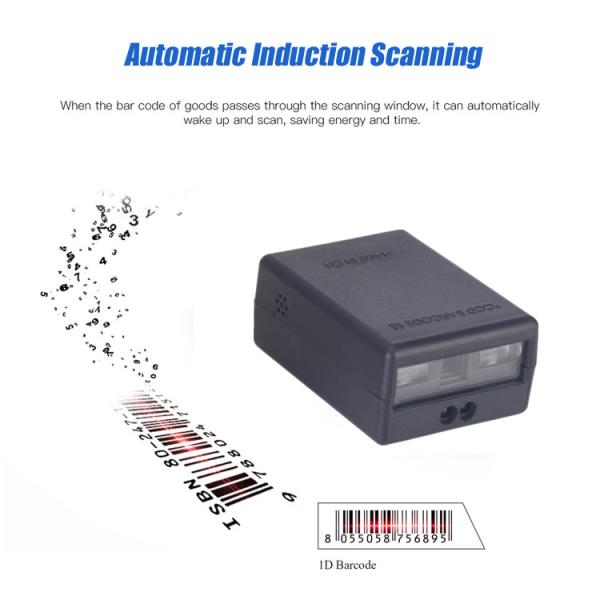

YHD-M300D Auto-sensing scanning,can saves power and time,when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.It can be applied in parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics,hospital,etc.

Technical parameters

CPU : ARM 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 2500 pixel

Imaging Sensor : CCD

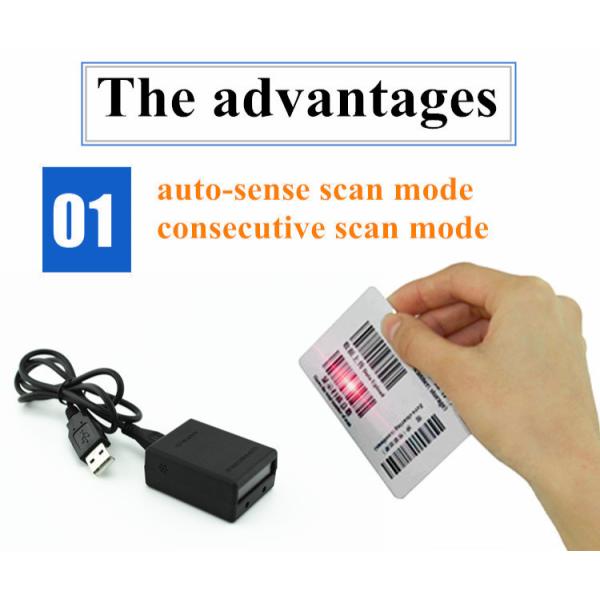

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Decoding Speed : 300times/second

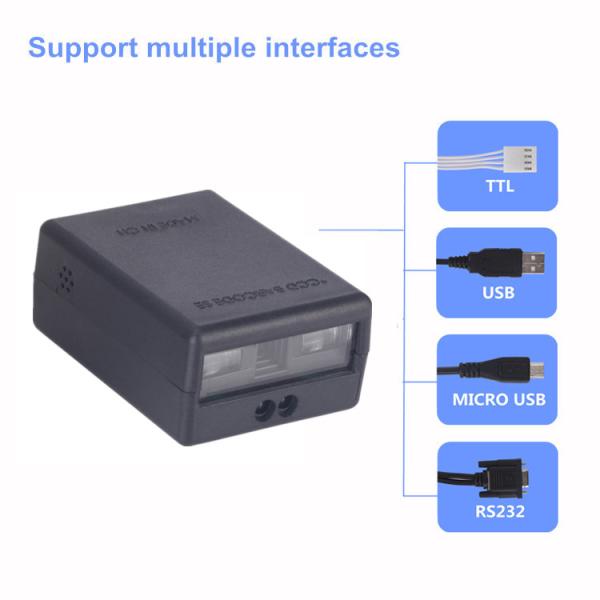

Interface : Micro USB,TTL,RS232,USB

Resolution : 4mil

Weight (without cable) : 22g

Dimensions(scanner) : 50×37×22 mm(Length x Width x Height)

Minimum Contrast : ≥ 25%

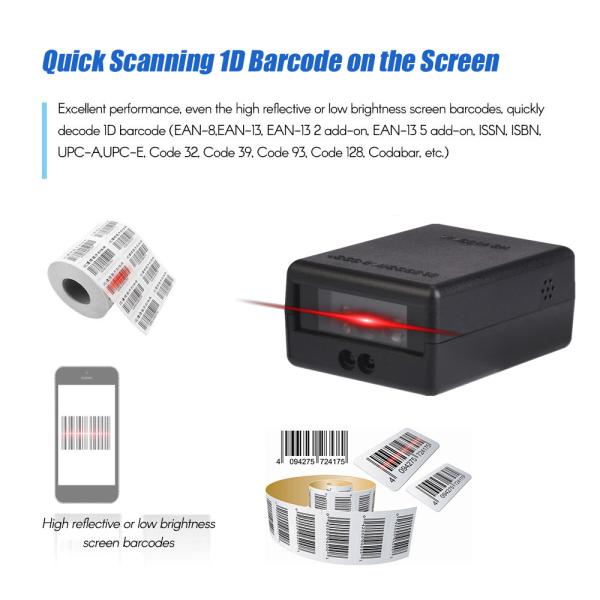

Decoding Capability UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)

Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°

Current Max. : 86mA Working :33mA～86mA Stand-by : 33mA

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 0%-95%, no condensation state

Drop test : 1.5m fall to concrete

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

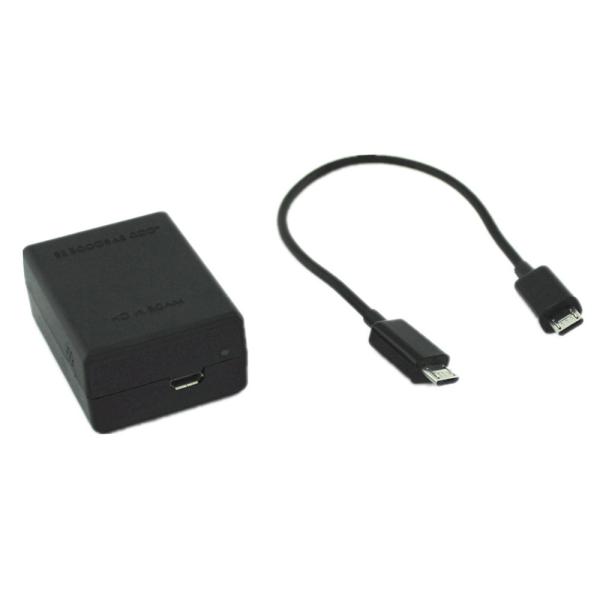

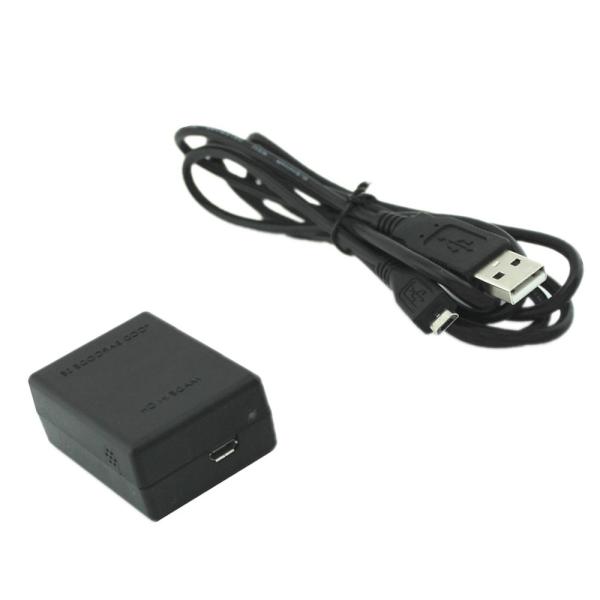

Standard List: Scanne Module*1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)

Carton: 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm

Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
