Pocket Mini Barcode Reader 2D QR Scanner BT Read Phone and PC Screen With Time Record

YHD-3200DB With LED screen display and convenient operation buttons.# Screen display can help you know the connection status and check the data coming out. Three buttons can help users switch the connection mode and complete the conversion of some functions.
Wide compatibility# Supports reading a wide range of barcodes types: Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ISBN, UCC/EAN-128, Code 93, GS1 Databar etc

Features

● Mini size, light and portable.

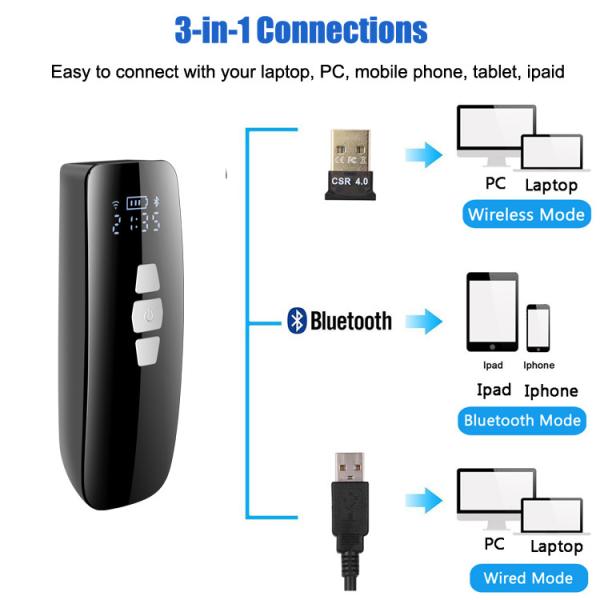

● Bluetooth/2.4G/Wired Mode, 3modes for option.

● Support HID/SPP/BLE mode and can switch.

● Supports instant upload mode and storage mode.

● Excellent decoding ability, fast to scan 1D and 2D barcodes on paper/screen.

● Can store 100,000 barcode in offline storage mode, very convenient to use.

● Built-in 1500mAh Battery, it can support 18 hours Continuous scanning and 2 months standby after 4hours full charge.

● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Working current : 3.5 V ± 10%x100mA

Light source : 617LED

Sensor : 640*480 CMOS lumination : 6500K LEDs

CPU : ARM 32-bit Cortex

Decoding speed : 500/sec

Depth of Filed : 30-600mm

Indication : Buzzer & LED

Decoding accuracy : ≥4mil

Trigger Mode : Button,Continuous,Auto-Induction

Printing Contract : ≥25%

Scanning angle : Angle of rotation±360°,inclination± 65°,declination ± 60°

Transmission : Bluetooth & 2.4G &USB-Wire

Working temperature : -20℃ to 50℃

Relative humidity : 5%-95%

Wireless type:Bluetooth/2.4G Wireless

Transmission distance:50m/100m

Battery : 3.7V-1500mAh

Charging power : 5V-400mA

Working mode : Instant upload mode,Storage mode,Not lost mode

Storage : 16M=100000 barcodes

Working time : Full load≈18hours,Normal use ≈3 to 10days

Packaging Details

Standard List: Scanner *1, Charging Cable *1, Receiver*1, Manual *1 ,Sling* 1, Box* 1

Single Package Size: 160*100*35mm

Single Gross Weight: 0.16kg

50pcs/CTN Carton Size: 530*195*340mm

50pcs/CTN Carton G.W.:9.5Kg, N.W:7.5Kg
