Specifications
Brand Name :
YHDAA
Model Number :
YHD-M803D
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
YHD-M803D 2D CMOS Barcode Scanner Module
Type :
2D CMOS Barcode Scanner Module
Trigger Mode :
Auto-sensing scanning
Resolution Ratio :
640×480 CMOS
Resolution :
4mil
Indication :
Buzzer & LED
Interface :
RS232,USB,TTL,Micro USB
Description

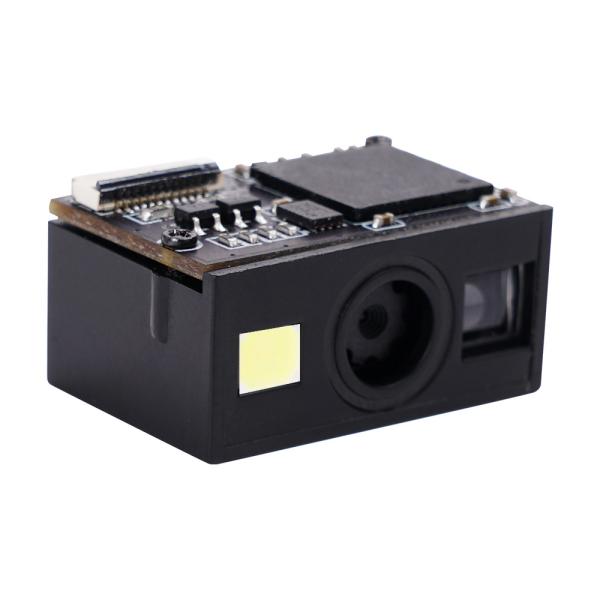

Mini 2D Fixed Barcode Scanner Module Quality Scanner Engine Support OEM YHD-M803D

A small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.Through the onboard USB RS232,USB,TTL,Micro USB interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.

Features

● Support to read 1D 2D Codes on screen and paper.

● 3 kinds of output interfaces, TTLRS232USB. Meet more interface requirements.

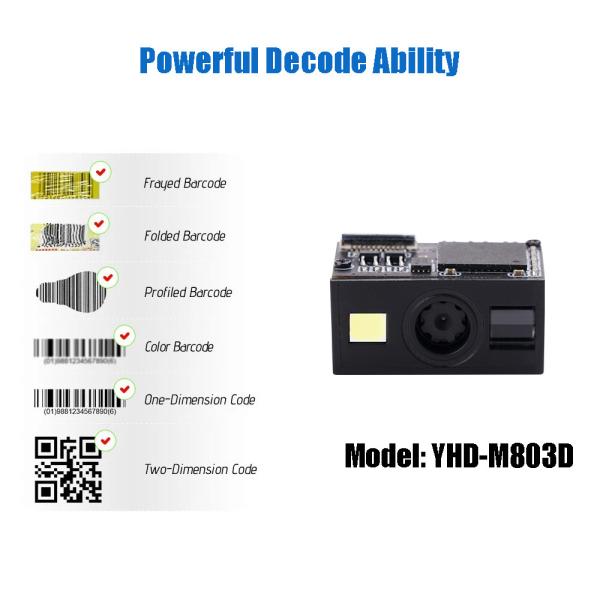

● Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.

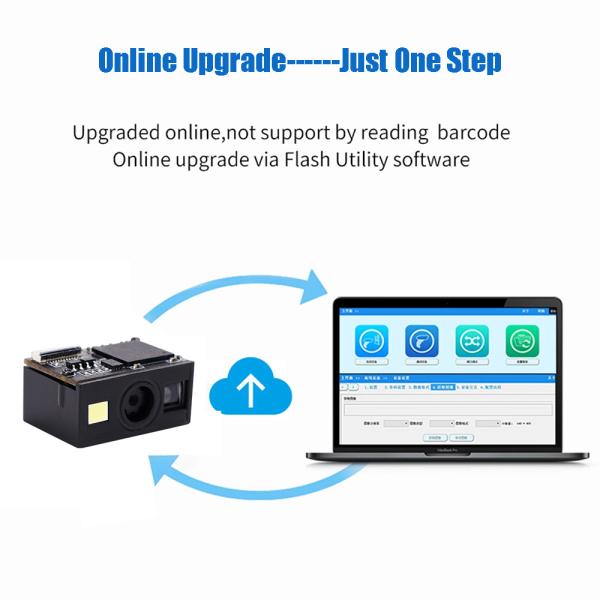

● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,PDA,etc.

● Can be customized according to customer demand.

Technical parameters

Imaging Sensor : CMOS

Optical Source (Aim) red LED, (Illumination)white LED

Trigger Mode : Auto-sensing scanning

Indication : Buzzer & LED

Resolution : Ratio 640×480 CMOS

Decoding Speed : 500times/second

Interface : RS232,USB,TTL,Micro USB

Resolution : 4mil

Minimum Contrast : ≥20%

Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,

Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

2D: PDF417, QR , DataMatrix

Depth of field : 43-310mm Code 128(13MIL),45-269mm EAN-13 (13MIL),45-120mm Code 39(5MIL),45-116mm Data Matrix(10MIL),40-105mm PDF417(6.67MIL),15-185mm QR Code(15MIL)

Current DC : 3.3V Working :150mA Stand-by : 70mA

Working Voltage : DC5/3.3 V ± 10%

Storage Temperature : -40°C ~ 80°C / -40°to 176°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 5 ~ 95%

Weight : 2g (scanner without cable and development board),10g(scanner with cable and with development board)

Dimensions : 21.5*14.5*10 mm (scanner without development board),44*33*11 mm (scanner with development board)

Drop test : 1.5m fall to concrete

Certificate : CE,FCC,ROHS,IP54,FDA,SGS
