Specifications
Brand Name :
YHDAA
Model Number :
YHD-M300D
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
YHD-M300D 2D CMOS Barcode Scanner Module Standard List : Scanner Module *1, Cable *1, Manual *1, Box *1.
Trigger Mode :
Auto-Induction,Continuous
Resolution Ratio :
300,000 pixel
Size :
5 *3.7 *2.2cm
Dimensions(scanner) :
50×37×22 mm
Working Voltage :
DC3.3V
Weight (without cable) :
22g
Description

YHDAA QR Scan Engine Module,2D Barcode Reader Module for Gate Machine Tickets Checking Mobile Payment

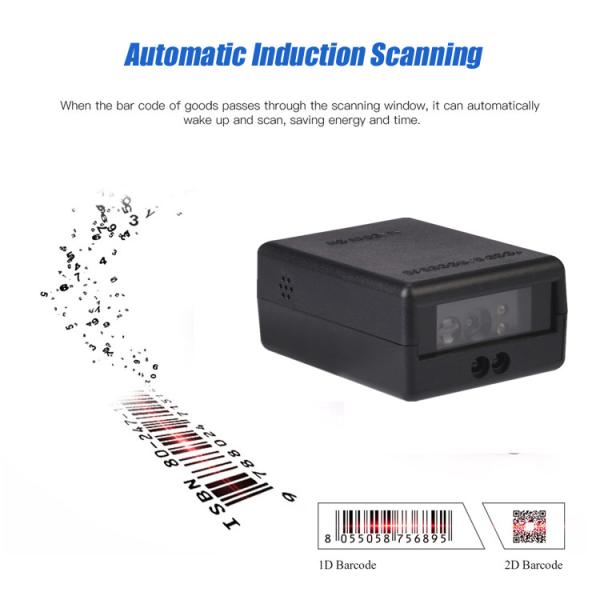

Auto-sensing scanning saves power and time,when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.

Features

● Powerful decoding capacity for most 1D and 2D codes.

● Plug and play, driver-free, convenient for usage.

● Supports Continuous/Auto-Induction , 2modes for option.

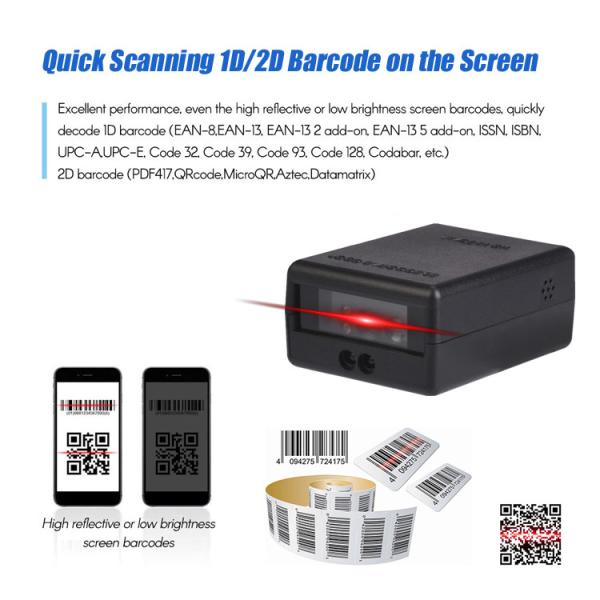

● Can scan the phone, computer and other electronic screen.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

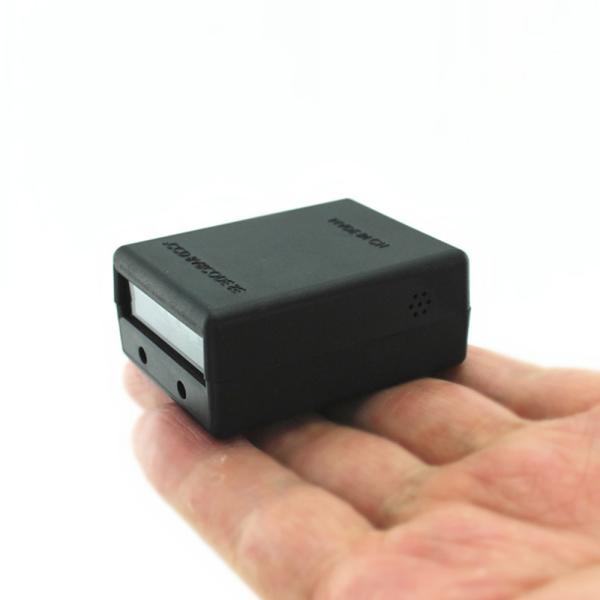

● Small size,easily to integrate into any device, especially for limit space application.

● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc.

● Can be customized according to customer demand.

Technical parameters

Imaging Sensor : CMOS

Optical Source : 620nm Visible red light diode

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Resolution Ratio : 640×480 CMOS (300,000 pixel)

Decoding Speed : 500times/second

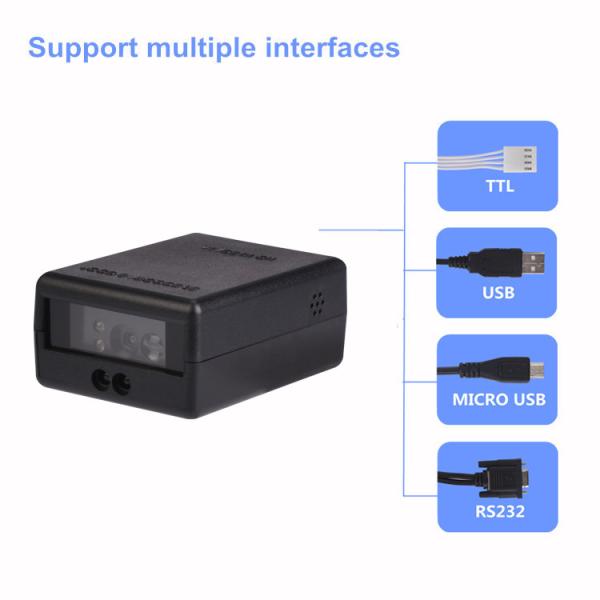

Interface : RS232,USB,TTL,Micro USB

Resolution : 4mil

Weight (without cable) : 22g

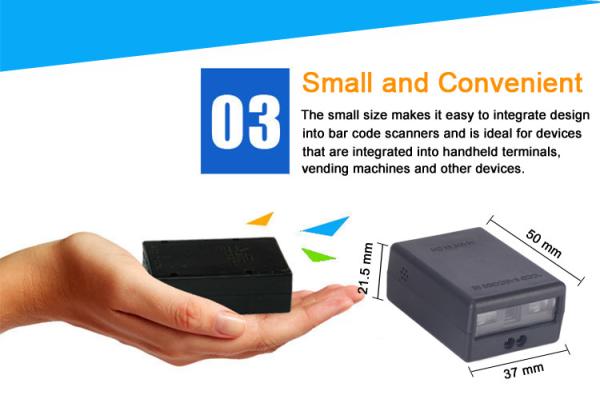

Dimensions(scanner) : 50×37×22 mm (Length x Width x Height)

Minimum Contrast : ≥ 25%

Decoding Capability :

1D : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

2D : PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL),20-150mm,PDF417(6.8MIL),15-250mm QR Code(20MIL)

Working :156mA～212mA

Stand-by : 156mA

Working Voltage : DC3.3V

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 0%-95%Relative humidity,no condensation state

Packaging Details

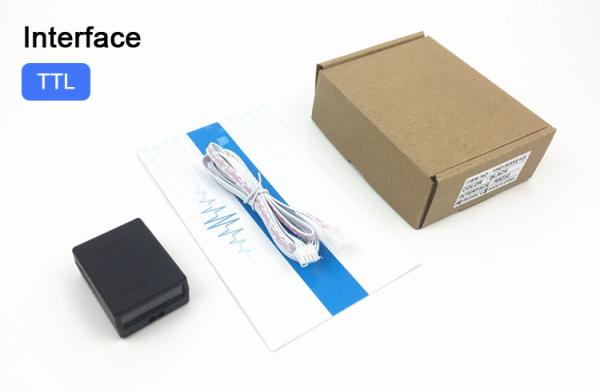

Standard List: Scanner Module *1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)

Carton: 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm

Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
