Specifications
Brand Name :
YHDAA
Model Number :
YHD-80E
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
YHD-80E 80MM Thermal Receipt PrinterStandard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Paper roller supporter*1,Box *1.
Printing Type :
Thermal printer
Paper Width :
80mm
Interface :
USB/ Serial/ Ethernet/ Bluetooth/WIFI
Print Method :
Thermal Line Printing
Printing Speed :
230mm/s
OS Support :
Windows/Linux/Android/iOS
Description

Thermal Printer 80mm 203DIP Printing Resolution Bluetooth Receipt Printers For Pos

YHD-80E 80mm Receipt Thermal Printer is a highly efficient printing device with a printing resolution of 203dpi. It is suitable for printing on thermal paper with a width of 80mm and a thickness between 0.06-0.08mm. With its wide range of support for operating systems such as Windows, Linux, Android and iOS, it is an ideal choice for all kinds of printing tasks. It provides an economical yet reliable solution for producing high-quality images and text. It is an ideal thermal printer for printing receipts and other documents with great speed and accuracy.

1. Features

● Support multi languages.

● Cash drawer drive supported.

● Compatible with ESC/POS print instruction set.

● Support IAP online upgrade and black mark upgrade.

● Optional interface: USB/ USB+Lan/ USB+BT/USB+WIFI,etc.

● Support LED indicator light and prompt buzzer function.

● Excellent waterproof, anti-oil, anti-dust structure design.

● Support download and print logo & graphics. Support 1D,2D bar code printing.

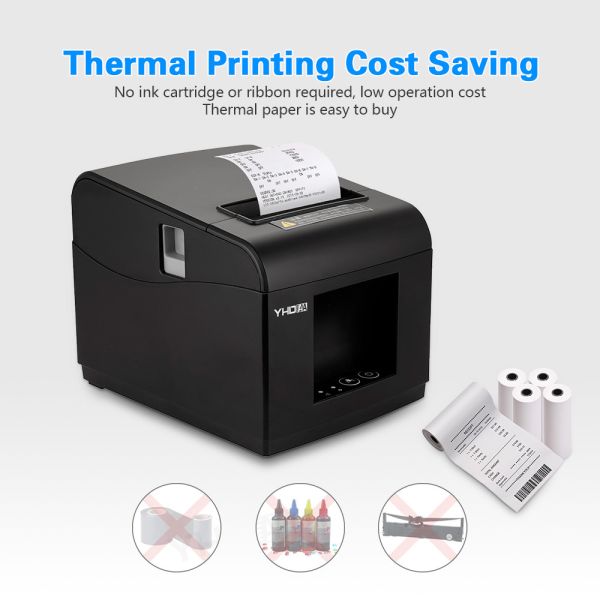

● No ink cartridge or ribbon required, low operation cost, thermal paper is easy to buy.

● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.

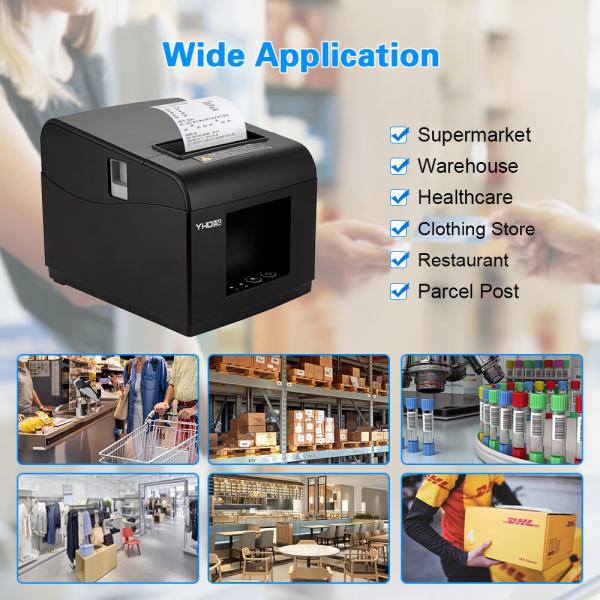

● Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.

2. Technical parameters

Product Specification: YHD-80E 80MM Thermal Receipt Printer
Interfaces: USB/ USB+Lan/ USB+BT/USB+WIFI/USB+RS232,etc
Print Comand: ESC/POS
Print Method: Thermal Line Printing
Print Speed: 230mm/sec; 260mm/sec
No. of Total Dots: 576 dots/line
Auto Paper Cutter: Full or Partial cut
Print Width: 80mm
Character size:

ANK Font A: 12 x 24 dots; Font B: 9 x 17 dots

Simplified/Traditional Chinese: 24 x 24 dots
NV Flash: 256K bytes
Code:

1D:UPC-1/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128

2D: QR CODE/PDF417
Compatible OS: Window Systems ; Linux, Android & IOS Operate Systems
Paper & Electrical
Type: Roll Paper
Width: 79.5±0.5mm
Line spacing: 3.75mm(Adjustable by commands)
Roll Diameter: 83mm
Paper Thickness: 0.06-0.08mm
Power adaptor: Input: AC:100-240V, 50-60Hz Output:DC 24V/2.5A
Cash Drawer Control: 12V/1A
Cutter life: 1.5 million cuts
Print Head: Reliability
Print Reliability: 150km
Physical &Environmental
Temperature: -10℃to 45 ℃(work): -20 ℃to 60 ℃(storage)
Humidity Working 10%-90%
Warantty : 12 months at least
Weight: 0.85 Kg

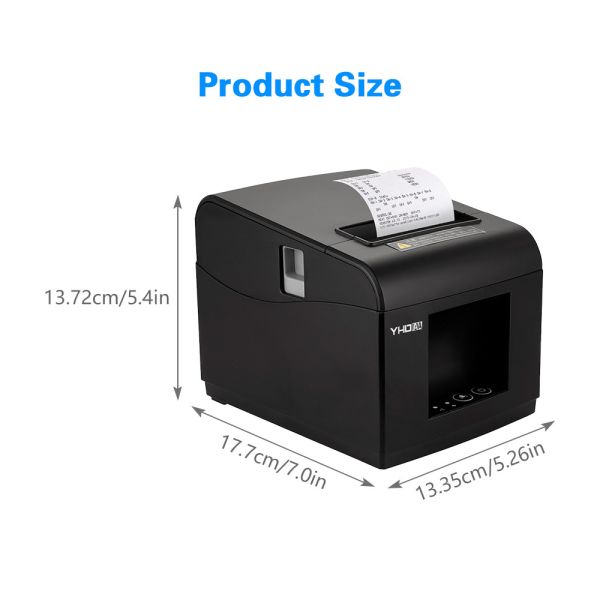

Dimensions 177*133.5*137.2mm(D*W*H)

3. Packaging Details

* Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Paper roller supporter*1,Box *1.

* Single Package Size: 220*195*150mm

* Single Gross Weight: 1.65KG

* 12pcs/CTN Carton Size: 62*46*33cm Carton G.W.:22KG
