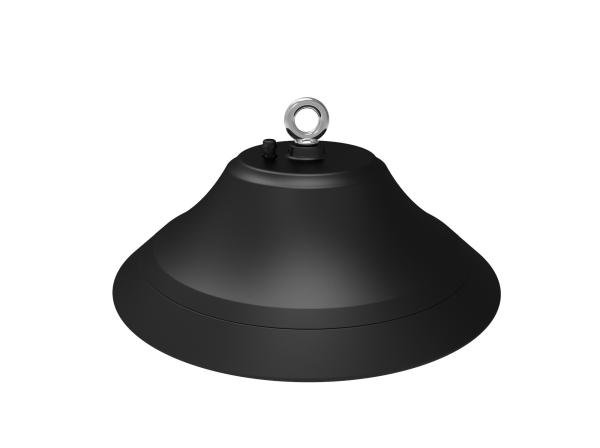

200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay
200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay
200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay
200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay
200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay
200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay
Specifications
Brand Name :
ATA
Model Number :
ATA-UF150W
Certification :
NSF SAA TUV UL PSE CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
US $38-92/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Cash
Supply Ability :
300000pieces /Month
Delivery Time :
Samples 3-5 working days, normal orders 7-10 working days
Packaging Details :
Package Pearl Foam Inner Box and K=K Carton
Power :
50W/60W/80W/100W/120W/150W/200W/240W/300W
Voltage :
100-277V
Driver Brand :
Meanwell
Luminous Efficiency :
150-170lm/w
Colour(CCT) :
3000K, 4000K, 5000K, 6000K
LED Type :
SMD3030 with Lm80 Report
CRI :
Ra>70
Beam Angle :
60°/90°/120° /Degree
Body Colour :
Black / Gray
IP Grade :
IP65
Material :
Die-Cast Aluminum
Surface color :
black, silver, orange, blue, gray, red
Warranty :
5years
Package :
Pearl Foam Inner Box and K=K Carton
HS Code :
9405409000
Description

NSF DLC/CE listed IP66 200w waterproof Food UFO LED High Bay Light for food industry

Best choice for food processing plant, crude or oil refinery factory, slaughterhouse, cold storage, winery plant, bread factory, milk processing plant, meat processing plant

It is a definitely new-fashioned LED high bay light, which can be used as a normal LED high bay, covering applications such as warehouse, shopping mall, exhibition centers,etc.
Especially, it can be installed in those applications having special requirements on safety and daily cleaning, like food processing plants.


Product Advantages:
Special design without screws, No bacterial, dust-free, no greasy dirt, easy to clean

No glass and No exposed screws
Avoid dropping glass fragments or screws into food or machinery
A perfect solution for food-processing application
Hosed down frequently for cleaning acceptable
Smooth body, Seamless design greatly diminish dust and water accumulation, Easier cleaning

Die-cast aluminum, scratch and fade resistant, efficient cooling structure
IP67 water spraying, corrosion-resistant and anti-aging
IP69K hot steam resistant

Fresnel lens, Lumen efficacy up to 150-170LM/W, Achieve higher lumen output than ordinary lens
Beam Angle 60° /90°/120° available
Colorful housing optional, black, silver, orange, blue, gray, red
Glare-free UGR<19, Provides Improved Visual Comfort High CRI>80
NSF SAA TUV UL PSE CE, safe and food certificate

Product Description
PF>0.95, CRI >80Ra, THD<15%, UGR<19
Anti-thunder: 4KV
IK Grade: IK10
Surge Protection: 10KV
LED Junction Temperature: ≤65°C
Working Temperature: -40ºC~+50ºC
Humidity: 10%~90%RH
Lumileds SMD3030, 150-170lm/w
Meanwell driver, 100-277VAC, 90-305V, 180-528V also available
Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
Material: Die-cast aluminium, Optical lens
Ideal mounting height: 8-15 m
Simple and elegant appearance, anodized housing, durable
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust
Certification: NSF, SAA, PSE, UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS
Warranty: 5 years

Technical Specifications
Size: Ф290*H170, Ф340*H180, Ф400*H194MM
LED type: Lumileds SMD3030, LM80 TM21 certified, Up to150lm/W
Driver brand: Meanwell HBG series
Power: 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: Die-cast aluminum, PC lens
Working voltage: 100-277V
Luminous Efficiency: 150-170LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 0-10V dimmable
Surface color: black, silver, orange, blue, gray, red
IP Rating: IP67
Life-span: 50, 000 hours
Power 100W 150W 200W 240W
Power consumption 100W±5W 150W±5W 200W±5W 240W±5W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V
Power Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Output Voltage DC28.8-48V DC28.8-48V DC28.8-48V DC28.8-48V
Output Current 2A(Constant Currrent) 3.3A(Constant Currrent) 4.8A(Constant Currrent) 5.0A(Constant Currrent)
Luminous Flux 13500LM(CCT=5000K) 22500LM(CCT=5000K) 27000LM(CCT=5000K) 27000LM(CCT=5000K)
Fixture Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
LED Type Lumileds SMD3030
PowerSupply MeanWell
System Efficacy 150-170LM/W (CCT=5000K)
CCT 4000K, 5000K, 5700K, 6000K, 6500K
Beam Angle 60 /90/120
CRI >80Ra
System Efficiency >90%
LED Junction Temperature <75ºC(Ta=30ºC)
Storage Temperature (-40~+70ºC)
Operating Temperature (-30~+50ºC)
Working Environment 15-90%RH
Power Efficiency >93%
Power Factor >0.93
Total Harmonic Distortion <15%
Luminaire Net Weight 3.2kg 4.2kg 5.5kg 6.5kg
Package Size 417.7*417.7*197.5mm 417.7*417.7*197.5mm 417.7*417.7*197.5mm 417.7*417.7*197.5mm
Certificates NSF, SAA, PSE, UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS
Life span >50000Hrs(Ta=30ºC @L70)
Ingress Protection IP67
Quality Warranty 5years
Installation Lifting, Tube, Wall Installation



Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount

200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay

Applications
Ideal for for food processing plant, crude or oil refinery factory, slaughterhouse, cold storage, winery plant, bread factory, milk processing plant, meat processing plant
200w UFO Industrial High Bay Led Lighting , IP66 Led Warehouse Lighting High Bay


User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
