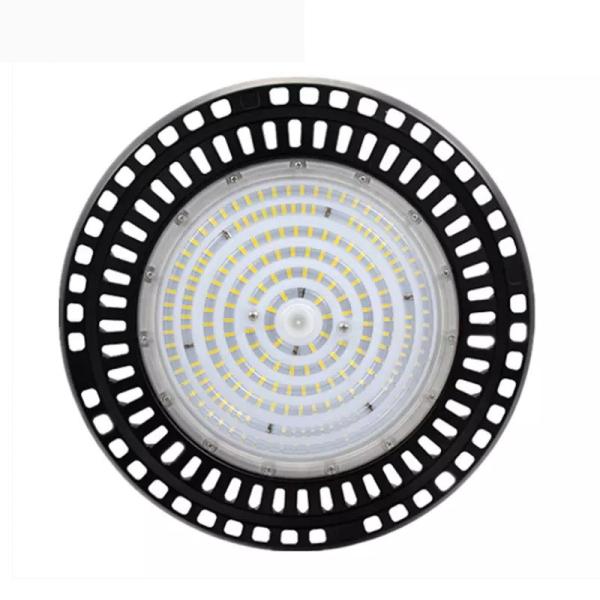

UL ETL 170lm/W/180lm/W/190lm/W/195lm/W 100W/120W/150W/200W/240W UFO LED High Bay Light for Warehouse

Product Description

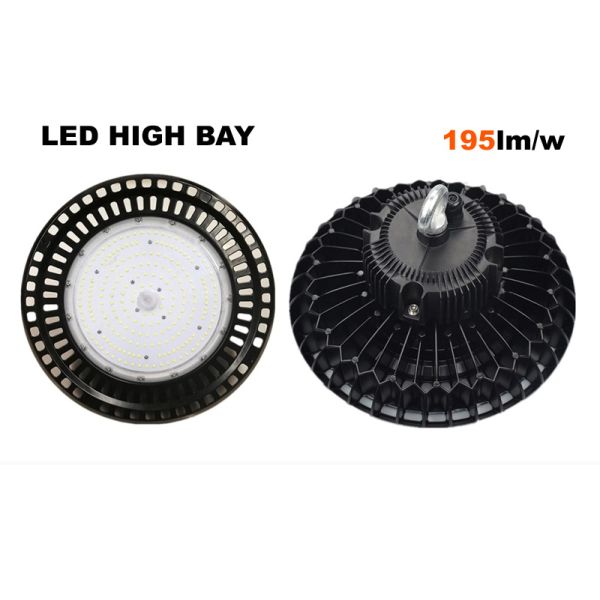

◎ High Lumen: 180-195LM/W
◎ PF>0.95, THD<15, No-flicker
◎ CRI>70Ra/80Ra
◎ Driver Efficiency: 95%
◎ Anti-thunder: 4KV
◎ IK Grade: IK10
◎ Surge Protection: 10KV
◎ LED Junction Temperature: ≤65°C
◎ Working Temperature: -40℃~+60℃
◎ Humidity: 10%~90%RH
◎ Power: 100W 120W 150W

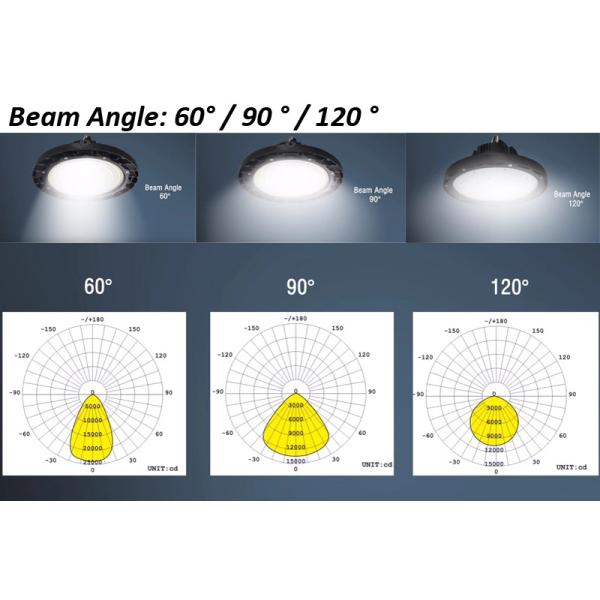

◎ Beam Angle:60°90°120°
◎ Color Temperature: 3000K 4000K 5000K 5700K 6000K 6500K
◎ Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
◎ Material: Die-cast aluminium, Optical lens, stainless screws
◎ Alternative mounting brackets
◎ High Lumen, saving energy and electricity bill
◎ Simple and elegant appearance, anodized housing, durable
◎ Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
◎ Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
◎ All stainless screws prevent bad situation
◎ One-piece PC lens imported from Japan light transmittance>95%
◎ High-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances
◎ Certification: UL, cUL, DLC, ETL,TUV, GS, CB, SAA, FCC, CE, RoHS
◎ Warranty: 5 years

Applications

1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.

Technical Specifications

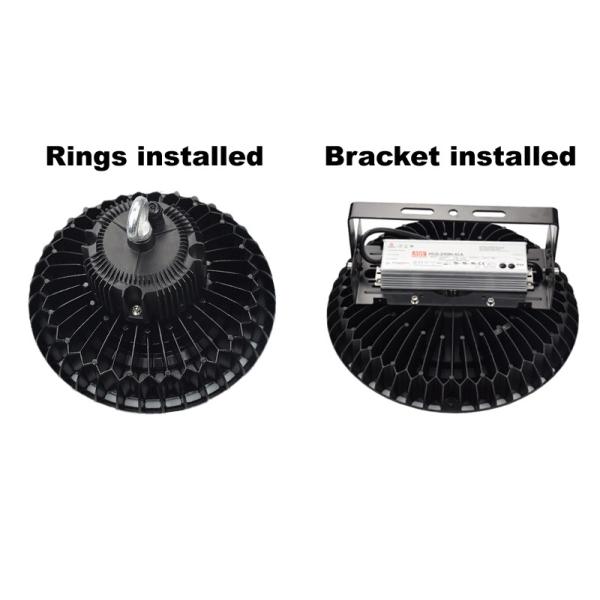

Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount

User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
