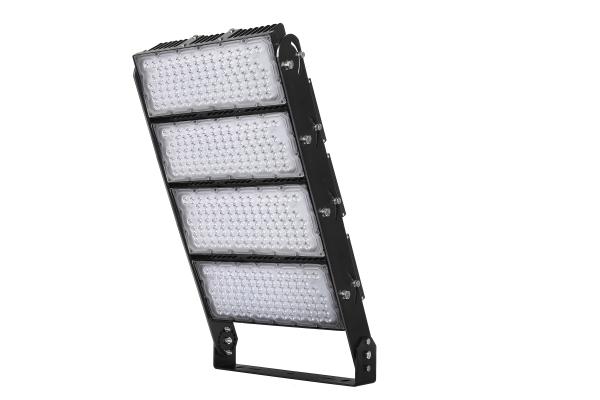

IP67 20KV Security Outdoor LED Flood Lights with Daylight Sensor Optional Function
IP67 20KV Security Outdoor LED Flood Lights with Daylight Sensor Optional Function
Specifications
Brand Name :
ATA
Model Number :
ATA-FL1200W
Certification :
CE, RoHS, SAA, C-Tick, RCM, CB, FCC, PSE, CCC, ETL, TUV-GS, TUV-mark, VDE, ERP, UL, cUL, DLC
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
US $7-80/ Piece
Payment Terms :
T/T, Western Union, Paypal, Cash
Supply Ability :
30, 0000pieces/Month
Delivery Time :
Samples 3-5 working days, normal orders 7-10 working days
Packaging Details :
Pearl Foam Inner Box and K=K Carton
Power :
300w/600w/900w/1200w
Voltage :
100-277V
Driver Brand :
Meanwell
Luminous Efficiency :
150lm/W
Colour(CCT) :
3000K/4000K/5000K/6000K/6500K/RGBW/RGB
LED Type :
SMD3030
CRI :
Ra>80
Beam Angle :
15/25/60/90*120°
Body Colour :
Black/Gray
IP Grade :
IP65
Material :
Die-cast Aluminum, PC lens, Toughened Glass, Silicone Ring
Waterproof testing :
72h
Warranty :
5years
Package :
Pearl Foam Inner Box and K=K Carton
HS Code :
9405409000
Description

IP67 20KV Outdoor LED Flood Lights 300w/400w/600w/1000w/1200w With Zigbbe Control


Technical Specifications

Driver Brand: meanwell HLG/meanwell ELG/SOSEN
Power:300w/600w/900w/1200w
Frequency: 50/60Hz
Input Voltage: 85-265VAC, 100-277VAC, 90-305V, 180-528V also available
Optional Function: Daylight Sensor
Beam Angle: 10°/ 25°/ 60° /90*120 Degree
PF>0.95, CRI >80Ra, THD<15%
Transfer efficiency>85%, pass test of surge 3000V
Surge Protection: 10KV
LED Junction Temperature: ≤65ºC
Working Temperature: -40ºC~+50ºC
Storage Temperature: -40ºC~+70ºC
Humidity: 10%~90%RH
Corrosion-proof grade: Wf2
Anti-wind level: 17hurricane
Waterproof and dustproof grade: IP65
Body Colour: Black / Gray
Material: Die-cast Aluminum, PC lens, Toughened Glass, Silicone Ring
Installation: mounting bracket, screws
Waterproof testing: 72h
Aging testing: 72h
Life-span: 50, 000 hours

LED Type: Lumileds SMD3030/SMD 5050 with LM80 report
Luminous efficiency: 140LM/W/170lm/W
Colour(CCT): 3000k, 4000k, 5000k, 6000k, 6500K

Part No. Power LEDs Lumen Rated voltage CCT Beam angle LED and Driver Brand
LED Sport Light 300W 140LM/W AC100-277V 50/60Hz 3000k 4000k 5000k 6000K 10° 25° 60° SMD5050
LED Sport Light 600W 140LM/W
LED Sport Light 900W 140LM/W Mean well
LED Sport Light 1200W 140LM/W
LED Sport Light 300W 140LM/W AC100-277V 50/60Hz 3000k 4000k 5000k 6000K 60° SMD3030
LED Sport Light 600W 140LM/W
LED Sport Light 900W 140LM/W Mean well
LED Sport Light 1200W 140LM/W
LED Sport Light 300W 140LM/W AC100-277V 50/60Hz 3000k 4000k 5000k 6000K 　　　　　　　　　　　　　　90°*120° SMD3030
LED Sport Light 600W 140LM/W
LED Sport Light 900W 140LM/W Mean well
LED Sport Light 1200W 140LM/W

Product Advantages


PC lens and Tempered Glass Cover with double protection
Special design with adjustable bracket
Stainless Steel Screw with protective cap, being not exposed to the sun, wind and rain, protecting U-shape bracket
Beam angle 15/25/60/90*120°optional

Applications
Widely used in bars, clubs, hotels, stages, park, sculpture, square, parking lot, playground, shopping mall, plazas, exhibition hall, commercial buildings facade, mosques, museums, art galleries, historical buildings, factories, gymnasiums, stadium, isles, yard, advertising boards, billboards, buildings, lawns, national green lighting projects, building facade and public corridor, stair corridor, garden designs and some other indoor and outdoor places where need spot lighting and light decoration,etc


IP67 20KV Security Outdoor LED Flood Lights with Daylight Sensor Optional Function IP67 20KV Security Outdoor LED Flood Lights with Daylight Sensor Optional Function

IP67 20KV Security Outdoor LED Flood Lights with Daylight Sensor Optional Function IP67 20KV Security Outdoor LED Flood Lights with Daylight Sensor Optional Function


User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box

Contact:
Peony Jin
Mobile: 0086-180 0253 2737
Please feel free to send us your inquiry, We are at your service any time!
