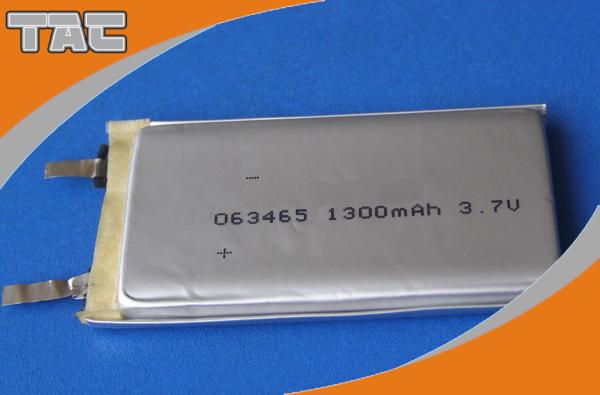

GSP063465 3.7V 1300mAh Polymer Lithium Ion Battery cells with high capacity
GSP063465 3.7V 1300mAh Polymer Lithium Ion Battery cells with high capacity
GSP063465 3.7V 1300mAh Polymer Lithium Ion Battery cells with high capacity
GSP063465 3.7V 1300mAh Polymer Lithium Ion Battery cells with high capacity
Specifications
Place of Origin :
guangzhou
Brand Name :
Tac
Certification :
UL, Rohs
Model Number :
Polymer GSP063465 3.7V 1300mAh
MOQ :
500pcs
Price :
usd 3.0
Packaging Details :
5 pcs sample 3days after order Mass order with stock 15days after T/T Without stock 45days
Delivery Time :
14days after order
Payment Terms :
T/T, LC,Paypal etc.
Supply Ability :
30K/Day
material :
Polymer Lithium Ion Battery
capacity :
1300mah
voltage :
3.7v
circle life :
500 times
warranty :
1 year
size :
6*34*65mm
color :
blue
rechargeable :
yes
Description

GSP063465 3.7V 1300mAh Polymer Lithium Ion Battery cells with high capacity

Advange

The Polymer Lithium Ion Battery (LP) features the following:○ Passed UL, CE tests to ensure products are safe for public use.○Light weight, high capacity, high operation voltage, low self-discharge rate, no memory effect.○ Excellent abuse tolerance and environmentally friendly○ Suitable for a wide variety of applications and system designs.○ Offers an excellent combination of price-performance.Application:Mobile phone, notebook PC, Bluetooth, PDA, MP3/MP4, smart card, portable DVD player, camcorder, UPS, Power tools,LEV, HEV and EV etc.

Specification

No.

Item

Rated Performance

Remark

1

Rated Capacity

Minimum

1300mAh

Standard discharge(0.2C

C5A) after Standard charge

2

Nominal Voltage

3.7V

Mean Operation Voltage

During Standard Discharge

After Standard Charge

3

Voltage at end of

Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.03V

5

AC (1KHz) Impedance

New Cell Max.(mW)

≤50mΩ

6

Standard charge

Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 4.0h

7

Standard discharge

Constant current 0.2 C5A

end voltage 3.0 V

8

Fast charge

Constant Current 1C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 2.5h

9

Fast discharge

Constant current 1 C5A

end voltage 3.0 V

10

Maximum Continuous

Charge Current

1 C5A

11

Maximum Continuous

Discharge Current

1.5 C5A

12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Be Cell

Discharge: -20~60℃

13

Storage Temperature

Range

Less than 1 year: -20~25℃

60±25%R.H.

at the shipment state

less than 3 months: -20~40℃

14

Weight

Approx :43g

Bare Cell

15

Cell Dimension

Length: Max.65.5mm

Initial Dimension

Width: Max.34.5mm

Thickness: Max. 6.2mm

Application

small earphone, bluetooth devices,Cellular phone, camcorder, Lighting, thin size Power Bank, GPS, Portable DVD, PDA, notebook, MP3, MP4, R/C toys, power-driven tools & toy,digital camera, head set stereo, handy terminal, mini disc player

Packing

specially plastical tray, 20 pcs for one tray, 10 traies for one standard carton

GSP063465 3.7V 1300mAh Polymer Lithium Ion Battery cells with high capacity

Other Size Poduction List

Model

Nominal Voltage (V)

Typical Cap.

Dimension(mm)

(mm)

Thickness

Width

Height

073496DHP

3.7

2100

7.8

34

96

LP0567100

3.7

3400

4.8

67

100

LP066166

3.7

2750

6.1

61

66

LP555376

3.7

2300

5.6

53

76

LP085065

3.7

2600

7.8

50

65

LP085080

3.7

3400

8

50

80

LP0845131

3.7

5100

7.5

45

131

LP0831134

3.7

4000

8.1

31

132

LP55100100

3.7

5600

5.5

100

100

LP605590

3.7

3400

6

55

90

LP9051109

3.7

5500

9

51

109

LP9551119

3.7

6800

9.5

51

119

*LP7044125

3.7

4200

7

44

125

*LP7545135

3.7

4500

7.5

45

135

LP704374

3.7

2200

7

43

74

LP854374

3.7

3000

8.5

43

74
