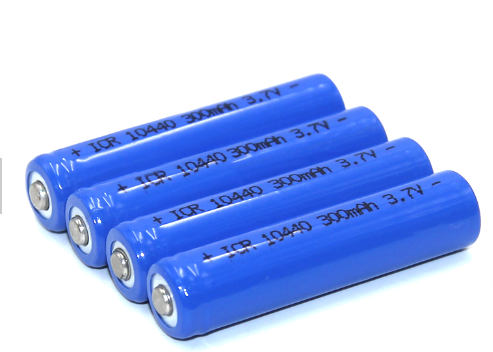

10440 Lithium Ion Cylindrical Batteries 3.7v 320mAh Li-Ion batteries for Cellular phones

Specifications

Place of Origin :

Shenzhen zhuhai

Brand Name :

TAC OEM & ODM

Certification :

MSDS REACH ROHS

Model Number :

3.7V LIR10440 320mAh

MOQ :

500 pcs for single cell , 50pack for battery packs

Price :

Negotiable

Packaging Details :

meet UN38.3 Certification

Delivery Time :

7-10 days after order confirm for stock model

Payment Terms :

100% prepaid before shipping out

Supply Ability :

100000PCS EACH WEEK

type :

Lithium Ion Cylindrical Batteries

voltage :

3.7-4.2v

capacity :

250mah 300mah 320mah

Cycle Life :

500 times

Warranty :

12 Months

Dimension :

10 * 44 mm

Net Weight :

18.5-19g

Description

10440 Lithium Ion Cylindrical Batteries 3.7v 320mAh Li-Ion batteries for Cellular phones

Features for 10440 Lithium Ion Cylindrical Batteries 3.7v 320mAh Li-Ion batteries for Cellular phones

Lithium ion (Li-ion) batteries LIR10440/AAA and the size is D:10mm,H:44mm
The normal capacity is 320mAh, mini capacity is 300mah ,voltage is 3.7V. full charged voltage is 4.2v
Full High Capacity in 10% International Tolerance
Protection Function is including of Over Charge, Over Discharge, Over Current, Short Circuit,etc.

Specification for 10440 Lithium Ion Cylindrical Batteries 3.7v 320mAh Li-Ion batteries for Cellular phones

10440 Lithium Ion Cylindrical Batteries 3.7v 320mAh Li-Ion batteries for Cellular phones

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	330mAh	Standard discharge(0.2C5A) after Standard charge
1	Rated Capacity	Minimum	316mAh	Standard discharge(0.2C5A) after Standard charge
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of Discharge	3.0V		Discharge Cut-off Voltage
4	Charging Voltage	4.2V
5	Internal Impedance	≤120mΩ		Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
6	Standard charge	Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off
7	Standard discharge	Constant current 0.2C5A end voltage 3.0V

8	Fast charge	Constant Current 1.0C5A Constant Voltage 4.2V 0.01 C5A cut-off
9	Fast discharge	Constant current 1.0C5A end voltage 3.0V
10	Maximum Continuous Charge Current	1.0 C5A
11	Maximum Continuous Discharge Current	1.5 C5A
12	Operation Temperature Range	Charge: 0~45℃	60±25%R.H. Bare Cell
12	Operation Temperature Range	Discharge: -10~60℃	60±25%R.H. Bare Cell
13	Storage Temperature Range	Less than 1 year: -20~25℃	60±25%R.H. at the shipment state
		less than 3 months: -20~40℃
		Less than 7 day : -20~60℃
14	Cell Dimension	High:44.0±0.2 mm	Initial Dimension
14	Cell Dimension	Diameter:10.0±0.5 mm	Initial Dimension

Application for 10440 Lithium Ion Cylindrical Batteries 3.7v 320mAh Li-Ion batteries for Cellular phones

Flashlight, Toy, Laser Pointer, Household Applications, digital camera etc.

The batteries can be integrated into a connected medical device.
