Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
Specifications
Place of Origin :
Shenzhen zhuhai
Brand Name :
TAC OEM ODM
Certification :
MSDS REACH ROHS
Model Number :
PIFC0345
MOQ :
200PCS
Price :
usd 3
Packaging Details :
Follow UN38.3 Rule
Delivery Time :
7 days for single cell 15-20 days for battery pack
Payment Terms :
TT, LC, Pay pal etc
Supply Ability :
50000 pack for one week
type :
3.2V LiFePO4 Battery
capacity :
3200mah
voltage :
3.2v
circle life :
2000 times
warranty :
1 year
pvc color :
blue
size :
26*65mm
assemble :
workable
Description

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike Battery Pack

Features for Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike Battery Pack

  1. We have IFR26650 3000mAh/3200mAh/3300mAh/3400mAh for your choice.
  2. The single cell with standard size can use for wide application
  3. High capacity,and the low self discharge.
  4. Excellent abuse tolerance and environmentally friendly
  5. Excellent calendar life, 10X cycle life vs. conventional lithium ion
  6. With greater power and energy density and lower impedance.
  7. Suitable for a wide variety of applications and system designs.
  8. Proven performance in the toughest conditions, combining durability, reliability, and safety
  9. Offers an excellent combination of price-performance.

Application For Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike Battery Pack

  1. Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
  2. Portable high power devices
  3. Stationary battery backup systems
  4. Grid stabilization energy storage systems
  5. Commercial truck and bus hybrid electric vehicles (HEVs)

Battery Specification:

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

No.

Items

Specifications

1

Charge cut-off voltage

3.65V

2

Nominal voltage

3.2V

3

Minimal capacity

3200mAh @ 0.2C Discharge

4

Nominal capacity

3150mAh @ 0.2C Discharge

5

Charge current

1C

6

Standard charging method

1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

7

Charging time

Standard charge: 2.0 hours Ref

8

Max. charge current

2C

9

Max. continue discharge current

10A (Cell skin temperature cannot exceed 80°C)

10

Discharge cut-off voltage

2.0V

11

Operating temperature

Charging: -10°C ~ 45°C

Discharging: -20°C ~ 60°C

(Cell skin temperature cannot exceed 80°C)

12

Storage temperature/humidity

Temperature -10°C ~ +35°C

Humidity 65%±20%RH

(Recommended to store 23 ± 5°C for long term storage)

13

Cell Weight

80.0g±1.0g

14

Cell Dimension

Length: 65.0±0.3 mm

Width: 26.2±0.2 mm

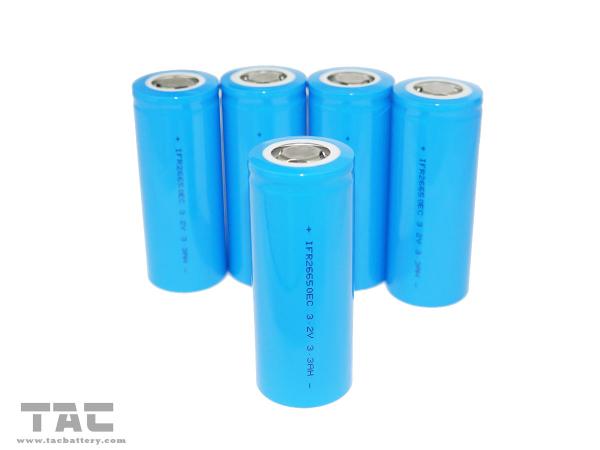

Pictures for Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

Package

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
