Specifications
Place of Origin :
shenzhen
Brand Name :
TAC
Model Number :
PEBM0052
MOQ :
20 SET
Price :
usd110 each pack
Packaging Details :
1pcs/box, 1 box for each carton
Payment Terms :
L/C T/T paypal
Supply Ability :
1000/month
Certification :
UL/ROHS/CE
Delivery Time :
20 days after order
material :
lithium-ion
voltage :
24v
capacity :
10ah
circle life :
300-500times
warranty :
12months
outer shell :
plastic
weight :
2.99±0.2 Kg
color :
sliver
size :
350mm×150mm×50mm
Description

Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack

Feature

1. Shell Size(Unit:mm):350mm×150mm×50mm

2. Input:AC100V--240V～1.4A MAX 47Hz-63Hz

3. Output:DC 29.4V—1.8±0.2A

4. Status of Indicator:Green light — Full of power or no-load state

Red light — Under charging status

5. Charging time:5-6hours

6. Operating temperature:0 ℃ ----+ 40℃

7. Storage temperature:-40℃ -----+55℃

8. Operating Moisture:RH20% ~85%

9. Storage Moistrue:RH10%~95%

Specification For Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

10Ah

Standard discharge(0.2 C5A)

after Standard charge

Minimum

9.8Ah

2

Nominal output Voltage

26.6V

3

Max. output Voltage

29.4±0.14V

4

Min. output Voltage

21±0.14V

5

Cell Discharge Protection Voltage

2.7V±0.1V

6

Cell Overcharge Protection Voltage

4.25V±0.05V

7

Charging Voltage

29.4V

8

Charging Current

1.8±0.2A

9

Max. Discharge Current

20A

10

Fuse

30A

11

Operating Temperature

Discharge Operating: -20℃～45℃,

Charge Operating: 0℃～40℃

12

Weight

2.99±0.2 Kg

Application

The lithium -ion battery pack design for the E-bike, suitable Back Seat type

Outer Packing

The battery pack cozy up to the thicken sponge one by one , and then put into the export stronge outer carton, 1 pack for each carton

Delivery date:

15 days for normal current model

25-35 days for OEM model

Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, suggested you should carry on additional charge to the battery.

Pictures:

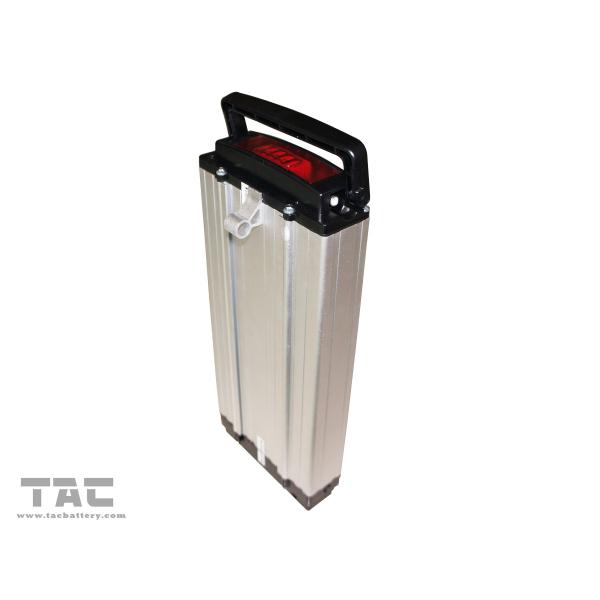

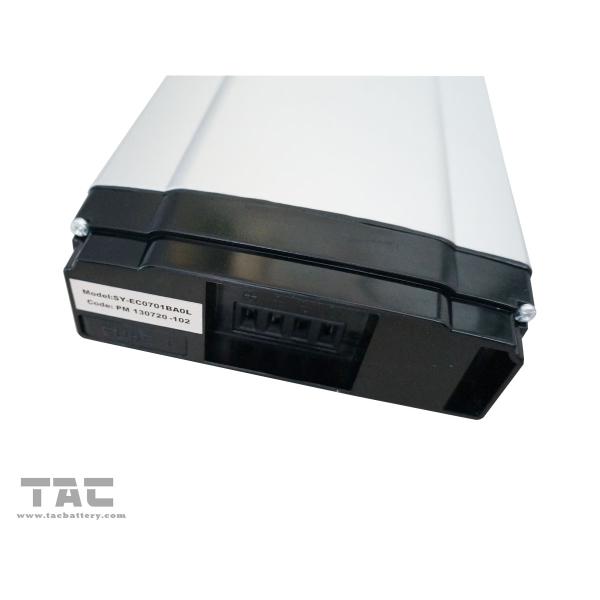

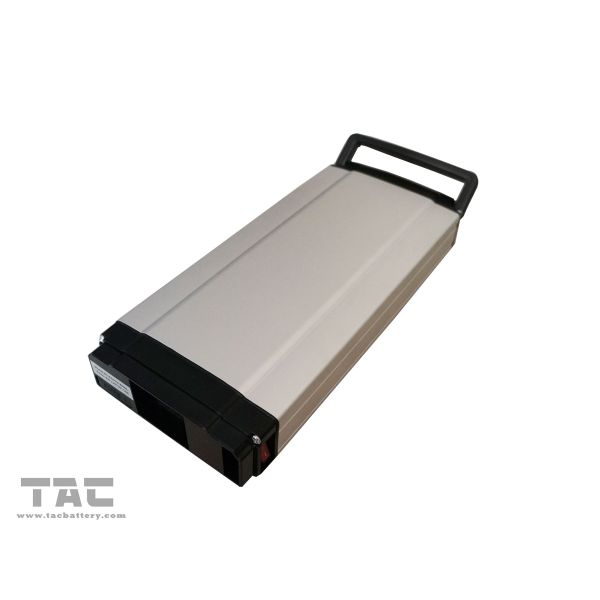

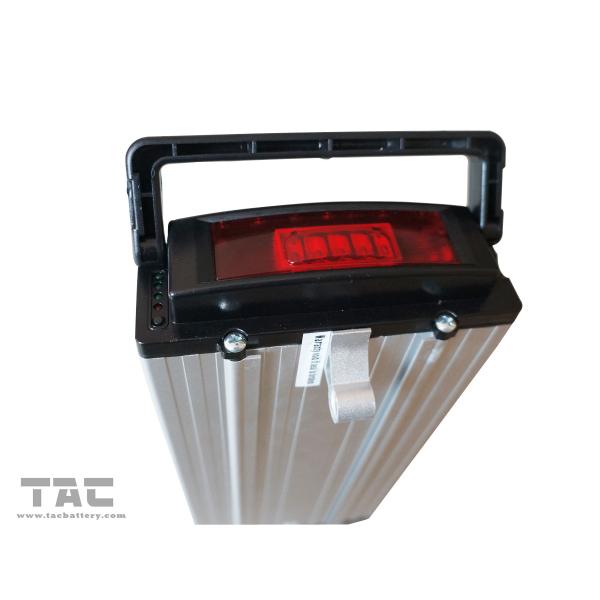

Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack

Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack

Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack

Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack

Back Seat 24V 10AH Rechargeable Li-ion Electric Bike Battery Pack
