Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC
Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC
Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC
Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC
Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC
Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC
Specifications
Place of Origin :
shenzhen
Brand Name :
TAC
Certification :
UL,ROHS
Model Number :
PIFP0099
MOQ :
20 SET
Price :
Price Negotiable
Packaging Details :
2pcs/carton
Delivery Time :
14Days
Payment Terms :
TT, LC, Paypal, etc
Supply Ability :
100Piece/days
Description

Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC

Quick Detail:

  1. Bottle type 36V 11Ah available too.
  2. Long cycle life, no memory, environment friendly
  3. Cell: Agrade cell to make sure batteries in high and full capacity
  4. Protection: Dual IC chips that can anti-short circuit, anti-over charge, anti-over current, anti-overload.

Specification:

No.

Item

General Parameter

Remark

1

Rated Capacity

9.0Ah

Standard discharge(0.2C5)after standard charge(0.2C5)

2

Minimal Capacity

8.5Ah

3

Nominal Voltage

36.0V

4

Cycle Life

Residual capacity is more than 60% of the rated capacity

◆Charge: CC@0.2C to 42.0V, then CV till current to 0.05 C5

◆Rest: 30min.

◆Discharge: 0.2 C5 to 30.0V

◆Temperature:20±5℃

◆Carry out 500 cycles

5

Discharge cut-off voltage

30.0V

30.0V (recommended)

6

Charging cut-off voltage

42.0V

42.0V (recommended)

7

Assembly method

INR18650EC-2.2AH

10S4P

8

Housing material

Aluminium alloy &ABS+PC

9

Standard charge

0.2 C5 constant current (CC) charge to 42.0V,then constant voltage (CC)42.0V charge till charge current decline to ≤0.05 C5

Charge time : Approx 7.0h

10

Standard discharge

Constant current 0.2 C5

Cut-off voltage 30.0V

11

Maximum Charge Current

4.5A

2A recommended for better performance and life

12

Continuous Discharge Current

7.0A

Over current 50±10A (5ms~20ms)

13

Operation Temperature Range

Charge: 0~55℃

60±25%R.H.

Discharge: -10~60℃

14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃

15

Approx. Weight

Approx 3.0Kg

16

Dimension

Height: Approx 410.0mm

Diameter: Approx 98.0 mm

17

Short Circuit Protection

Will recover after recharge

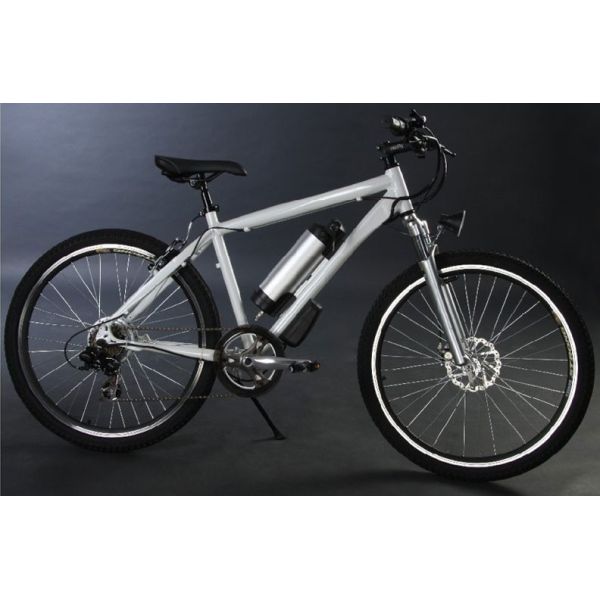

Application for E-bike:

Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC

Eco Friendly 36V Electric Bike Battery Pack 8.8Ah With Protection IC
