High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
Specifications
Place of Origin :
shenzhen
Brand Name :
TAC
Certification :
UL,ROHS
Model Number :
PIFP0210
MOQ :
20 SET
Price :
usd 300-500
Packaging Details :
1pcs/carton.5 box for one carton
Delivery Time :
14Days after order confirm
Payment Terms :
TT, LC, Paypal, etc
Supply Ability :
100Piece/days
Rated Capacity: :
24Ah
Maximum Continuous Charge Current :
5A
Battery Tpye: :
Replacement
Voltage :
12v
circle life :
1500 times
warranty :
12 months
pvc :
BLUE
bms :
including
Description

High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

Character for High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

  1. Rated Capacity: 24Ah; Nominal Voltage: 12V ,the battery pack assembled IFR26650 3000MAH 3.7V High power
  2. The battery pack with high level battery manage system
  3. Application for Solar Product and various portabel back up
  4. Have a long cycle life about 2000 times.base on DOD 80%

Specification:

No.

Item

Rated Performance

Remark

1

Rated Capacity

Typical

24AH

Standard discharge(0.2C C5A) after Standard charge

Minimum

23.7AH

2

Nominal Voltage

14.8V

Mean Operation Voltage During Standard Discharge After Standard Charge

3

Voltage at end of

Discharge

12V

Discharge Cut-off Voltage

4

Charging Voltage

16.8V

6

Standard charge

Constant Current 0.2C5A

Constant Voltage 29.2V

0.05 C5A cut-off

Charge time : Approx 2.4.h

7

Standard discharge

Constant current 0.2 C5A

end voltage 20.0V

8

Maximum Continuous Charge Current

5A

9

Maximum Continuous Discharge Current

10A

10

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell

Discharge: -20~60℃

11

Storage Temperature

Range

Less than 1 year: 0~25℃

60±25%R.H.

at the shipment state

less than 3 months: -5~35℃

12

Weight

Approx 5.5KGg

PVC pack

13

Cell Dimension

High:90mm

Width: 85mm

Length: 265mm

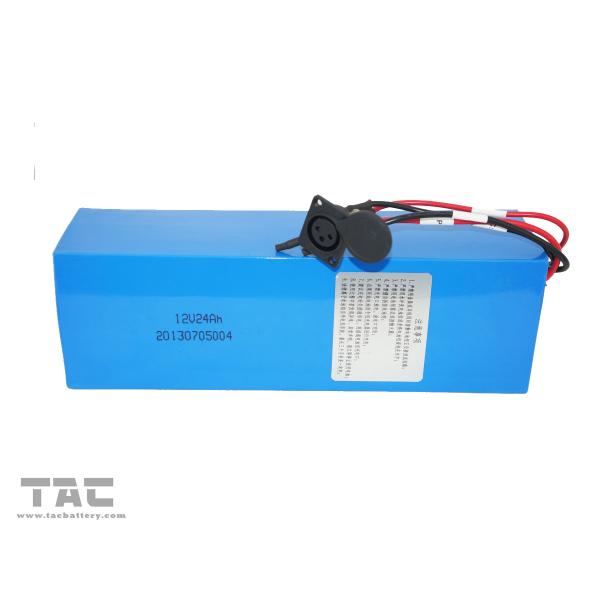

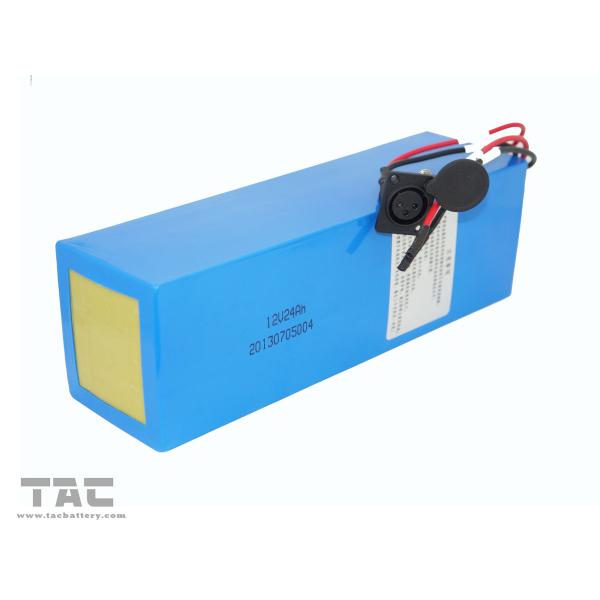

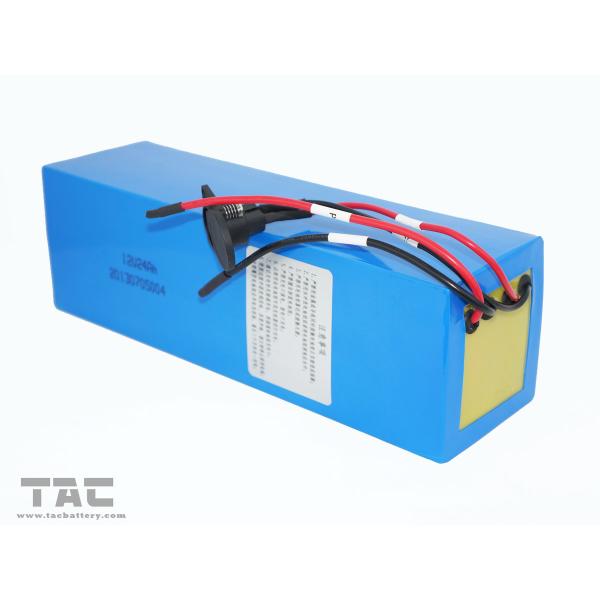

Pictures:

High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

The Lifepo4 Battery Pack passed UN38.3 Certification for below itme to prove the safer

Environmental and Mechanical Test

No. Items Test Method and Condition Criteria
1 Vibration test After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz and 55Hz, the excursion of the vibration is 1.6mm. The cell shall be vibrated for 30 minutes per axis of x, y axes.

No leakage

No fire

No explosion
2 Drop test The battery to be fully charged with standard charging condition, and dropped from a height of 1m to concrete floor for 6 times (+/- direction on x, y axes).

No leakage

No fire

No explosion
3 Impact test The battery to be fully charged with standard charging condition, and put a rod with diameter = 15.8mm on the cell, and then heavy block (weight = 9.1Kg) crash on the cell from a certain height (height = 61.0cm).

No explosion

No fire
4 Crush test Cell is to be crushed between two flat surfaces, the crushing is to be continued until applied force of 13 kN, and once the maximum force has been obtained it is to be released. Measure its temperature and observe event.

No explosion

No fire
5 Shock test

The battery to be fully charged with standard charging condition,

and subjected to 6 shocks/axis, 18 total, of peak acceleration of

150g and pulse duration of 6 ms.

No explosion

No fire

No leakage

The Battery Pack Can be Used for Below Application

High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

Packing Detail

High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

Maybe you are interested in more model for Lifepo4 Battery Pack

High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing
