High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator
Specifications
Place of Origin :
guangzhou
Brand Name :
TAC
Certification :
UL, Rohs
Model Number :
LP052030
MOQ :
500pcs
Price :
usd 0.5 each pcs
Packaging Details :
5 pcs sample 3days after order Mass order with stock 15days after T/T Without stock 45days
Delivery Time :
14days after order
Payment Terms :
T/T, LC, Paypal etc.
Supply Ability :
30K/Day
type :
polymer battery
vol :
3.7v-4.2v
capacity :
260-2600mah
circle life :
500 times
warranty :
12 months
pcb :
with or without
connector :
with or without
Description

High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator


Production Description for High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator

No.

Item

Rated Performance

Remark

1

Rated Capacity

Minimum

200-260mAh

Standard discharge(0.2C C5A)
after Standard charge

2

Nominal Voltage

3.7V

Mean Operation Voltage During Standard Discharge After
Standard Charge

3

Voltage at end of
Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.03V

5

AC (1KHz) Impedance
New Cell Max.(mW)

≤80mΩ

6

Standard charge

Constant Current 0.5C5A
Constant Voltage 4.2V
0.01 C5A cut-off

Charge time : Approx 4.0h

7

Standard discharge

Constant current 0.2 C5A
end voltage 3.0 V

8

Fast charge

Constant Current 1C5A
Constant Voltage 4.2V
0.01 C5A cut-off

Charge time : Approx 2.5h

9

Fast discharge

Constant current 1 C5A
end voltage 3.0 V

10

Maximum Continuous
Charge Current

1 C5A

11

Maximum Continuous
Discharge Current

1.5 C5A

12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.
Be Cell

Discharge: -20~60℃

13

Storage Temperature
Range

Less than 1 year: -20~25℃

60±25%R.H.
at the shipment state

less than 3 months: -20~40℃

14

Weight

Approx :15g

Bare Cell

15

Cell Dimension

Length: Max.30mm

Initial Dimension

Width: Max.20mm

Thickness: Max. 5.5mm

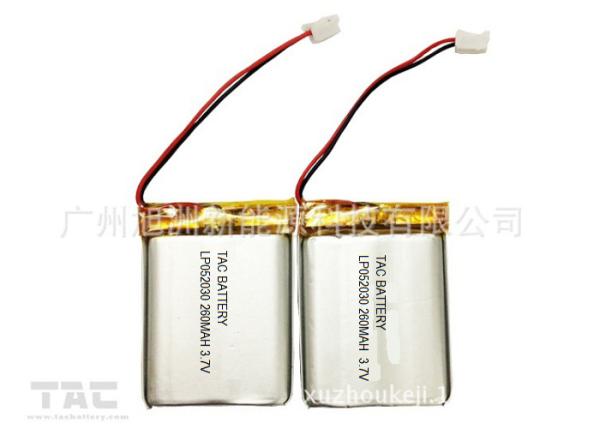

Pictures:

High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator




High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator

High Capacity LP052030 3.7V 260mAh Polymer Lithium Ion Batteries for Communicator

There are two model options for 200-270mah cell to meet your size require .

MODEL CAPACITY MIN CAPACITY INNER RESISTANCE VOLTAGE PERFORMANCE MAX SIZE/mm
mAh mAh mΩ V charge current discharge current T W H
042030 200 200 150 3.7 ≤1C ≤1C 4.1 20.5 30.5
452530 270 270 100 3.7 ≤1C ≤1C 4.5 25.5 30.0


Application

Global localization satellite GPS, Bluetooth, portable type media products(Mp3, Mp4, DVD), notebook, tablet PC, the electronic toy, e-bike, model ship, the power tool, camera, the multi-purpose PDA telephones.


Feature for polymer rechargeable battery



Design and develop products according to customer's requirements and expectations

Safer

Higher energy density

Higher capacity

Small inner resistance

Thinner

Lighter

1. Light weight, high capacity, low inner resistance, good discharge performance.

2. High energy density, no memory effect, no pollution, has good plastic style.

3. Use polymer material, cell no explode, no burn, applied range is wide.


There are a variety of model, various capacity to choose from.

Model

Nominal Voltage (V)

Typical Cap.

Dimension(mm)

(mm)

Thickness

Width

Height

073496DHP

3.7

2100

7.8

34

96

LP0567100

3.7

3400

4.8

67

100

LP066166

3.7

2750

6.1

61

66

LP555376

3.7

2300

5.6

53

76

LP085065

3.7

2600

7.8

50

65

LP085080

3.7

3400

8

50

80

LP0845131

3.7

5100

7.5

45

131

LP0831134

3.7

4000

8.1

31

132

LP55100100

3.7

5600

5.5

100

100

LP605590

3.7

3400

6

55

90

LP9051109

3.7

5500

9

51

109

LP9551119

3.7

6800

9.5

51

119

LP7044125

3.7

4200

7

44

125

LP7545135

3.7

4500

7.5

45

135

LP704374

3.7

2200

7

43

74

LP854374

3.7

3000

8.5

43

74

Pakage Standard
