IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light
IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light
IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light
IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light
Specifications
Brand Name :
TAC OEM ODM
Model Number :
IFM12.8V12Ah
Certification :
MSDS REACH ROHS
Place of Origin :
SHENZHEN
MOQ :
50 PCS
Price :
usd 100-200
Payment Terms :
L/C, T/T, Western Union,Paypal
Delivery Time :
7-25 days after order confirm
Packaging Details :
1pcs for one bag with UN38.3
Supply Ability :
50000pcs
Brand Name: :
TAC-PIFP0748
Model Number: :
12.8V12Ah
Nominal Voltage: :
12.8V
Rated Capacity: :
12AH
Type: :
LiFePO4 Lithium Battery
Size: :
T33:W320:H272mm
circle life :
2000 times
warranty :
1 year
Description

IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P for Solar Street Light

Feature for IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P for Solar street light

1. IFM12.8V12Ah LiFePo4 Battery Pack made by IFR 26650 3AH 3.2V via assembled in 4S4P.

2. Safe battery pack with battery manager system

3. Standard size for 26650 meet various application

4. Long cycle life: over 2000 times charge and discharge circle

5. No pollution,eco-friendly passed Rohs

8. MOQ: 2set for samples and 50set for Mass production are workable

Quick Detail:

Model Number: 12.8V12Ah Brand Name: TAC-PIFP0748
Nominal Voltage: 12.8V Rated Capacity: 12AH
Type: LiFePO4 Lithium Battery Size: T33:W320:H272mm
Weight: 1.4KG Certification UN, ROHS, REACH Compliance
OEM & ODM: Support Warranty: 12months

IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P Cell Specification:

No. Items Specifications
1

Nominal Capacity

 3000mAh
2

Minimum Capacity

 2940mAh
3

Nominal Voltage

 3.2V
4

Delivery voltage

 3.2~3.3V
5

Charge Voltage

 3.65V±0.03V
6

Standard charging method

 0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7

Charge current

 0.2C 600mA
0.5C 1500mA
8

Standard discharging method

 0.2C constant current discharge to2.0V,
9

Cell Internal Impedance

 ≤40mΩ

IFM12.8V12Ah LiFePO4 Battery Pack 26650 4S4P Application:

  1. Solar street light
  2. Such as e-bike
  3. Scooter
  4. Electric tool
  5. Electric drill
  6. Electric saw
  7. Small medical equipment
  8. Portable equipment

IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

Packing Detail

IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

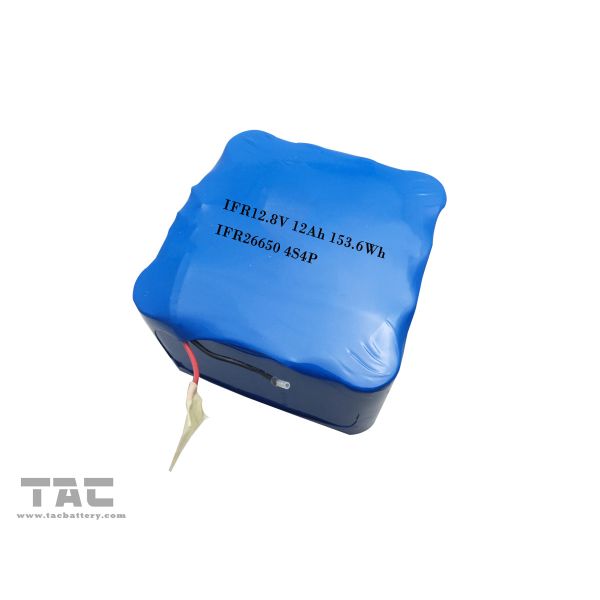

Picture for 12.8V12Ah LiFePo4 Battery Pack:

IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

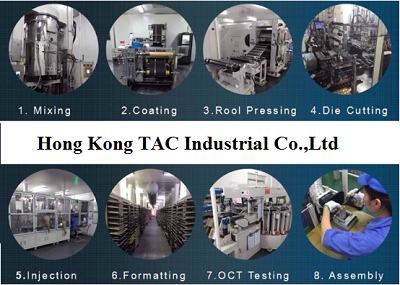

Quality Control

we check the voltage and internal resistance of each cell , to ensure the difference among the cells are within the required value to keep the high consistency for battery pack

IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

Period of Warranty

The period of warranty is 12 months from the date of shipment. TAC guarantees to give a

replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

Storing the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that battery to be charged once each three months to prevent over-discharge
