INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV
Specifications
Brand Name :
TAC OEM & ODM
Model Number :
36V 10AH
Certification :
MSDS REACH ROHS
Place of Origin :
Shenzhen zhuhai
MOQ :
500 pcs for single cell , 50pack for battery packs
Price :
usd 200
Payment Terms :
100% prepaid before shipping out
Supply Ability :
100000PCS EACH WEEK
Delivery Time :
7-10 days after order confirm for stock model
Packaging Details :
meet UN38.3 Certification
Model Number: :
PIFP
Brand Name: :
TAC
Nominal Voltage: :
36V
Rated Capacity: :
10AH
Type: :
Li-ion battery pack
Size: :
L190:W73:H68mm
Certification: :
UL,ROHS,CE,CK ,BIS. for cell
OEM & ODM: :
Support
Warranty: :
12Months
circle life :
2000times
Description

INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV

Feature For INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV

  1. Li(NiaCobMnc)O2(Ternary Material)Li-ion battery INR18650 Cell
  2. 100% truth capacity with IEC standard

  3. Meet Big discharge current application :Continuous Discharge Current: 4A and Max discharge current :10A (5 Second)

  4. 500Times circle life

Product Specification

No.

Item

General Parameter

Remark
1

Rated Capacity

 10.4Ah

Standard discharge(0.2C)after standard charge(0.2C)
2

Minimal Rated

Capacity

 9.7Ah
3

Nominal Voltage

 36V 3.6V/Cell 10S6P
4

Cycle Life

 Higher than 60% of the Initial Capacity of the Cells

◆Charge: CC@0.2C to 42.5V, then CV till current to 0.05C

◆Rest: 30min.

◆Discharge: 0.2C to 27.5V

◆Temperature:20±5℃

◆Carry out 500cycles
5

Discharge cut-off voltage

 27.5V 2.75V/cell
6

Charging cut-off voltage

 42.5V 4.25V/cell
7

Cell and assembly method

 INR18650-2.6AH 10S4P
8

Packing material

 PVC
General Parameter For Circle

No.

Item

General Parameter

Remark
9

Standard charge

0.2C constant current(CC) charge to 42.5V,then constant voltage (CC)42.5V charge till charge current decline to ≤0.05C

Charge time : Approx 7h
10

Standard discharge

Constant current 0.2C

Cut-off voltage 27.5V
11

Maximum Charge Current

 2A
12

Continuous Discharge Current

 4A

Max discharge current

 10A---5 seconds
13

Operation Temperature Range

 Charge: 0~45℃

60±25%R.H.
Discharge: -20~55℃
14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃
15

Weight

 Approx/: 2.90Kg
16

Pack Dimension

 H/: 68mm

W/: 73mm
L/:190mm

Packaging & Delivery:

The battery pack were packed by thick sponge one by one ,and then put into plastical bag , and then put into standard inner box , 2 box in one export carton similar with below

INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV

Application for INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV

  1. Big high power Medical equipments
  2. EV E-CAR ,E-Scooter
  3. Small household appliances
  4. Electric tools
  5. Sound device

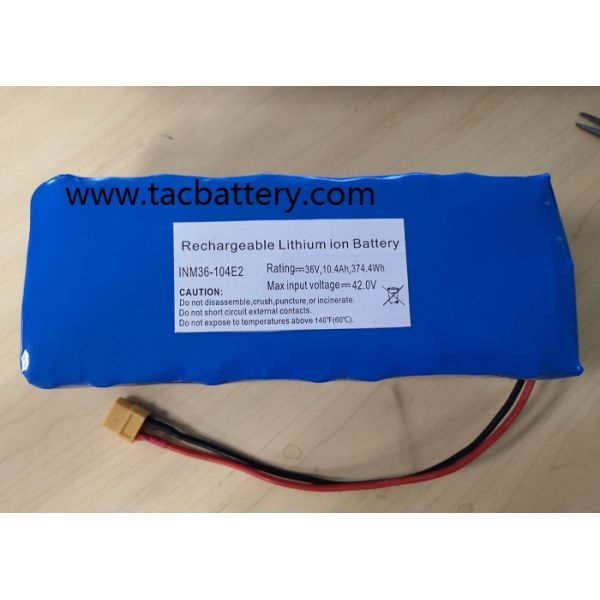

Picture for INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV

INR18650 Li-ion Battery Pack 36V 10AH with high power dishcarge current For EV

The Cell INR 18650 Can Be Assembled To Various Battery pack

Also we can support same 18650 size for LIFEPO4 battery pack
