Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe
Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe
Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe
Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe
Specifications
Brand Name :
TAC
Model Number :
36V 10Ah
Certification :
UL,ROHS
Place of Origin :
shenzhen
MOQ :
20 SET
Price :
usd 194
Payment Terms :
TT, LC, Paypal, etc
Supply Ability :
100Piece/days
Delivery Time :
14Days
Packaging Details :
2pcs/carton
Model Number: :
36V 10AH
Brand Name: :
TAC
Nominal Voltage: :
36V
Rated Capacity: :
10AH
Type: :
Lithium Battery
Size: :
H420:D110mm
Weight: :
3.5kg
Certification: :
UL,ROHS
OEM & ODM: :
Support
Warranty: :
12months
Description

Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe

No. Item General Parameter Remark
1 Rated Capacity 10Ah Standard discharge(0.2C5)after standard charge(0.2C5)
2 Minimal Capacity 9.5Ah
3 Nominal Voltage 36.0V
4 Cycle Life Residual capacity is more than 60% of the rated capacity

Charge: CC@0.2C to 42.0V, then CV till current to 0.05 C5

Rest: 30min.

Discharge: 0.2 C5 to 30.0V

Temperature:20±5℃

Carry out 500 cycles
5 Discharge cut-off voltage 30.0V 30.0V (recommended)
6 Charging cut-off voltage 42.0V 42.0V (recommended)
7 Assembly method INR18650EC-2.2AH 10S4P
8 Housing material Aluminium alloy &ABS+PC
9 Standard charge 0.2 C5 constant current (CC) charge to 42.0V,then constant voltage (CC)42.0V charge till charge current decline to ≤0.05 C5 Charge time : Approx 7.0h

The charge and discharger performance

Standard discharge

Constant current 0.2 C5

Cut-off voltage 30.0V
Maximum Charge Current 4.5A 2A recommended for better performance and life
Continuous Discharge Current 7.0A Over current 50±10A (5ms~20ms)
Operation Temperature Range Charge: 0~55℃

60±25%R.H.
Discharge: -10~60℃
Storage Temperature Range Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state
Less than 3 months:-5~35℃
Approx. Weight Approx 3.5Kg
Dimension Height: Approx 420.0mm
Diameter: Approx 11.0 mm
Short Circuit Protection Will recover after recharge

Application

This is specially model for E- bike, the battery pack with shell and lock to prove the safe

Delivery date

15days for current model after the customer confirm the order

25-35 days for OEM model after the customer arrange the payment

Package

each battery pack put into thick foam box , and then put into 7 level extro- thick export carton

Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe

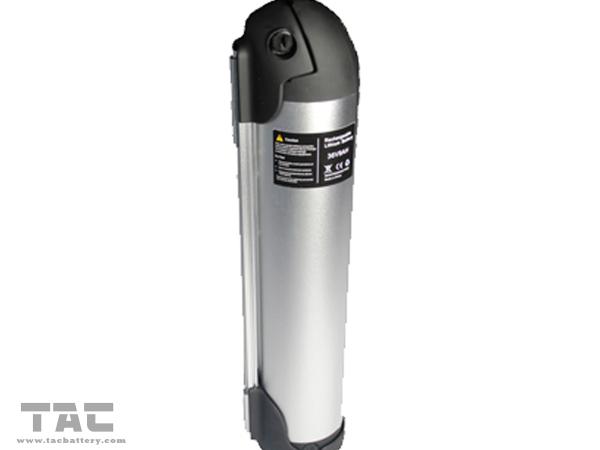

Picture Show Figure:

Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe
