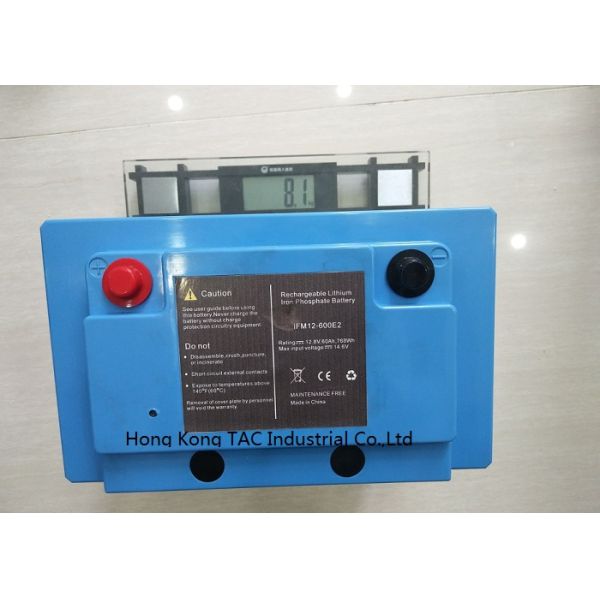

12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production
12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production
12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production
12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production
12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production
12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production
Specifications
Brand Name :
TAC OEM ODM
Model Number :
12V 60AH IFR26650
Certification :
MSDS REACH ROHS
Place of Origin :
SHENZHEN
MOQ :
50 PCS
Price :
300-500
Packaging Details :
1pcs for one bag with UN38.3
Delivery Time :
7-25 days after order confirm
TYPE :
LifePO4 Pack
capacity :
60ah
voltage :
12.8v
PO NO :
PIFP0960
circle life :
2000 times
warranty :
12 months
housing color :
blue
housing material :
abs+pc
size :
95*65*150mm
Description

12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production

Specification for 12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production

Item

General Parameter

Remark

Rated Capacity

 60Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)

Minimal Rated

Capacity

 58Ah

Nominal Voltage

 12.8V

Cycle Life

 Higher than 60% of the Initial Capacity of the Cells

◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C

◆Rest: 30min.

◆Discharge: 0.2C to 10.0V

◆Temperature:20±5℃

◆Carry out 2000cycles

Discharge cut-off voltage

 9.2V

Charging cut-off voltage

 14.8V

Cell and assembly method

 IFR26650EC-3.3AH 4S19P

Housing material

ABS+PC housing/

Item

General Parameter

Remark

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V

Maximum Charge Current

 20A

Continuous Discharge Current

 30A

Operation Temperature Range

 Charge: 0~45℃

60±25%R.H.
Discharge: -10~60℃

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃

Weight

 Approx/:7.5Kg

Max.Dimension

 Height:246mm
Width: 158mm
Length: 260mm

Packaging & Delivery

the battery pack protected by specially foam shelf and follow un38.3

1 set of one standard export carton

12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production

Shipped in 20 days after payment for standard model

30 days for OEM order

Application for 12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production

  1. Solar street light
  2. Such as e-bike
  3. Scooter
  4. Electric tool
  5. Electric drill
  6. Electric saw
  7. Small medical equipment
  8. Portable equipment
  9. Electric hand stacker (hand forklift)

Advantages for 12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production:

  1. Deep circle life – 3000times base on 80% DOD, 10 times more than lead acid batteries
  2. Support Fast charging - about 4~6 hours to be fully charged
  3. Lighter weight - 1/2~1/4 in weight compared to LA batteries
  4. Better safety - BMS inside pack, mild warm, no explosion and firing, free of leakage

Similar Model for Solar Power And Battery Storage Lifepo4 IFR26650EC-3.3AH 12V

Type Nominal Voltage Nominal Capacity Height Width Weight Max Discharging Current
IFM48V10AH 48V 10Ah 1U 19'' 6.6Kg 10A
IFM48V25AH 48V 10Ah 2U 19'' 13.0KG 25A
IFM48V40AH 48V 40Ah 2U 19'' 28.0Kg 30A
IFM48V50AH 48V 50Ah 2U 19'' 28.5Kg 35A
IFM96V20AH 96V 20Ah 2U 19'' 29.0Kg 35A

Similar Picture for 12v Battery Pack

12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production

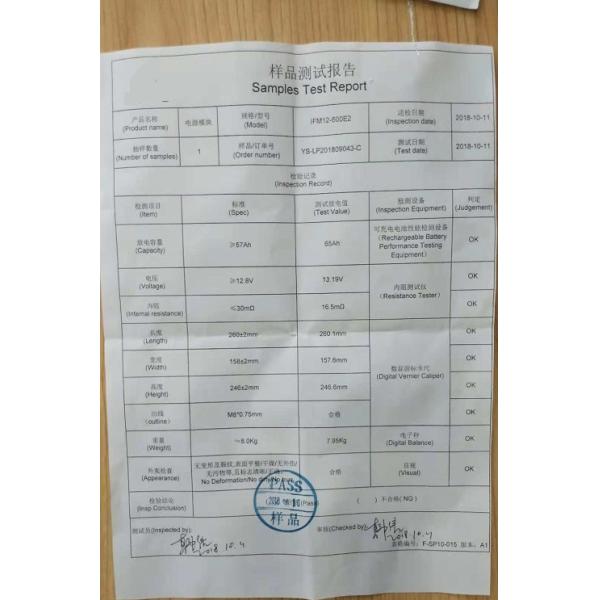

Test Report

The test report for 12v 60ah

12V 60AH LifePO4 Battery Pack For Portable Back UP And Solar Production
