12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS
12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS
12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS
12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS
Specifications
Brand Name :
TAC OEM ODM
Model Number :
IFM26650 12.8V 9.9AH
Certification :
MSDS REACH ROHS
Place of Origin :
SHENZHEN
MOQ :
50 PCS
Price :
USE 500
Packaging Details :
1pcs for one bag with UN38.3
Delivery Time :
7-25 days after order confirm
Material :
LIFEPO4 12V Battery Pack
Capacity :
9.9ah
voltage :
12.8v
circle life :
2000 times
warranty :
12months
pvc :
blue
bms :
including
wire and connector :
OEM
PO NO :
PIFP0955
Description

12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS

Feature for 12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS

1. Deep circle Long life 1500-2000times

2. The battery pack with high level BMS , match the wire and connector follow your device

3. Flexible size for battery pack with your design require

4. Sort single cell with Excellent consistency in voltage capacity resistance before assemble, keep the high quality and low discharge

5. LiFePO4 battery pack assembled with cell LiFePO4 26650 3300mAh 3.2V

Application

LifePO4 battery pack for series of 12.8&V&14.8V can be widely used in:

Solar street light

back-up power for exploration instruments

smart dog chain, electronic scales

multi-parameter patient monitor

infusion pump

intelligent vacuum cleaner

portable speaker products

Medical instrument breathing machine

desktop POS machines

portable equipment

Specification

No.

Item

General Parameter

Remark
1

Rated Capacity

 9.9Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)
2

Minimal Rated

Capacity

 9.6Ah
3

Nominal Voltage

 12.8V
4

Cycle Life

 Higher than 60% of the Initial Capacity of the Cells

Charge: CC@0.2C to 14.6V, then CV till current to 0.02C

Rest: 30min.

Discharge: 0.2C to 10.0V

Temperature:20±5℃

Carry out 2000cycles
5

Discharge cut-off voltage

 10.0V

10.0V( recommended)
6

Charging cut-off voltage

 14.8V
7

Cell and assembly method

 IFR 26650 EC 3.3AH 4S3P
8

Connector

JST-VH-2P

Anode red cathode black

 100±5mm
9

Housing material

 PVC BLUE

No.

Item

General Parameter

Remark
9

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.02C

Charge time : Approx 7h
10

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V
11

Maximum Charge Current

 1C (0.2C Recommended)
12

Continuous Discharge Current

 1C
13

Operation Temperature Range

 Charge: 0~45℃

60±25%R.H.
Discharge: -10~60℃
14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃
15

Weight

 Approx/:1.08Kg
16

Max.Dimension

 Height/:70mm
Width/: 60mm
Length/: 160mm

Packing Manners

Individual package for each battery pack according of the international transportation rules ,

Each battery pack protected by thicken sponge bag and 4 pcs in one export document

12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS

Quality Control Process

Made the lifePO4 battery cell follow standard work flow then transfer the single cell to assemble workshop

Sort single cell with Excellent consistency in voltage capacity resistance before assemble,and control each assembled and pack detail during whole process

12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS

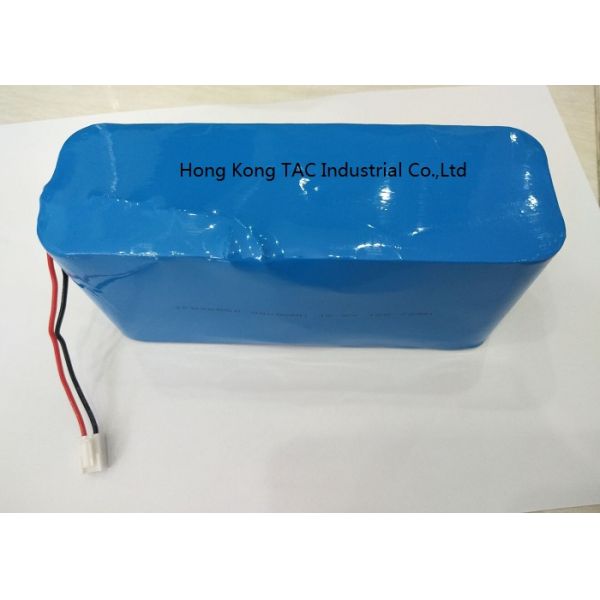

Battery Pack Picture

12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS

More Similar 12v Battery Pack Picture

12V LiFePO4 Battery Pack Deep Circle 26650 9.9AH For Back - Up Power Portable ESS

Delivery

7-10 days for samples

25-30 days for mass production base on the quantity more than 1000set

Storing the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per three months to prevent over-discharge.
