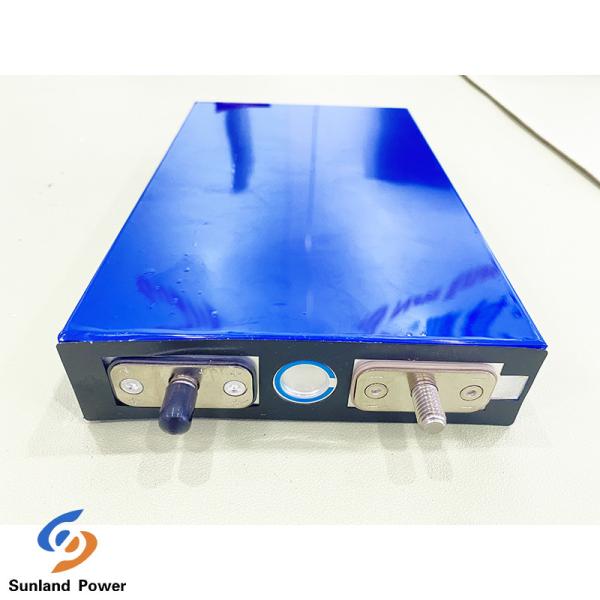

Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System
Specifications
Brand Name :
ODM OR OEM
Model Number :
GSP34135214F
Certification :
MSDS REACH ROHS UN38.3
Place of Origin :
GUANGZHOU
MOQ :
10PCA
Price :
50
Payment Terms :
L/C, T/T
Supply Ability :
100000PCS per month
Delivery Time :
14 days
Packaging Details :
4PCS per carton
Type :
LiFePO4 Battery
Voltage :
3.2V
Capacity :
100AH
Dimension :
34mm*135mm*214mm
Weigh :
2KG
Stud :
M8
Description

Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV / Solar Energy System

Feature:

1. Long cycle life≥7000 times

2. Stud and flat available

3. Application widely used

Parameter:

Single Cell Charge Current

(25℃)

 Max Continuous Charge Current

1.0C

Single Cell Discharge Current

(25℃)

 Max Continuous Discharge Current

1.0C
Module Charge Current (25℃) Max Continuous Charge Current 0.5C
Max Peak (50%SOC ,10s) 1.0C

Module Discharge Current (25℃)

Max Continuous Discharge Current 1.0C
Max Peak (50%SOC ,10s)

2.0C

No. Items Specifications

Remark

1

Material system

Lithium iron phosphate
2

Nominal Capacity

 100Ah

0.33C discharge at thermostatic room

(25±2℃)
3

Minimum Capacity

 100Ah
4

Nominal Voltage

 3.2V

Mean Operation Voltage
5

Delivery voltage

 3.00~3.30V (20%SOC) Within 10 days from Factory
6

Charge Voltage

 3.65V±0.03V By standard charge method

7

Standard charging method

0.33C constant current,3.65V constant

voltage charge to 3.65V,continue

charging till current deadline to ≤0.05C

at thermostatic room (25±2℃) ,rest for

/

8

Standard discharging method

0.33C constant current discharge to

2.5V, at thermostatic room (25±2℃) ,rest

for 30min after fully discharged.

/

9

Cell Internal Impedance

≤0.7mΩ

Internal resistance measured at AC

1KHZ after 50% charge

10

Weight

 2.04±0.05Kg

Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV / Solar Energy System


Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy SystemPounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy SystemPounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy SystemPounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV Solar Energy System

Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV / Solar Energy System

Storage temperature for a long time:

Do not storage exceed half year. Must charge once when storage for half year. Must charge the battery which with protect Circuit when storage for three months. (under normal storage conditions for long periods required storage capacity can lead to decay and fall of the life cycle,such as Environmental requirements exceeded the storage capacity will be further exacerbated decline and decay cycle life)
