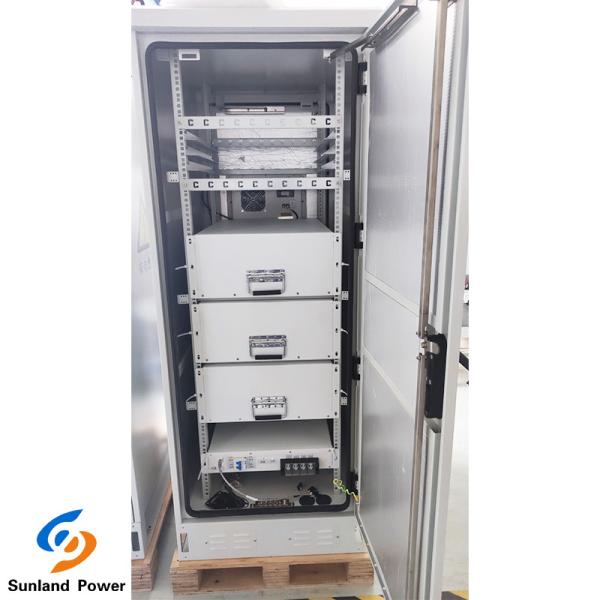

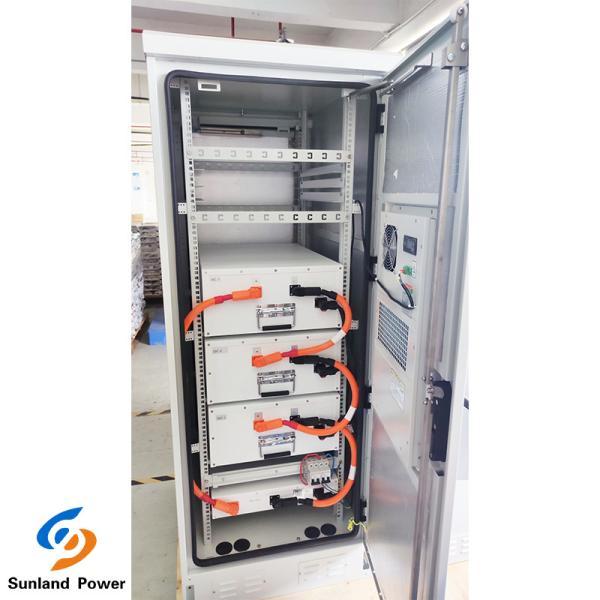

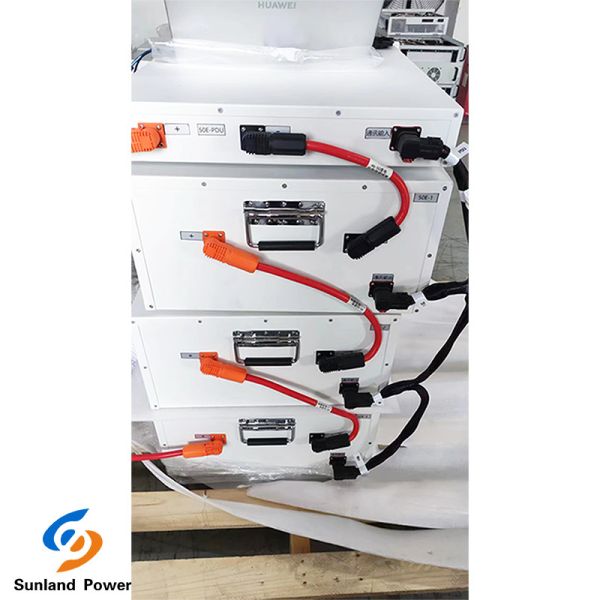

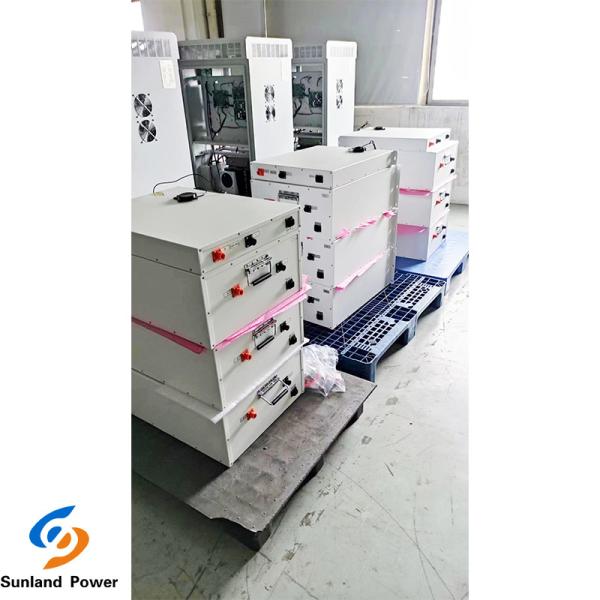

50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling
Specifications
Brand Name :
Sunland
Model Number :
RN-GSY50kWh
Certification :
MSDS,UN38.3,ROHS,REACH
Place of Origin :
GUANGZHOU
MOQ :
1PCS
Price :
1
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000PCS per month
Delivery Time :
14 days
Packaging Details :
1pcs / carton
Each Module :
76.8V 150AH
Weight of module :
150KG
Waterproof grade :
IP55
Module qty :
4
Assemble :
4S1P
Total Voltage :
230.4V
Description

50KWH Commercial ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling

Spec:

Item Parameter
Battery Module 76.8V 150AH
Module Qty 4
Battery Capacity 46KWH
Normal Voltage 230.4V
Working voltage Range 212.4V-255.6V
Dimension(mm) 850*650*1700
Weight 450kg
Battery Type LiFePO4
Assembling method Floor type
Class of protection IP55
Standard Charge and discharge current 200A
Working temperature -10-50℃
lifetime 10 years
System controller P720
Communication port RS485

50KWH Commercial ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling

50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling50KWH ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling

50KWH Commercial ESS Energy Storage System 230.4V 150AH LiFePO4 Battery With Cabinet Air Cooling

Cycle Life:

At the ambient temperature of 25 ± 2 ℃ , charge at the required current. When the battery voltage reaches the upper limit limit voltage of charging, change to constant voltage charging until the charging current is less than or equal to 0.02c, After standing for 0.5h, the current shall be discharged to 80% DOD, and the above steps shall be repeated for cyclic charging and discharging. When the discharge capacity for three consecutive times is less than 80% of the initial capacity, the life shall be terminated, and the cycle life shall be ≥ the required cycle times.
