Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling
Specifications
Brand Name :
GREAT POWER
Model Number :
Magna-UTL-373
Certification :
UN38.3
Place of Origin :
GUANGZHOU
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100PCS/Month
Delivery Time :
35 days
Packaging Details :
1pcs/pallet
Cabinet Dimensions :
D1300*W1300*H2373.5
IP Class :
IP55
Weight :
3850KG
Power :
373KWH
Capacity :
280AH
Rated Voltage :
1331.2V
Maximum Charge Current( :
173A
Maximum Discharge Current :
173A
Description

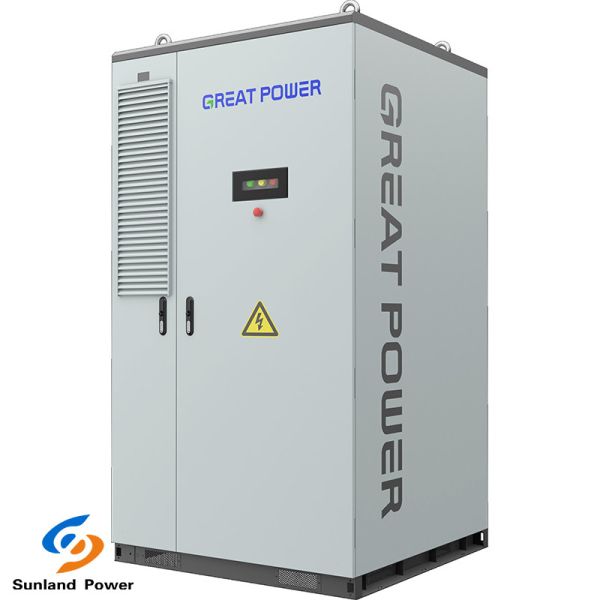

Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling

Outdoor cabinet applications

The 1331.2V280Ah outdoor cabinet energy storage system is independently developed by Great Power,It can be connected to the grid and
operated off-grid. In the energy storage link of smart grid, it can effectively regulate Power resources, balance the difference of Power consumption between day and night and in different seasons, adjust the surplus and shortage, and guarantee the safety of Power grid. It is an
important prerequisite for the application of renewable resources and an effective means to realize the intelligent management of power grid. The energy storage system consists of battery cluster, high voltage box, fire protection and liquid cooling system.

Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling

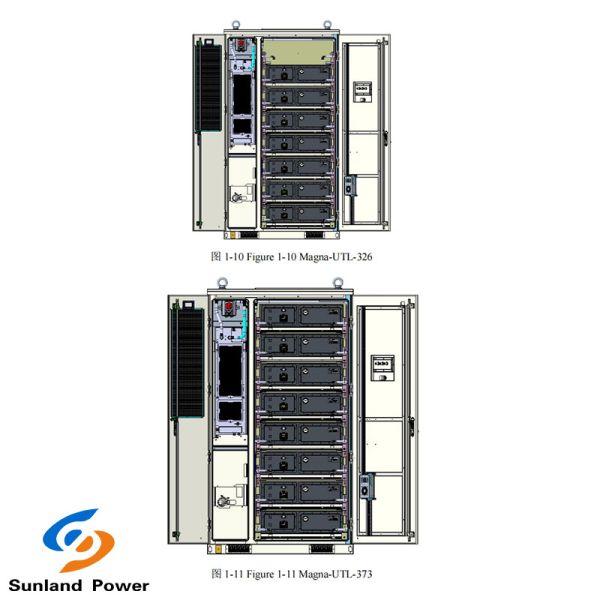

Picture:
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling

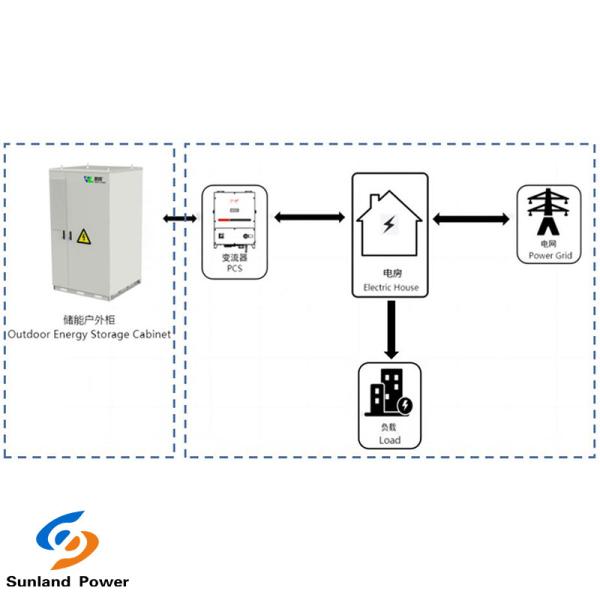

When the energy storage system is used in grid-connected mode, as shown below
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling

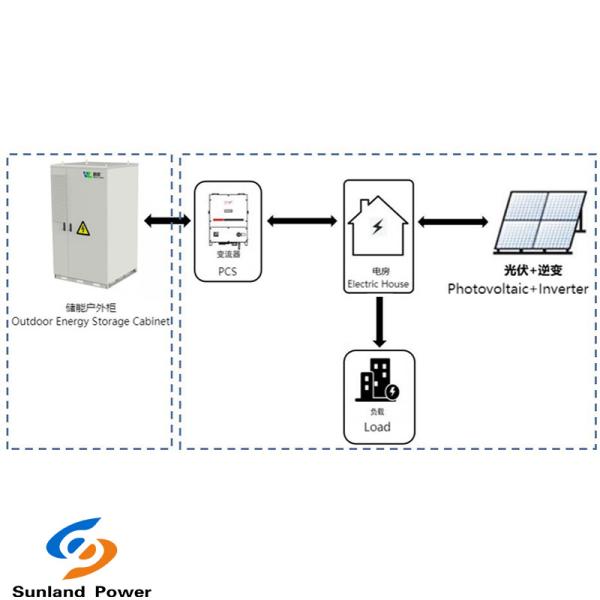

When the energy storage system is applied to off-grid mode, as shown the following connection.
Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid CoolingIndustrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling

Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling

Parameter:

Item

Magna- UTL-

47

Magna- UTL-

93

Magna- UTL-

140

Magna- UTL-

186

Magna- UTL-

233

Magna- UTL-

280

Magna- UTL-

326

Magna- UTL-

373

Remark

Model

Number

SLL02

C2-D1P

52S1R1

-A01

SLL02

C2-D1P

52S1R2

-A01

SLL02

C2-D1P

52S1R3

-A01

SLL02

C2-D1P

52S1R4

-A01

SLL02

C2-D1P

52S1R5

-A01

SLL02

C2-D1P

52S1R6

-A01

SLL02

C2-D1P

52S1R7

-A01

SLL02

C2-D1P

52S1R8

-A01

Series And

Parallel

1P52S

1P104S

1P156S

1P208S

1P260S

1P312S

1P364S

1P416S

Rated

capacity

(Ah)

280

Environmental temperature: 25℃±5℃;

Charge and

discharge rate: 0.5C；

Depth of

discharge :

DOD100%；

cell Voltage Range: 2.5V~3.65V/cell

Rated

Energy

(kWh)

46.59

93.18

139.78

186.37

232.96

279.55

326. 14

372.74

Available

Energy

(kWh)

45.05

90. 11

135.16

180.22

225.27

270.33

315.38

360.44

Industrial And Commercial Energy Storage 373KWH ESS System DC With Liquid Cooling.

More information,pls contact us
