Specifications
Brand Name :
Sunland
Model Number :
ICR18650 1S3P
Certification :
UL2054,UN38.3,MSDS,ROHS,REACH,CB,IEC62133
Place of Origin :
GUANGZHOU
MOQ :
100PCS
Price :
USD3.8/PCS
Payment Terms :
T/T, Paypal etc., Western Union
Supply Ability :
10000PCS/week
Delivery Time :
35 days
Packaging Details :
30PCS/carton
Voltage :
3.7V
Capacity :
7.5Ah
Dimension :
20.5mm*56mm*68mm
Material :
Lithiu ion Battery
Weight :
135g
BMS :
YES
Connector :
MX3.0-3P
NTC :
10K
Description

18650 Lithium Ion Battery 1S3P 3.7V 7500mAh Li-Ion Battery Packs Pass UL2054 certificate.

Advantage:

1. ICR18650 1S3P 3.7V 7.5AH pass UL2054 certificate.

2. Be widely used in light/lamp

3. The cell pass UL1642,CB,IEC62133,ROHS,REACH,2023/1542 certificate.

Cell electrical characteristics:

No.

Items

Test Method and Condition

Criteria

1

Thermal exposure test

Each fully charged cell, stabilized at room temperature, is placed in a circulating air-convection oven. The oven temperature is raised at a rate of 5 °C/min ± 2 °C/min to a temperature of 130 °C ± 2 °C. The cell remains at this temperature for 10 min before the test is discontinued.

No fire, No explosion

2

Low pressure

Each fully charged cell is placed in a vacuum chamber, in an ambient temperature of 20~25℃. Once the chamber has been sealed, its internal pressure is gradually reduced to a pressure equal to or less than 11.6 kPa (this simulates an altitude of 15240 m) held at that value for 6 h.

No leakage, No fire, No explosion

3.

Short test

The fully charged battery is to be short-circuited by connecting the positive and negative terminals of the battery with resistance load not exceed 100mΩ. Tests are to be conducted at room temperature 20~25℃.

No fire, No explosion

The Temperature of the Battery surface not exceeded than 150℃

4

Forced discharge test

A discharged cell is subjected to a reverse charge at 1C for 90 min.

No fire, No explosion

5

Over charge test

After standard charge, continue to charge with a constant voltage 4.6V per a cell, holding 8h.

No leakage, No fire, No explosion

6

Soak Test

Put the batteries into clean water, be soaked for 24 hours.

No break, No fire

18650 Lithium Ion Battery 1S3P 3.7V 7500mAh Li-Ion Battery Packs Pass UL2054 certificate.

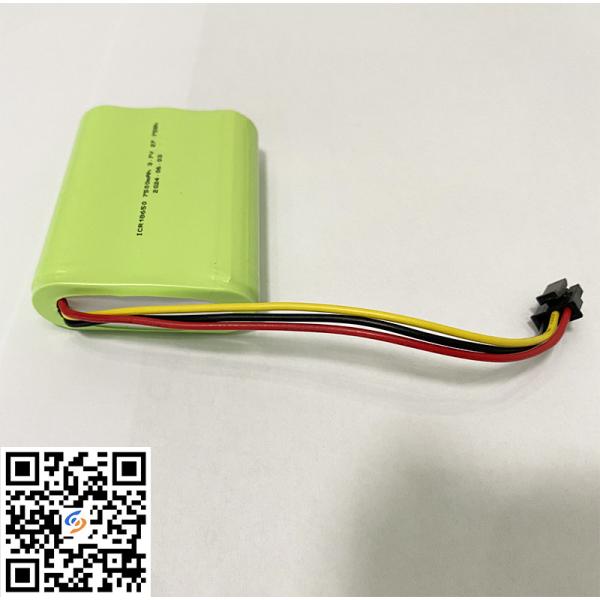

Pictiure:
18650 Lithium Ion Battery 1S3P 3.7V 7500mAh Li-Ion Battery Packs Pass UL2054 Certificate18650 Lithium Ion Battery 1S3P 3.7V 7500mAh Li-Ion Battery Packs Pass UL2054 Certificate
18650 Lithium Ion Battery 1S3P 3.7V 7500mAh Li-Ion Battery Packs Pass UL2054 certificate.
Battery pack spec:
No. Items Specifications

Remark

1

Capacity for assembled cell

discharging by 0.2C

≥7330mAh

Standard discharging method

2

Battery Voltage

3.7V~3.9V

Delivery voltage, Within 10 days from Factory

3

Standard charge condition

Charge with 0.2C constant current and 4.2Vconstant voltage, charge to 4.2V,continue charging till current declineto ≤0.01C

Charge voltage:4.2V±0.02V

Charge current:0.2C

4

Maximum charge current

4A

For continuous charging mod

5

Maximum discharge current

4A

For continuous discharge mod

6

Standard discharging method

0.2C constant current discharge to 3.0V,

7

Internal Impedance

Assemblage Impedance≤160mΩ

Measure two sides of the drawing line after assembling.
