Description

Low-voltage rack-mounted household energy storage (3U)

1. Model Description

1.1 Battery Type: LiFePO4
1.2 Battery Model: HX-LTL-51.2/100

2. Basic Parameters

No. Item Specification Remarks
Cell Parameters
1 Battery Type Prismatic LFP Battery with aluminum shell -
2 Rated Voltage/Capacity 3.2V/100Ah -
3 Voltage Range 2.00V - 3.65V -
4 Weight 2kg -
5 Dimensions 173.9 × 48.8 × 115.6 mm ± 0.5mm (L × T × H) -
6 Negative Material LiFePO4 -
7 Positive Material Graphite -
8 Electrolyte Material LiPF6 -
9 Operating Temperature Charging: 0℃ to 55℃, Discharging: -20℃ to 55℃ -
10 Storage Temperature 0℃ to 45℃ -
11 Cycle Life

> 4000 cycles (0.5C, 25℃, 80% Depth of Discharge)

Basic Parameters of Battery System

No. Item Specification Remarks
1 Nominal Voltage 51.2V -
2 Configuration 16S1P (16 cells in series) -
3 Voltage Range 40V - 58.4V <br> Cell Voltage Range: 2.5V - 3.65V -
4 Nominal Capacity 100Ah -
5 Standard Charge/Discharge Current 50A -
6 Nominal Energy 5120Wh -
7 Maximum Charge Current 100A (1C) -
8 Maximum Continuous Discharge Current 100A (1C) -
9 Peak Discharge Current 200A <br> Duration: 30s -
10 Cycle Life > 4000 cycles <br> (80% Depth of Discharge, 0.5C, 25℃) -
11 Total Weight 46.0kg -
12 Relative Humidity 10% - 90% -
13 Cooling Method Natural Cooling -

14

 Operating Temperature

<br> Charging: 0℃ - 55℃ <br> Discharging: -20℃

BMS Specifications

Item Content Standard
Charge/Discharge Ports Shared -
Communication RS485/CAN -

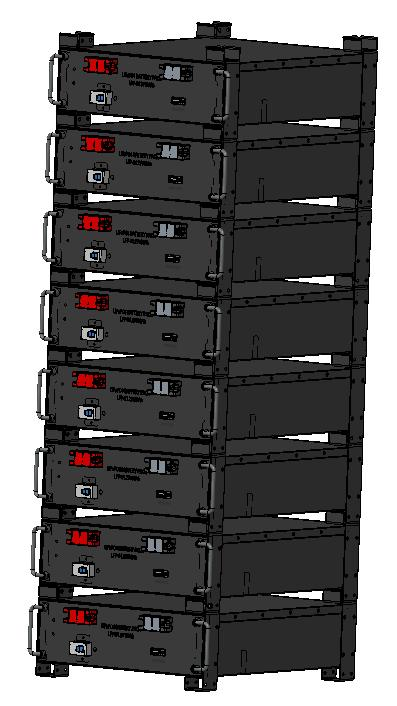

Parallel Connection Capability ≤16 units -
Series Connection Capability Not applicable -
Standard Current - -
Charge Current ≤100A -
Discharge Current ≤100A -
Overcharge Protection - -
Overcharge Protection Voltage 3.75 ± 0.03V -
Overcharge Protection Delay 1.0s -
Overcharge Protection Release Voltage 3.55 ± 0.05V -
Overcharge Protection Release Condition Disconnect charger -
Maximum Charge Voltage 3.65 ± 0.05V -
Overdischarge Protection - -
Overdischarge Protection Voltage 2.2 ± 0.05V -
Overdischarge Protection Delay 1s -
Overdischarge Protection Release Voltage 2.7 ± 0.10V -
Overcurrent Protection - -
Overcurrent Protection Current 900 ± 200A -
Overcurrent Protection Delay 10ms -
Overcurrent Protection Release Condition Disconnect load -
Short Circuit Protection YES -

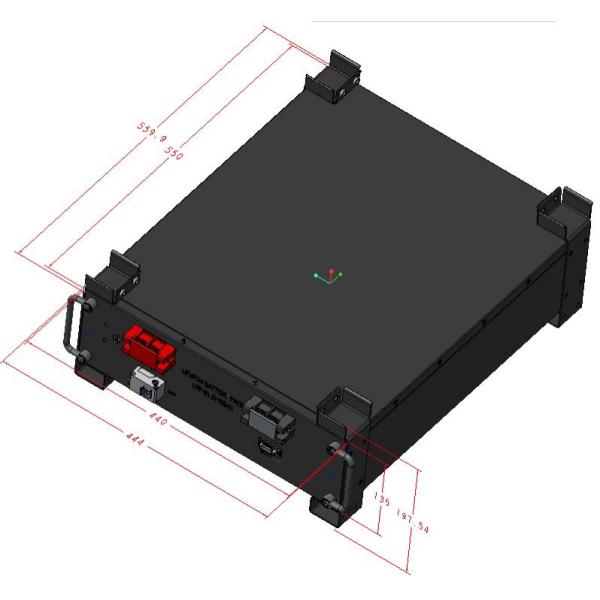

4. Product Appearance and Dimensions

Dimensions (L × W × H): 550 ± 1 mm × 440 ± 1 mm × 135 ± 1 mm

3U Low-Voltage Intelligent Control Home Energy Storage All-in-One Butler LiFePO4 51.2V 50A 5120Wh16S1P Prismatic LFP Battery with aluminum shell 3.2V/100Ah cycle life of 4000 cycles3U Low-Voltage Intelligent Control Home Energy Storage All-in-One Butler LiFePO4 51.2V 50A 5120Wh16S1P Prismatic LFP Battery with aluminum shell 3.2V/100Ah cycle life of 4000 cycles
